QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

48" Quest X-Series Zero-Turn Mower, Kohler

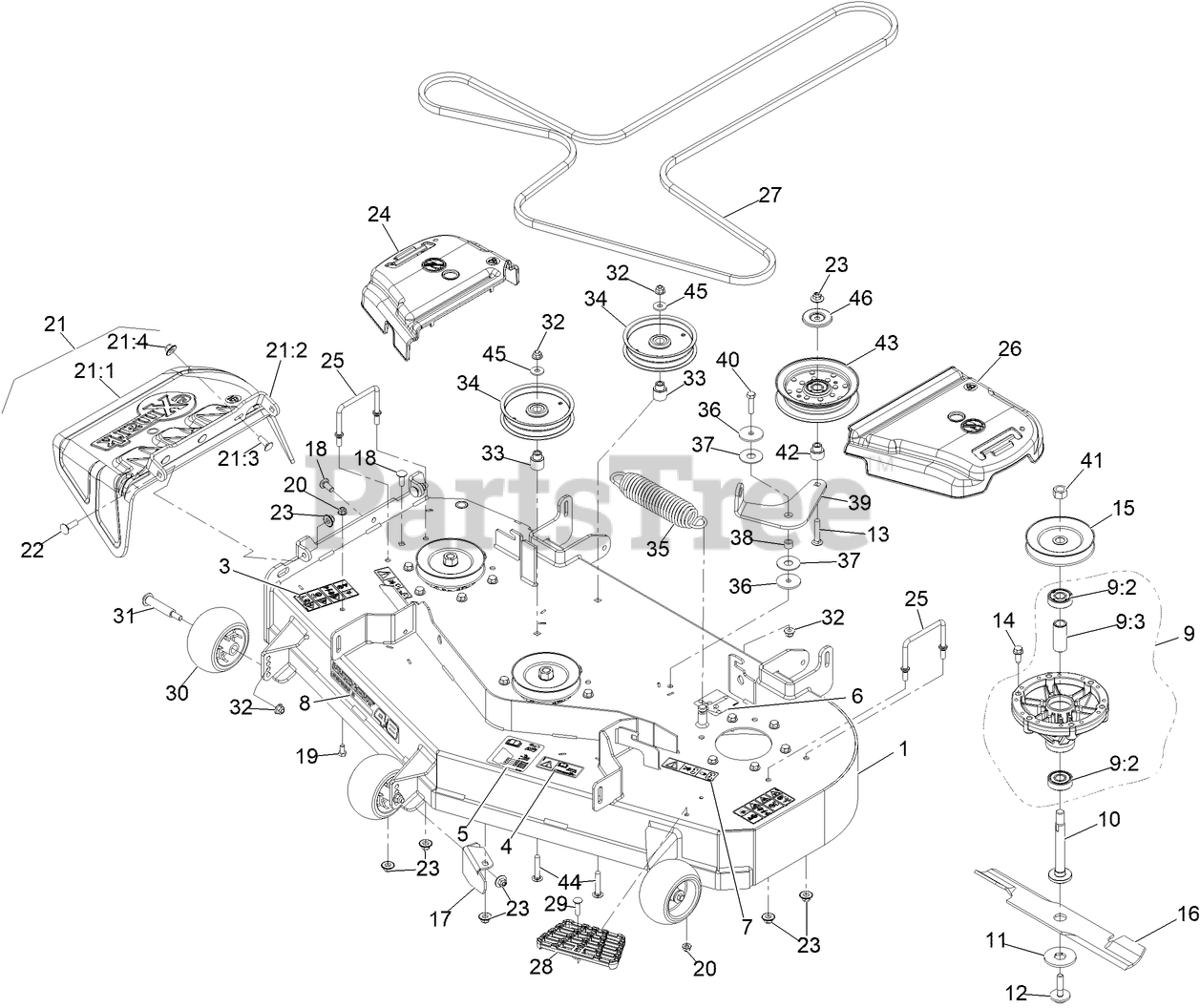

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-9103

ASM-Deck W/Decals 483

$1942.99

$

Usually ships in 0 days

0

3

Exmark 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, only 4 left!

0

4

Exmark 116-8283

DECAL-TORQUE, BOLT

$1.99

$

In Stock, Qty 16

0

5

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$7.49

$

In Stock, only 2 left!

0

6

Exmark 142-9946

DECAL-BELT ROUTING

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

8

Exmark 126-6746

DECAL-ULTRACUT 48 SERIES 3

$8.49

$

In Stock, Qty 5

0

9

Exmark 126-4627

ASM-CUTTER HOUSING

$136.99

$

In Stock, only 2 left!

0

9:2

Exmark 116-4004

BEARING

$20.99

$

In Stock, Qty 20+

0

9:3

Exmark 116-4876

SPACER-BEARING

$8.49

$

In Stock, Qty 12

0

10

Exmark 109-7431

SPINDLE-HEX PILOT

$39.99

$

In Stock, Qty 20+

0

11

Exmark 126-4530

WASHER-HEX BLADE DRIVE

$5.99

$

In Stock, Qty 20+

0

12

Exmark 116-0005

BOLT-BLADE, SEM

$8.49

$

In Stock, Qty 20+

0

13

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

14

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 15

0

15

Exmark 146-0499

Sheave-Blade Drive 4.77

$49.99

$

Usually ships in 0 days

0

16

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

$33.99

$

In Stock, Qty 20+

0

16

Exmark 109-6391

USE 109-6391-S
(Superseded to 109-6391-S)

Note: Optional Equipment

$35.99

$

In Stock, Qty 15

0

16

Exmark 103-6386

USE 103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$33.99

$

In Stock, Qty 20+

0

16

Exmark 116-5177

USE 116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

16

Exmark 103-6381

USE 103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

0

16

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

Note: Optional Equipment

$33.99

$

In Stock, Qty 20+

0

16

Exmark 103-6391

USE 103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

17

Exmark 116-0680-01

BAFFLE,DISCHARGE 483

$35.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-7188

ASM,DISCHARGE CHUTE

$123.99

$

In Stock, only 1 left!

0

21:1

Exmark 109-2738

CHUTE,DISCHARGE

$86.99

$

In Stock, Qty 10

0

21:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$57.99

$

In Stock, only 2 left!

0

21:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

23

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

24

Exmark 109-6935

COVER-BELT, RH

$41.99

$

In Stock, Qty 8

0

25

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 4 left!

0

26

Exmark 109-6936

COVER-BELT, LH

$41.99

$

In Stock, Qty 14

0

27

Exmark 126-0783

USE 126-0783-SL
(Superseded to 126-0783-SL)

$124.99

$

In Stock, Qty 10

0

28

Exmark 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

29

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

31

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

32

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Exmark 142-9772

BUSHING-IDLER

$3.99

$

Usually ships in 3-6 days

0

34

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

0

35

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

36

Exmark 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

37

Exmark 146-0909

Washer

$4.49

$

Usually ships in 0 days

0

38

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 146-0303

Arm-Idler

$31.99

$

Usually ships in 0 days

0

40

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

42

Exmark 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

43

Exmark 126-9196

IDLER-PULLEY, FLAT

$64.99

$

In Stock, Qty 20+

0

44

Exmark 117-9971

BOLT-CARRIAGE

$4.49

$

Usually ships in 3-6 days

0

45

Exmark 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

46

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0
