QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Deck Lift Assembly Parts Diagram

48" Quest X-Series Zero-Turn Mower, Kohler

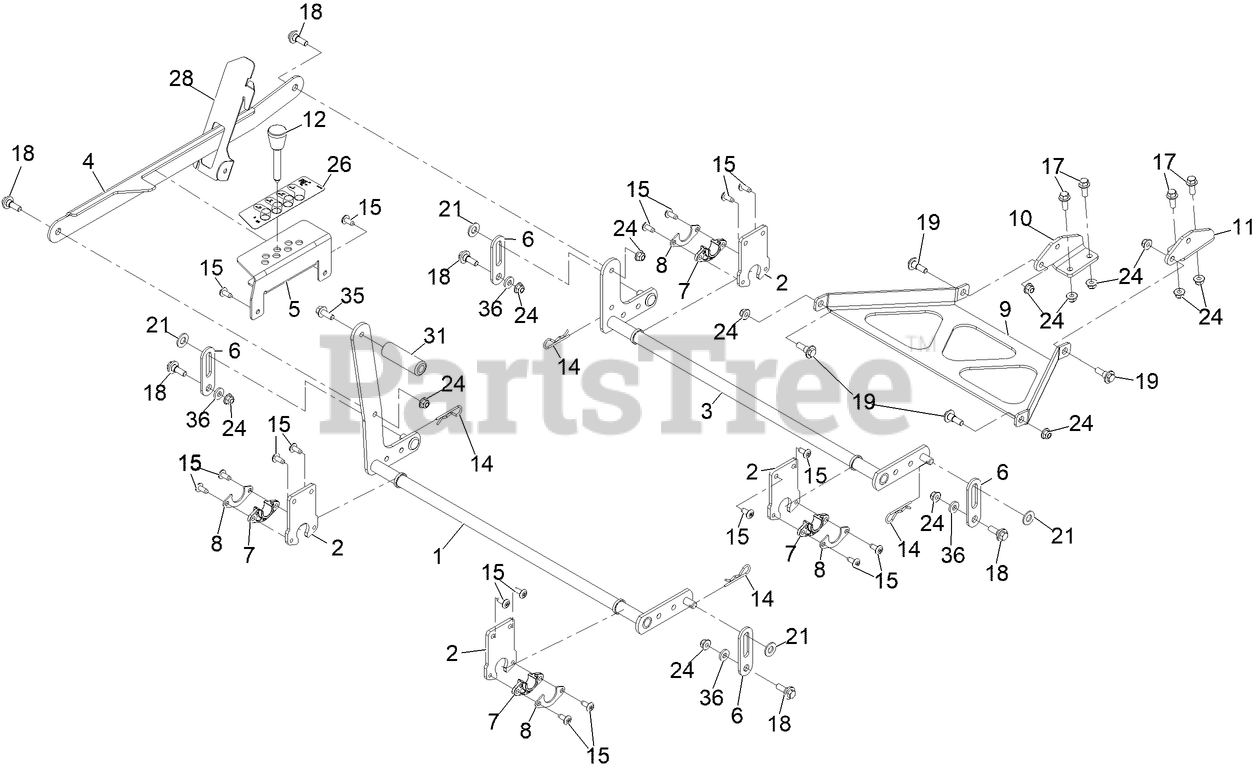

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 138-2503-03

PIVOT FRONT ASM

$83.99

$

Usually ships in 3-6 days

0

2

Exmark 138-9804-03

SUPPORT-CROSS, SHAFT

$11.99

$

Usually ships in 3-6 days

0

3

Exmark 138-2504-03

REAR PIVOT ASM

$59.99

$

Usually ships in 3-6 days

0

4

Exmark 137-5091-03

LINK-HOC

$43.99

$

Usually ships in 3-6 days

0

5

Exmark 137-5092-03

BRACKET-HOC

$32.99

$

Usually ships in 3-6 days

0

6

Exmark 137-7001-03

LINK-DECKLIFT

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 139-5872

BEARING-FLANGE

$

$

Not available

8

Exmark 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 3 left!

0

9

Exmark 142-8972-03

Bracket-Strut

$84.99

$

0

10

Exmark 139-3200-01

Mount-Pan, LH

$24.99

$

Usually ships in 3-6 days

0

11

Exmark 139-3201-01

Mount-Pan, RH

$24.99

$

Usually ships in 3-6 days

0

12

Exmark 140-2146

HOC PIN ASM

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

15

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 7

0

18

Exmark 137-9847

SCREW-SHOULDER

$1.49

$

In Stock, Qty 10

0

19

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

21

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 139-5892

DECAL-HOC

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 139-5804-03

BRACKET-HOC

$25.99

$

Usually ships in 3-6 days

0

31

Exmark 139-7452

PEDAL-FOOT LIFT

$20.99

$

In Stock, only 1 left!

0

35

Exmark 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 10

0

36

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 19

0
