QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Diagram

48" Quest X-Series Zero-Turn Mower, Kohler

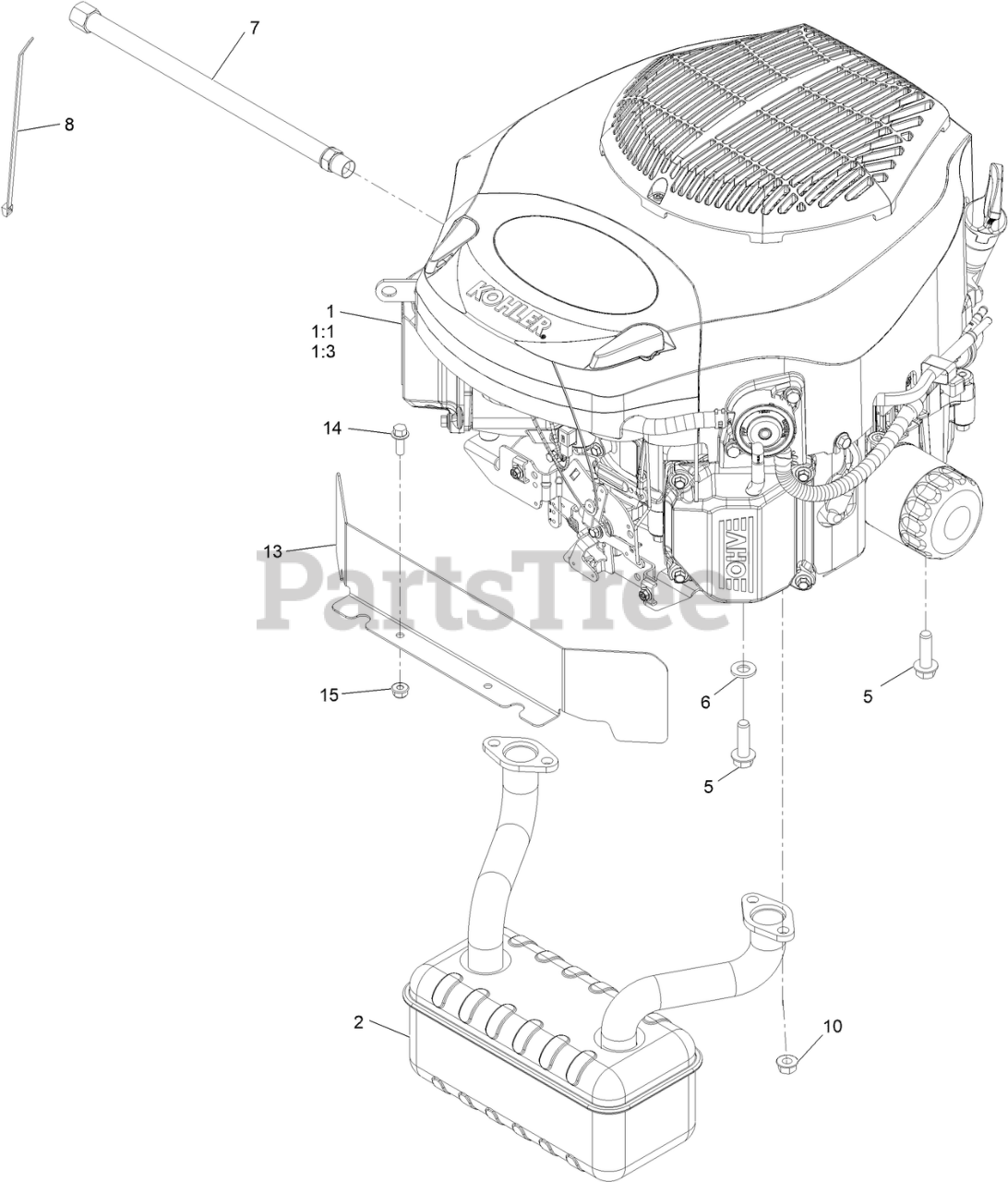

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler, Kt735

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Exmark 110-6697

GASKET-EXHAUST

Note: Not illustrated

$

$

Not available

1:3

Exmark 281-2

PLUG-PIPE, SQH

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 147-5194

Muffler

$128.99

$

Usually ships in 0 days

0

5

Exmark 32144-109

SCREW-THD

$5.49

$

In Stock, only 3 left!

0

6

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Exmark 117-1261

HOSE-DRAIN, OIL

$31.99

$

In Stock, only 2 left!

0

8

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 10

0

10

Exmark 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

13

Exmark 147-5195-03

SHIELD-HEAT

$27.99

$

Usually ships in 3-6 days

0

14

Exmark 120-9678

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 119-4040

SCREW-SHOULDER

$0.99

$

In Stock, Qty 11

0
