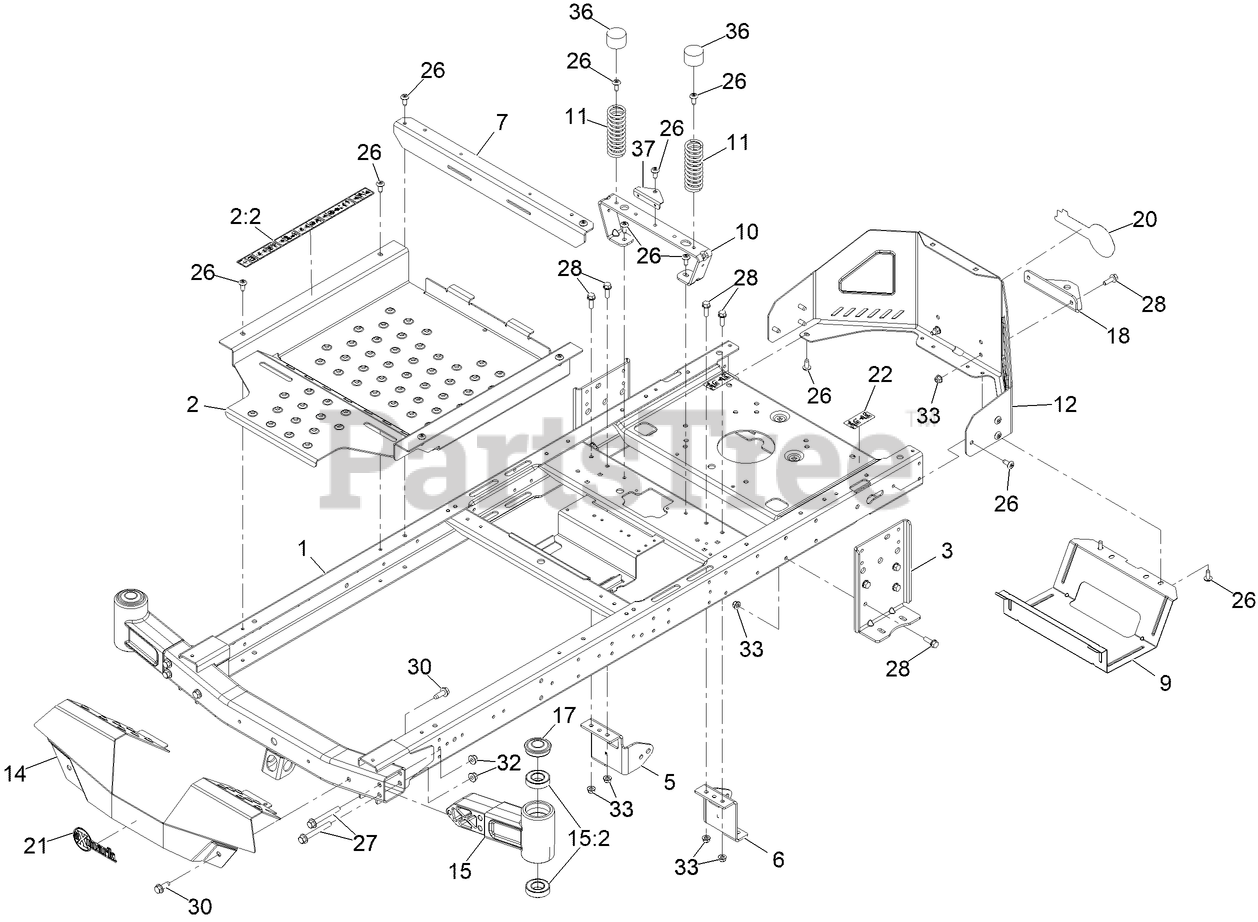

QZX735GKC48300 - Exmark 48" Quest X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Main Frame Assembly Parts Diagram

48" Quest X-Series Zero-Turn Mower, Kohler

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 137-9820-05

FRAME ASM - RIVETED/WELDED

$444.99

$

Usually ships in 3-6 days

0

2

Exmark 142-9966

Pan-Floor ASM

$314.99

$

0

2:2

Exmark 144-5288

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0

3

Exmark 138-7520-01

PLATE-MOUNT, HYDRO

$25.99

$

Usually ships in 3-6 days

0

5

Exmark 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 139-3211-01

Mount-Hydro, Front (Left)

$14.99

$

In Stock, only 2 left!

0

7

Exmark 138-9791-05

BRACE-CROSS

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 138-0867-03

GUARD-MUFFLER

$31.99

$

Usually ships in 3-6 days

0

10

Exmark 138-6036-03

SUPPORT-SEAT

$20.99

$

Usually ships in 3-6 days

0

11

Exmark 138-2548

SPRING-COMPRESSION

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 138-9820-05

GUARD-ENGINE

$90.99

$

Usually ships in 3-6 days

0

14

Exmark 138-9827-01

FOOTREST

$66.99

$

Usually ships in 3-6 days

0

15

Exmark 142-5809

AXLE-STUB

$90.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

17

Exmark 138-7200

Cap-Grease

$5.49

$

In Stock, only 1 left!

0

18

Exmark 117-1232-03

BRACKET-HITCH

$28.99

$

In Stock, only 1 left!

0

20

Exmark 142-5858

DECAL-EXMARK LOGO

$5.99

$

Usually ships in 3-6 days

0

21

Exmark 142-5841

DECAL-EXMARK LOGO

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 142-5854

DECAL-BYPASS

$1.99

$

Usually ships in 3-6 days

0

26

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

27

Exmark 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

28

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

30

Exmark 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Exmark 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

37

Exmark 146-0854-03

BRACKET-RELAY

$7.49

$

Usually ships in 3-6 days

0
