R-10 (132-521B190) - White Outdoor 30" Rear-Engine Riding Mower (1992) Deck Lift Ass'y Parts Diagram

30" Rear-Engine Riding Mower

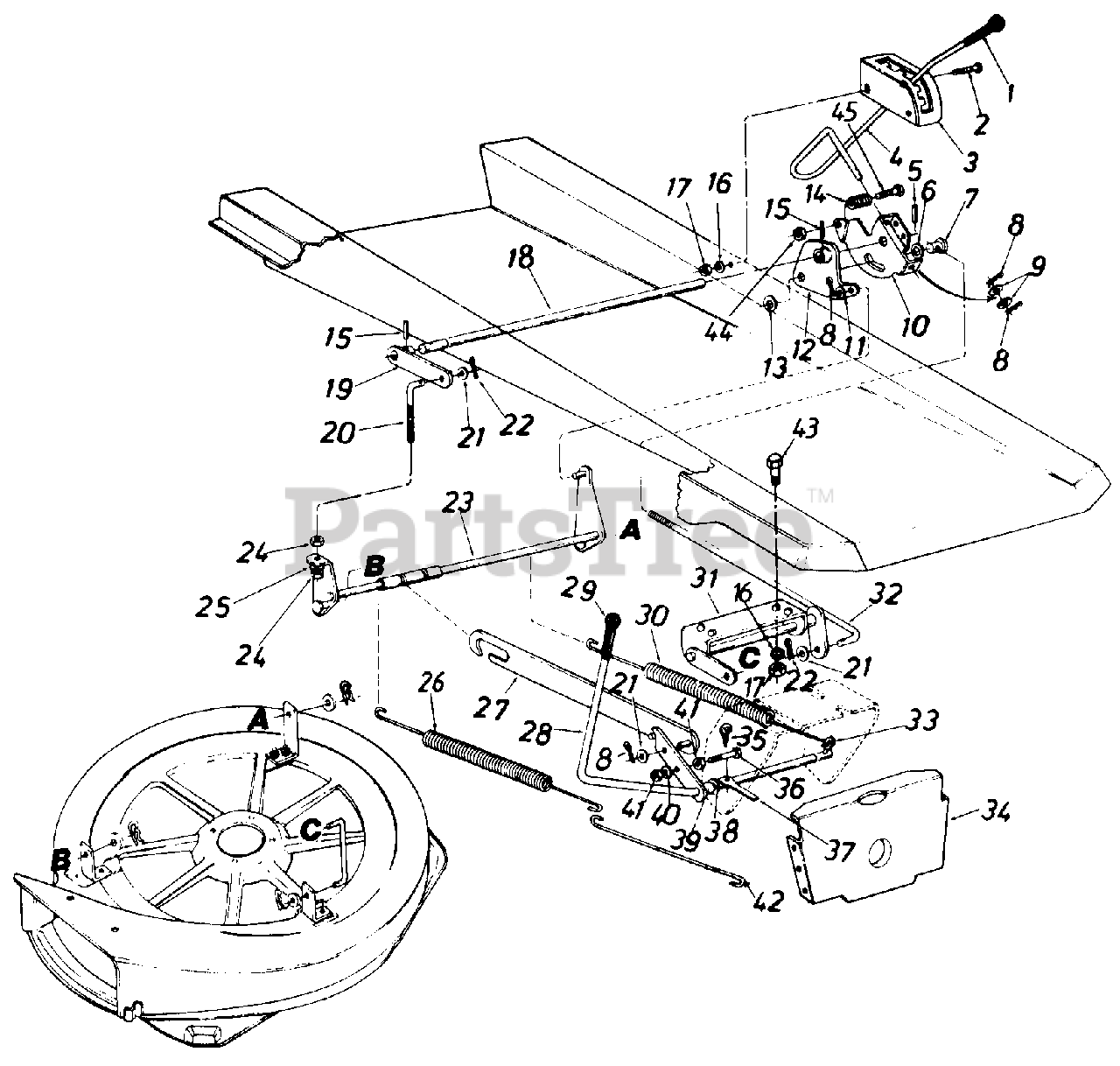

Deck Lift Ass'y Parts Diagram

  • Title

1

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

2

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg

$4.49

$

In Stock, only 2 left!

0

3

White Outdoor 16397

Deck Index Bracket

Variations

White Outdoor 16397-0637

No Longer Available BRACKET-DECK INDEX - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 747-0651

Deck Lift Handle

$

$

Not available

5

White Outdoor 715-0134

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

6

White Outdoor 736-0187

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-0749

Adj. Ferrule Deck Lift Handle

$

$

Not available

8

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 16401A

Deck Lift Handle Retainer

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 16401A-0637

No Longer Available RETAINER-DECK HAND - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 15578

Deck Lift Brkt. Ass'y. - L.H.

$

$

Not available

13

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 732-0711

Compression Spring, 5" Dia. x .9" Lg.

$

$

Not available

15

White Outdoor 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

18

White Outdoor 738-0550

Rear Hgt. Adj. Shaft

$

$

Not available

19

White Outdoor 15609A

Deck Lift Brkt. Ass'y. - R.H.

$

$

Not available

20

White Outdoor 710-0866

Deck Adj. Scr. 3/8-16 Thd.

$

$

Not available

21

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

23

15600A

Deck Link Ass'y. - Rear

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

26

White Outdoor 732-0540

Extension Spring 13.84" Lg.

$

$

Not available

27

White Outdoor 15644A

Deck Drive Control Bracket

Variations

White Outdoor 15644A-0637

BRACKET ASSY-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 15568A

Blade Engagement Lever Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

29

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

30

White Outdoor 732-0540

Extension Spring .73" O.D. x 13.84" Lg.

$

$

Not available

31

White Outdoor 15573A

Deck Lift Ass'y. - Front

$

$

Not available

32

White Outdoor 747-0426

Deck Lift Connecting Rod

$

$

Not available

33

White Outdoor 711-0753

Clevis Pin Special .250" Dia.

$

$

Not available

34

White Outdoor 15613A

Pivot Bar Bracket

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 15613A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

35

710-3243

Hex TT-Tap Scr. #12-24 x .5" Lg.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

36

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1.50" Lg. (Grade 5)
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

37

White Outdoor 732-0435

Switch Actuator

$

$

Not available

38

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$3.99

$

In Stock, only 2 left!

0

39

White Outdoor 750-0760

Spacer .511" I.D. x .70" O.D. x .38" Lg.

$

$

Not available

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

42

White Outdoor 732-0451B

Spring Hook

$

$

Not available

43

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

45

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0
