R-10 (134B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1994) Transaxle Parts Diagram

30" Rear-Engine Riding Mower

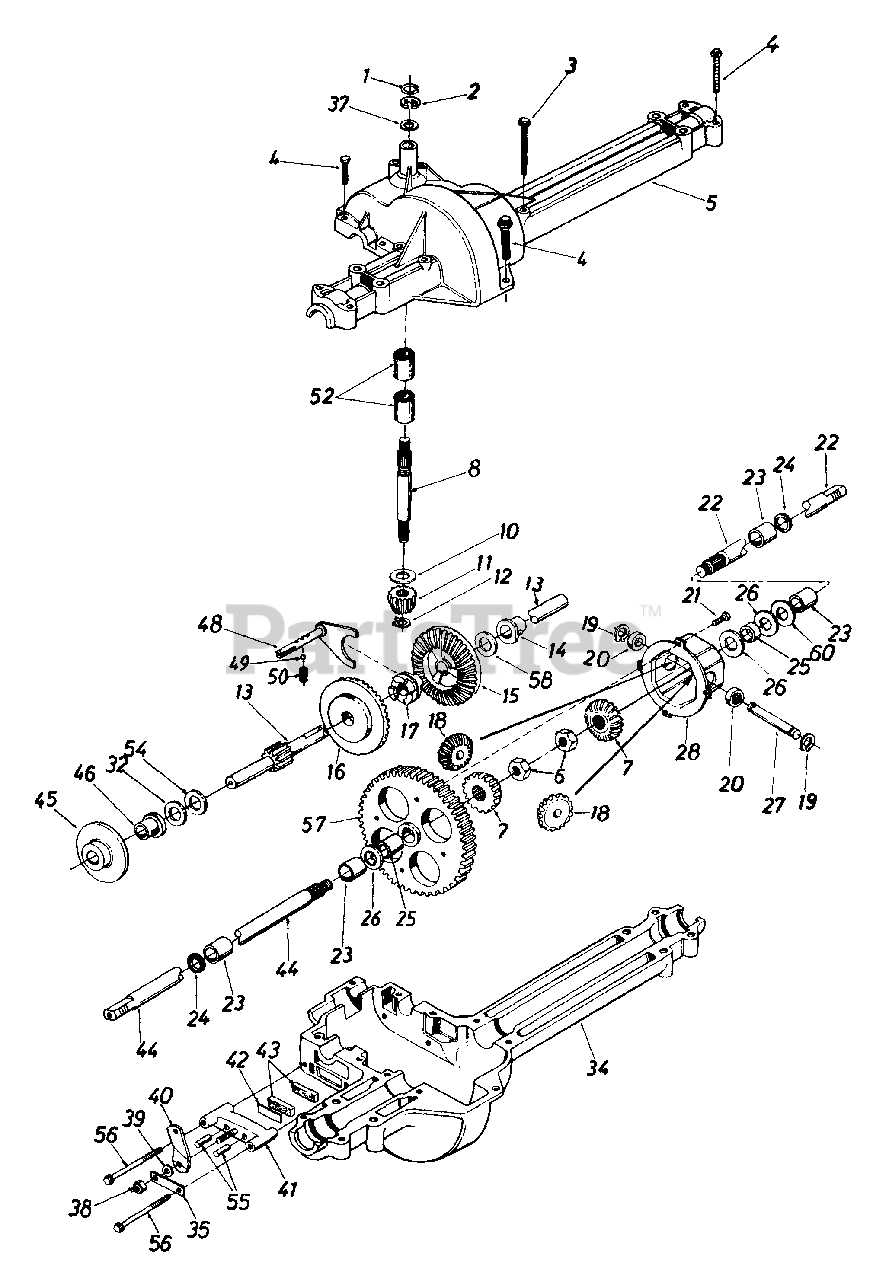

Transaxle Parts Diagram

  • Title

1

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 1 left!

0

2

MTD 916-0231

E - Ring
(Superseded to 716-0231)

$

$

Not available

3

MTD 710-1026

Hex Bolt 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 20+

0

4

MTD 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 20+

0

5

MTD 753-0678

Upper Housing

$

$

Not available

6

MTD 712-0200A

Hex Jam Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

7

MTD 917-1019

Miter Gear

$29.99

$

Usually ships in 3-6 days

0

8

MTD 711-0861

Input Shaft

$

$

Not available

10

MTD 936-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

MTD 917-0633

Pinion Input 14T

$22.99

$

Usually ships in 3-6 days

0

12

MTD 916-0171

Retaining Ring

$5.99

$

Usually ships in 3-6 days

0

13

MTD 753-0596

Drive Shaft - L.H. Brake

$103.99

$

Usually ships in 3-6 days

0

14

MTD 941-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.

$11.99

$

In Stock, Qty 18

0

15

MTD 917-1362

Bevel Gear 42T - Small I.D.

$51.99

$

In Stock, only 3 left!

0

16

MTD 917-1363

Bevel Gear 42T - Large I.D.

$51.99

$

In Stock, only 2 left!

0

17

MTD 718-0228

Clutch Collar

$25.99

$

In Stock, Qty 5

0

18

MTD 717-1020

Miter Gear 15T (H.D.)

$

$

Not available

19

MTD 916-0184

Snap Ring

$4.99

$

Usually ships in 3-6 days

0

20

MTD 941-0589

Thrust Bearing

$6.49

$

Usually ships in 3-6 days

0

21

MTD 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

22

MTD 717-0771A

Axle R.H.

$

$

Not available

23

MTD 941-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 20+

0

24

MTD 921-0179

Oil Seal 3/4" I.D.
(Superseded to 721-0179)

$

$

Not available

25

MTD 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

26

MTD 936-0445

Fl-Wash..760" I.D. x 1.5" O.D.
(Superseded to 736-0445)

$

$

Not available

27

MTD 711-0918

Cross Shaft

$15.99

$

Usually ships in 3-6 days

0

28

MTD 918-04089

Differential Can Ass'y.

$

$

Not available

32

MTD 936-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.
(Superseded to 736-0495)

$4.49

$

In Stock, Qty 16

0

32

MTD 936-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0494

Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk.

$4.99

$

In Stock, Qty 8

0

32

MTD 936-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 15

0

34

MTD 719-0313B

Lower Housing

$154.99

$

Usually ships in 3-6 days

0

35

MTD 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

37

MTD 936-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 15

0

38

MTD 912-0273

Hex Nut 5/16-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

39

MTD 736-0371

Fl-Wash..344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 7

0

40

MTD 717-0772B

Actuating Arm

$12.99

$

Usually ships in 3-6 days

0

41

MTD 961-0198A

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

42

MTD 917-0682

Puck Plate

$9.99

$

In Stock, Qty 7

0

43

MTD 917-0678

Brake Puck

$7.49

$

In Stock, Qty 20+

0

44

MTD 917-0765

Axle L.H.

$

$

Not available

45

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 4 left!

0

46

MTD 941-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.

$10.99

$

In Stock, Qty 20+

0

48

MTD 911-0011

Shift Fork Ass'y.

$42.99

$

In Stock, Qty 20+

0

49

MTD 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

MTD 932-0863

Spring Detent
(Superseded to 932-05125)

$4.49

$

In Stock, Qty 7

0

52

MTD 941-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.

$18.99

$

In Stock, Qty 5

0

54

MTD 936-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

55

MTD 941-0343

Actuating Pin 5/16" Dia.
(Superseded to 741-0343)

$

$

Not available

56

MTD 710-1206

Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd.

$7.49

$

In Stock, Qty 9

0

57

MTD 917-04292

Differential Gear 58T

$

$

Not available

58

MTD 936-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

58

MTD 936-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.
(Superseded to 736-0495)

$4.49

$

In Stock, Qty 16

0

60

MTD 936-0492

Fl-Wash..76" I.D. x 1.5" O.D. x .010" Thk.

$6.99

$

Usually ships in 3-6 days

0

60

MTD 936-0493

Fl-Wash..76" I.D. x 1.5" O.D. x .020" Thk.

$4.99

$

Usually ships in 3-6 days

0

60

MTD 936-0351

Fl-Wash..76" I.D. x 1.5" O.D. x .030" Thk.
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

60

MTD 936-0445

Fl-Wash..76" I.D. x 1.5" O.D. x .060" Thk.
(Superseded to 736-0445)

$

$

Not available
