R-10 (135B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1995) Gear Selector, Pulley's And Transaxle Parts Diagram

30" Rear-Engine Riding Mower

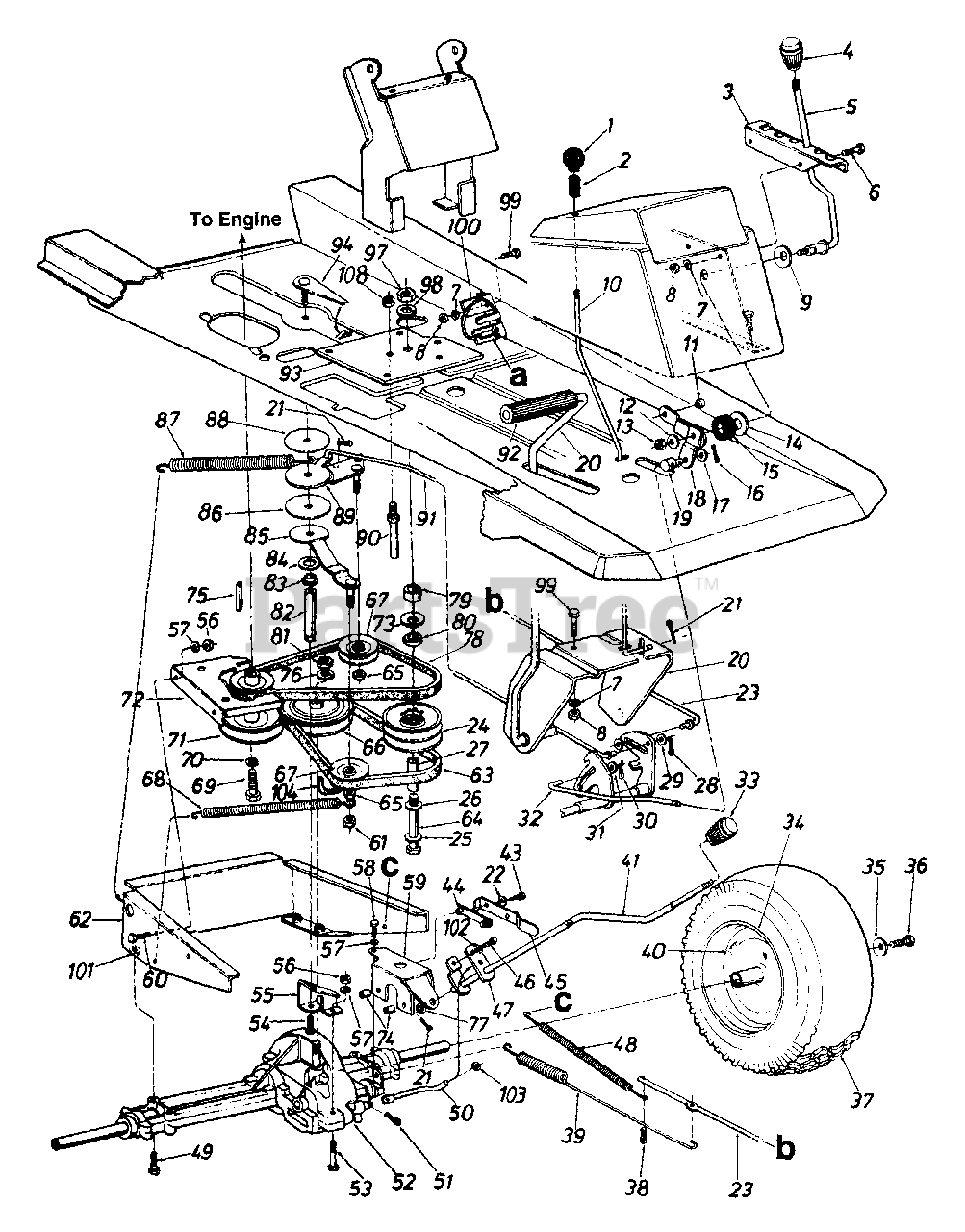

Gear Selector, Pulley's And Transaxle Parts Diagram

  • Title

1

White Outdoor 720-0187

Ball Knob 1/4-20 Thd. 1.25"

$9.99

$

Usually ships in 3-6 days

0

2

White Outdoor 732-0437

Compression Spring

$9.49

$

In Stock, only 1 left!

0

3

White Outdoor 16389

Speed Index Bracket

Variations

White Outdoor 16389-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16389-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16389-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

5

White Outdoor 747-0652

Speed Control Lever

$

$

Not available

6

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd."
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 736-0253

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 747-0450

Brake Locking Rod

$

$

Not available

11

White Outdoor 731-0493

Cap

$

$

Not available

12

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .08"

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0154

Fl-Wash. .50" I.D. x 1.5" O.D.

$

$

Not available

15

735-0129

Rubber Washer

$

$

Not available

16

White Outdoor 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.49

$

Usually ships in 3-6 days

0

18

White Outdoor 16396

Speed Control Lever Brkt. Ass'y.

$

$

Not available

19

White Outdoor 711-0677

Ferrule - Engagement
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

20

White Outdoor 17677

Clutch/Brake Pedal Ass'y.

$

$

Not available

21

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 736-0426

Plastic Washer

$

$

Not available

23

White Outdoor 747-0431

Brake Rod

$

$

Not available

24

White Outdoor 717-0884

Variable Speed Pulley Ass'y.

$203.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0247

Fl-Wash. .4" I.D. x 1.25" O.D.

$8.99

$

In Stock, Qty 20+

0

26

White Outdoor 741-0405

Thrust Brg. 1.25" O.D. x .56" I.D.
(Superseded to 941-0405)

$

$

Not available

27

White Outdoor 750-0705

Spacer Sleeve 2.71"

$

$

Not available

28

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.25"

$3.99

$

In Stock, only 1 left!

0

29

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .60" O.D.

$6.49

$

Usually ships in 3-6 days

0

30

White Outdoor 714-0104

Intern. Cot-Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .60" O.D.

$6.49

$

Usually ships in 3-6 days

0

32

White Outdoor 747-0451

Speed Control Rod

$

$

Not available

33

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

34

White Outdoor 734-0594

Rear Wheel Rim Only
(Superseded to 634-0138)

Variations

White Outdoor 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$62.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0629

RIM-WHEEL 8 X 5 - SILVER FLAKE (0629)

$62.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0662

RIM-WHEEL 8 X 5 - OYSTER GRAY (0662)

$62.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0674

RIM-WHEEL 8 X 5 - YARDMAN YELLOW (0674)

$

$

Not available

$131.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 734-0591

Rear Wheel Ass'y. - Comp.
(Superseded to 634-0139)

Variations

White Outdoor 734-0591-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$297.99

$

In Stock, only 1 left!

0

White Outdoor 734-0591-0912

Wheel Assembly, Gray - Dico Gray (0912)

$297.99

$

In Stock, only 1 left!

0

White Outdoor 734-0591-0932

Wheel Assembly, Gray - Dico Beige (0932)

$297.99

$

In Stock, only 1 left!

0

White Outdoor 734-0591-0931

WHEEL ASS'Y-COMP - Carlisle Beige (0931)

$297.99

$

Usually ships in 3-6 days

0

$241.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0275

Tire Only

Variations

White Outdoor 734-0275-0901

TIRE 16 X 6.5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0275-0905

TIRE 16 X 6.5 - Duro (0905)

$

$

Not available

White Outdoor 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

38

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 732-0389

Extension Spring 17.0" Lg.

$

$

Not available

40

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 16475

Shift Lever Ass'y.

Variations

White Outdoor 16475-0637

No Longer Available LEVER ASM-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 710-0227

Hex Wash. Hd. Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 726-0222

Insulator Nut
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

45

White Outdoor 732-0615

Spring Switch

$

$

Not available

46

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

47

White Outdoor 16476

Shift Lever Adjusting Link

$

$

Not available

48

White Outdoor 732-0487

Ext. Spring 8 1/4" Lg.

$

$

Not available

49

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.49

$

In Stock, only 3 left!

0

50

White Outdoor 747-0668

Shift Rod

$

$

Not available

51

White Outdoor 714-0149B

Intern. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

52

Transaxle

Note: See Breakdowns

$

$

Not available

53

White Outdoor 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

54

White Outdoor 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

55

White Outdoor 15564A

Torque Rod Bracket

Variations

White Outdoor 15564A-0637

BRACKET-TORQUE ROD - POWDER BLACK (0637)

$

$

Not available

$

$

56

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

57

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

58

White Outdoor 710-0965

Self-Tap Mach. Scr. Type "C" 1/4-20 x 1.37" Lg.

$

$

Not available

59

White Outdoor 17515A

Shift Lever Support Brkt.

$

$

Not available

60

White Outdoor 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 19

0

61

White Outdoor 712-0262

Hex L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 15552

Transaxle Support Ass'y.

Variations

White Outdoor 15552-0637

No Longer Available SUPPORT ASSY-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

63

White Outdoor 754-0240

V-Belt
(Superseded to 954-0240)

$37.99

$

In Stock, only 1 left!

0

64

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$13.99

$

In Stock, only 2 left!

0

65

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

66

White Outdoor 656-0002

V-Pulley

$70.99

$

Usually ships in 3-6 days

0

67

White Outdoor 756-0116

V-Belt Idler .38" I.D. x 3.06"
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

68

White Outdoor 732-0308

Ext. Spring .50" O.D. x 6.37"
(Superseded to 732-0308A)

$10.99

$

In Stock, Qty 12

0

69

White Outdoor 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

70

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 756-0391

Engine Pulley

$146.99

$

Usually ships in 3-6 days

0

72

White Outdoor 15623

Upper Eng. Belt Guard
(Superseded to 95623)

$

$

Not available

73

White Outdoor 736-0219

Bell-Wash. .4" I.D. x 1.12" O.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

74

White Outdoor 750-0686

Spacer .256" I.D. x .50" O.D.

$

$

Not available

75

White Outdoor 714-0114

Sq.-Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

76

White Outdoor 736-0427

Bell-Wash. .567" I.D. x 1.125"
(Superseded to 936-0427)

$

$

Not available

77

White Outdoor 736-0226

Fl-Wash. .469" I.D. x .88" O.D.
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

?78

White Outdoor 754-0241A

V-Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 20+

0

79

White Outdoor 750-0706

Spacer 1.00" x .380" O.D.
(Superseded to 950-0706)

$

$

Not available

80

White Outdoor 741-0405

Thrust Wash. .56" I.D. x 1.25" O.D.
(Superseded to 941-0405)

$

$

Not available

81

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

82

White Outdoor 711-0676

Torque Rod

$

$

Not available

83

White Outdoor 748-0294

Flange Bearing .378

$

$

Not available

84

White Outdoor 736-0187

Fl-Wash. .640" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

85

White Outdoor 15569A

Idler Bracket Ass'y.
(Superseded to 15569B)

$28.99

$

In Stock, only 1 left!

0

86

White Outdoor 736-0283

Thrust Wash. .635" I.D.

$

$

Not available

87

White Outdoor 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$20.99

$

In Stock, Qty 7

0

88

White Outdoor 736-0284

Thrust Wash. .385" I.D.

$

$

Not available

89

White Outdoor 15585

Idler Bracket Ass'y. For Clutch

$

$

Not available

90

White Outdoor 711-0640

Belt Guard Pin 3/8-16 x 2.75" Lg.

$7.49

$

Usually ships in 3-6 days

0

91

White Outdoor 747-0560

Clutch Rod

$

$

Not available

92

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 11

0

93

White Outdoor 783-0005

Variable Speed Mtg. Plate

Variations

White Outdoor 783-0005-0637

No Longer Available PLATE-V/S MTG - POWDER BLACK (0637)

$

$

Not available

$

$

94

White Outdoor 15642

Weld Bolt Brkt. Ass'y.

Variations

White Outdoor 15642-0637

No Longer Available BRACKET ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

97

White Outdoor 712-0798

Hex Nut 3/8-16

$3.99

$

In Stock, only 2 left!

0

98

White Outdoor 736-0217

L-Wash. 3/8 Heavy Duty

$3.99

$

In Stock, Qty 13

0

99

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

100

White Outdoor 17839

Speed Control Rod Brkt.
(Superseded to 783-1016B)

$

$

Not available

101

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.49

$

Usually ships in 3-6 days

0

102

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 15

0

103

White Outdoor 726-0231

Push On Retaining Ring
(Superseded to 926-0106)

$

$

Not available

104

White Outdoor 747-0758

Belt Guard

$

$

Not available

?107

White Outdoor 732-0525

Comp. Spring Clip

$9.49

$

In Stock, Qty 6

0

108

White Outdoor 712-0181

Hex Top L-Jam Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0
