R 11 C (965070301) - Husqvarna Swedish Riding Mower (2006-01) TRANSMISSION Parts Diagram

Swedish Riding Mower

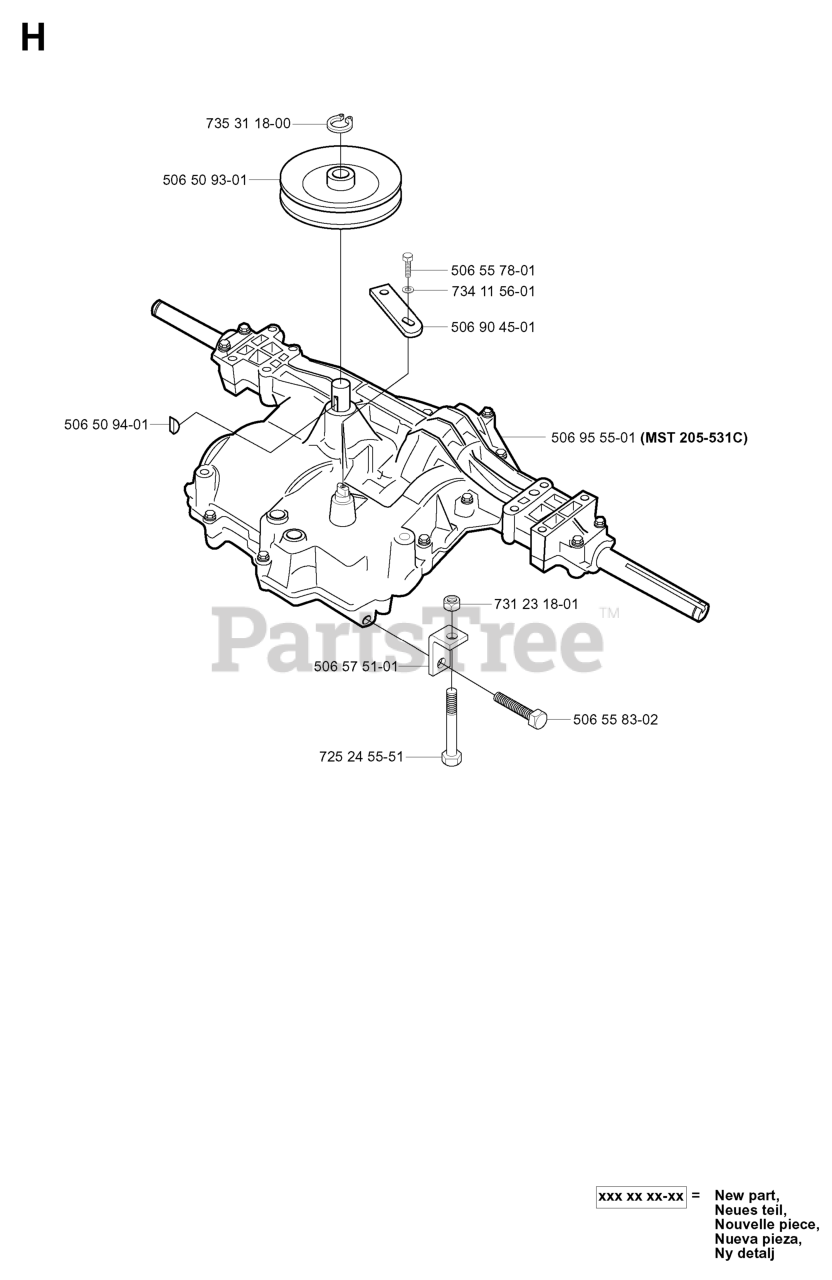

TRANSMISSION Parts Diagram

  • Title

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

725 24 55-51

Husqvarna 725245551

SCREW

$

$

Not available

506 50 94-01

Husqvarna 506509401

Key

$

$

Not available

506 95 55-01

Husqvarna 506955501

GEAR BOX

Note: MST 205-531C

$

$

Not available

506 50 93-01

Husqvarna 506509301

Pulley

$

$

Not available

735 31 18-00

Husqvarna 735311800

Retaining Ring Sga 16

$

$

Not available

506 55 83-02

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

506 90 45-01

Husqvarna 506904501

Lever

$

$

Not available

506 55 78-01

Husqvarna 506557801

Bolt

$

$

Not available

506 57 51-01

Husqvarna 506575101

Wire Bracket

$

$

Not available

734 11 56-01

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available
