R 11 C (965094201) - Husqvarna Swedish Riding Mower (2010-07) PEDALS Parts Diagram

Swedish Riding Mower

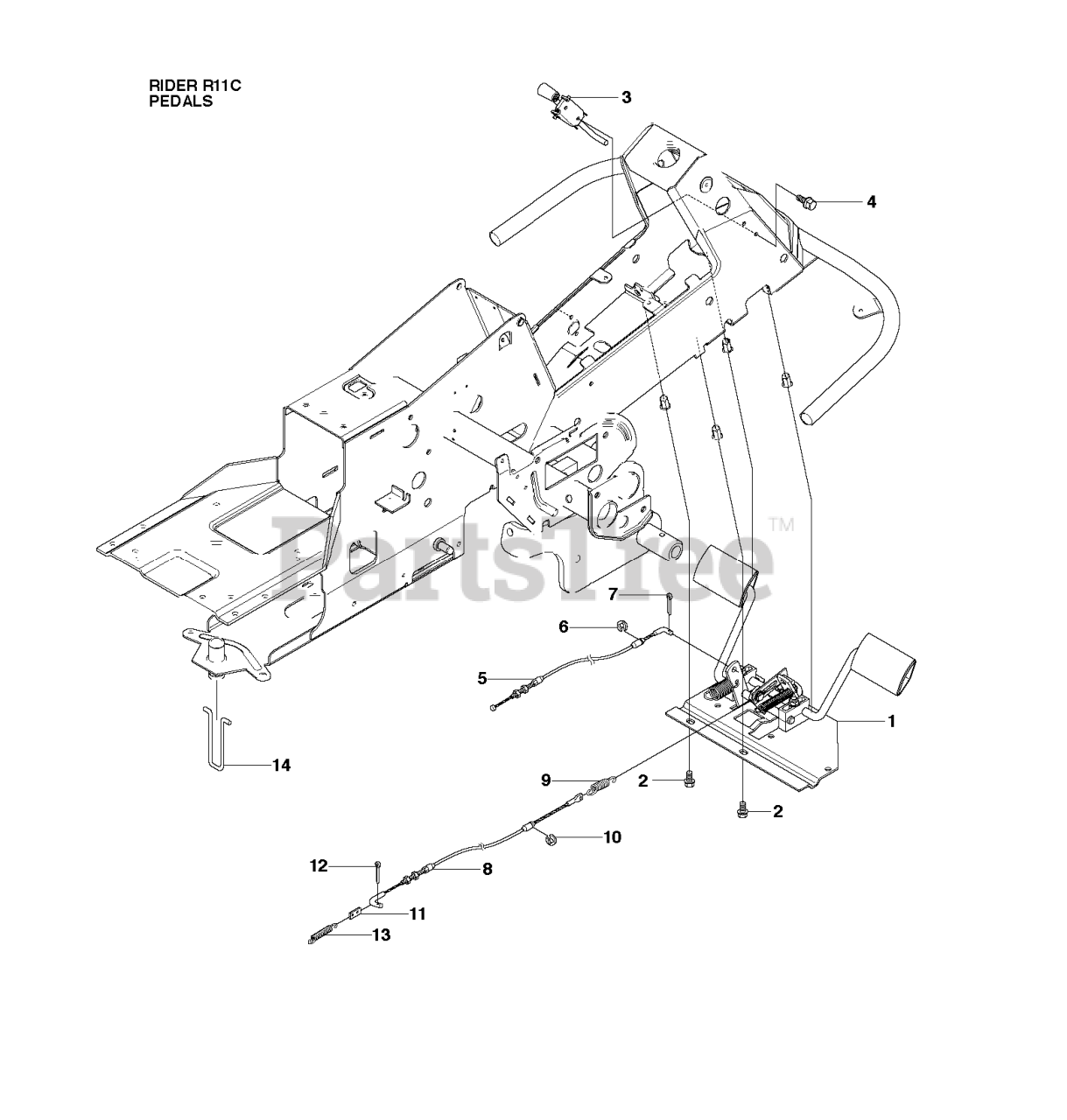

PEDALS Parts Diagram

  • Title

12

Husqvarna 721615201

Cotter Pin

$

$

Not available

10

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

11

Husqvarna 506599301

CONNECTOR

$

$

Not available

5

Husqvarna 506952501

CABLE

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 721615201

Cotter Pin

$

$

Not available

8

Husqvarna 506952601

CABLE

$68.99

$

Usually ships in 3-10 days

0

1

Husqvarna 544132301

PEDAL PLATE ASSY MANUAL

$

$

Not available

4

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506576401

RETAINER

$

$

Not available

3

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

9

Husqvarna 506919101

SPRING

$5.76

$

Usually ships in 3-10 days

0

13

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

6

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0
