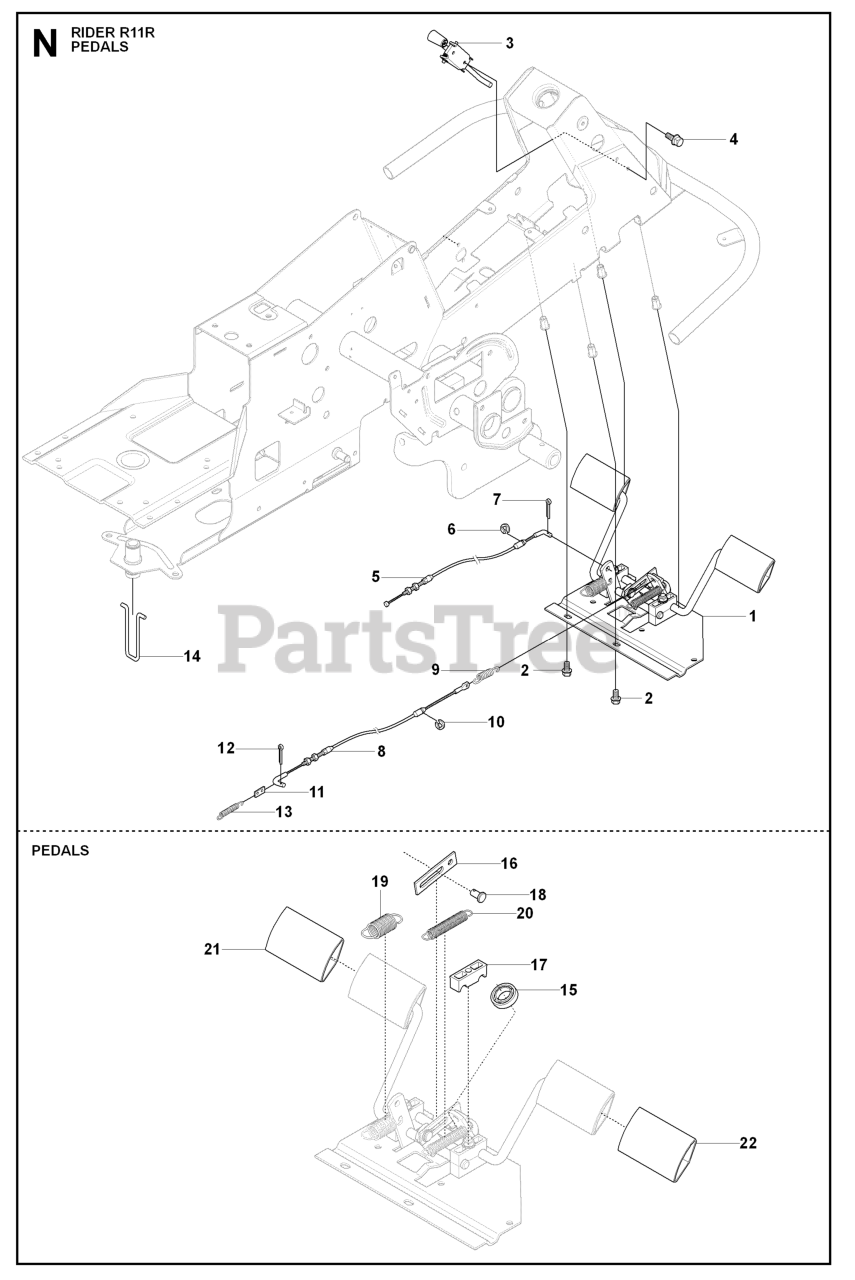

R 11 R (966830401) - Husqvarna Swedish Riding Mower (2009-04) PEDALS Parts Diagram

Swedish Riding Mower

PEDALS Parts Diagram

  • Title

21

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$25.99

$

In Stock, Qty 5

0

13

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544127901

NEEDS DESCRIPTION

$

$

Not available

8

Husqvarna 506952601

CABLE

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506919101

SPRING

$5.76

$

Usually ships in 3-10 days

0

15

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 721615201

Cotter Pin

$

$

Not available

18

Husqvarna 721839901

Clevis Pin

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544133401

NEEDS DESCRIPTION

$

$

Not available

1

Husqvarna 544132301

PEDAL PLATE ASSY MANUAL

$

$

Not available

4

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

22

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$25.99

$

In Stock, Qty 5

0

5

Husqvarna 506952501

CABLE

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506576401

RETAINER

$

$

Not available

2

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

6

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

17

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 721615201

Cotter Pin

$

$

Not available

11

Husqvarna 506599301

CONNECTOR

$

$

Not available

10

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

20

Husqvarna 544133601

NEEDS DESCRIPTION

$

$

Not available
