R 111 B (965996885) - Husqvarna Swedish Riding Mower (2010-07) CHASSIS / FRAME 2 Parts Diagram

Swedish Riding Mower

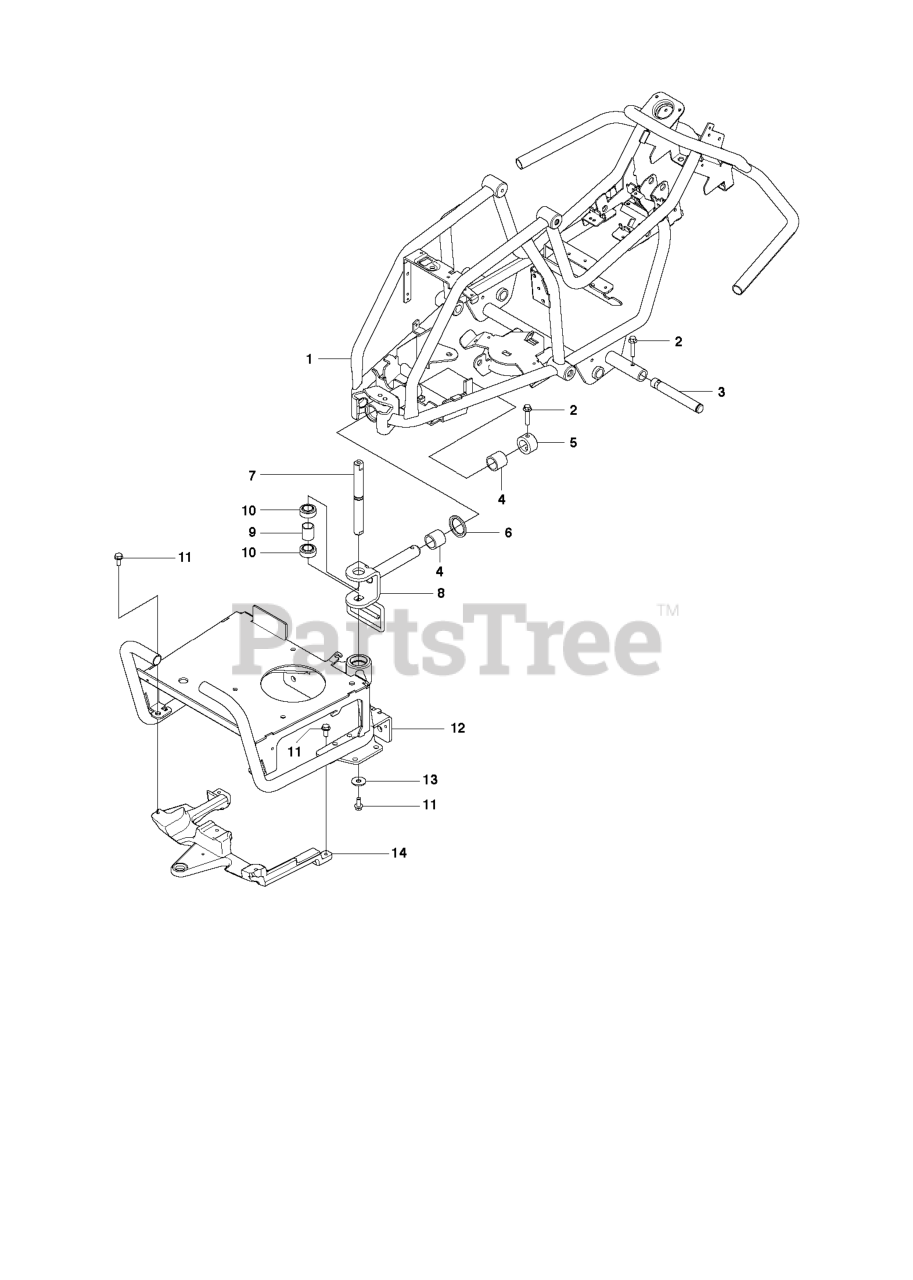

CHASSIS / FRAME 2 Parts Diagram

  • Title

8

Husqvarna 522424701

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 506986101

BUSHING
(Superseded to 506986102)

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 522416101

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 522423101

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 522424601

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 574368501

BEARING

$102.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 734117441

WASHER

$6.99

$

In Stock, only 3 left!

0

14

Husqvarna 525352301

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

9

Husqvarna 522424501

SLEEVE

$

$

Not available

5

Husqvarna 522425201

STOP SLEEVE

$

$

Not available

6

Husqvarna 522425301

SPACER

$

$

Not available

3

Husqvarna 535470801

AXLE

$

$

Not available
