R 111 B (965996885) - Husqvarna Swedish Riding Mower (2010-07) CONTROLS Parts Diagram

Swedish Riding Mower

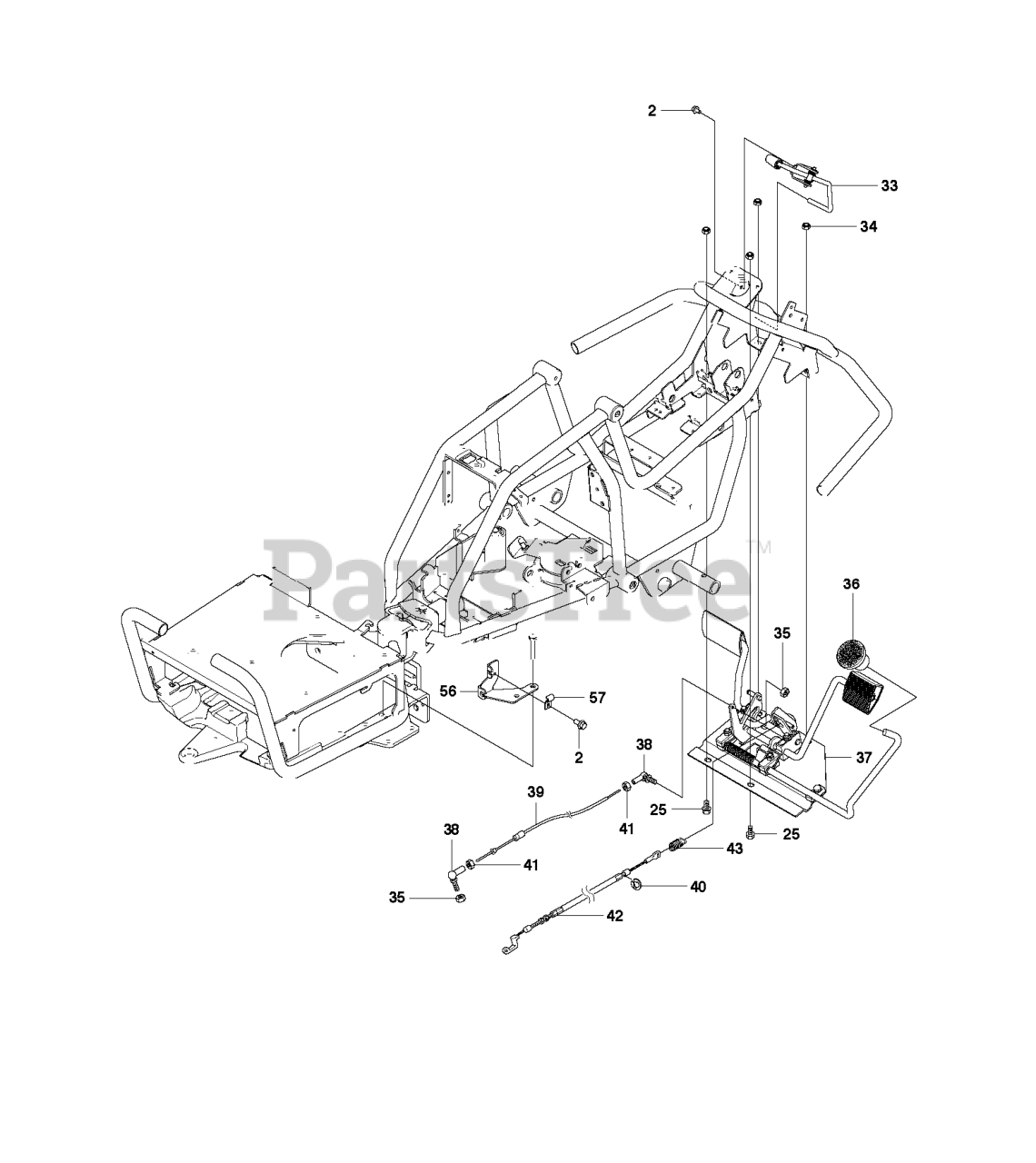

CONTROLS Parts Diagram

  • Title

57

Husqvarna 506566501

CLAMP

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

2

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$15.99

$

Usually ships in 3-10 days

0

39

Husqvarna 574411105

CONTROL CABLE

$102.99

$

Usually ships in 3-10 days

0

43

Husqvarna 575355201

SPRING

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 506570103

BOLT

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 18

0

38

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 2 left!

0

56

Husqvarna 522823101

WIRE HOLDER

$

$

Not available

41

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

37

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$226.99

$

Usually ships in 3-10 days

0

33

Husqvarna 523346001

LOCKING LEVER

$

$

Not available

42

Husqvarna 574407601

NEEDS DESCRIPTION

$

$

Not available

34

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0
