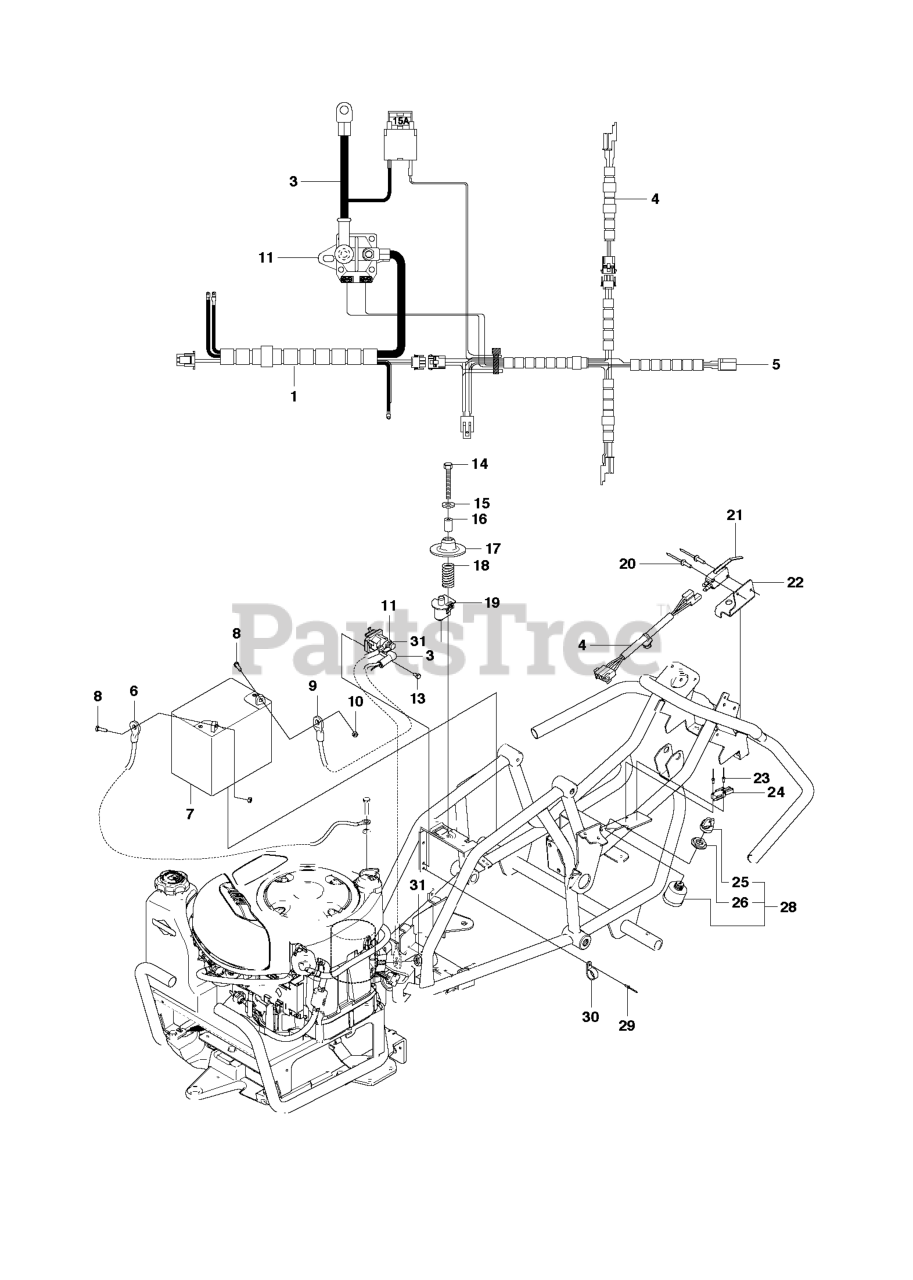

R 111 B (965996885) - Husqvarna Swedish Riding Mower (2010-07) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title

29

Husqvarna 722795402

Rivet

$

$

Not available

24

Husqvarna 574316101

MICRO SWITCH

$17.99

$

In Stock, only 1 left!

0

3

Husqvarna 574269801

CABLE

$

$

Not available

5

Husqvarna 574269501

NEEDS DESCRIPTION

$

$

Not available

19

Husqvarna 506909601

SWITCH

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 522624301

NUT

$

$

Not available

31

Husqvarna 506899801

NUT

$

$

Not available

14

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

11

Husqvarna 544439801

RELAY

$22.99

$

In Stock, only 2 left!

0

20

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510138501

$

$

Not available

8

Husqvarna 522622101

SCREW EHHM

$

$

Not available

30

Husqvarna 575269901

CABLE CLAMP

$

$

Not available

18

Husqvarna 544441201

SPRING

$

$

Not available

25

Husqvarna 544442401

IGNITION KEY

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544415701

BRACKET

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574316101

MICRO SWITCH

$17.99

$

In Stock, only 1 left!

0

16

Husqvarna 506909902

SPACER TUBE

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506909701

WASHER

$26.99

$

Usually ships in 3-10 days

0

28

Husqvarna 544442101

IGNITION SWITCH

$31.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544442301

NUT

$3.49

$

In Stock, only 1 left!

0

1

Husqvarna 574269701

NEEDS DESCRIPTION

$

$

Not available

4

Husqvarna 574269601

WIRING

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0
