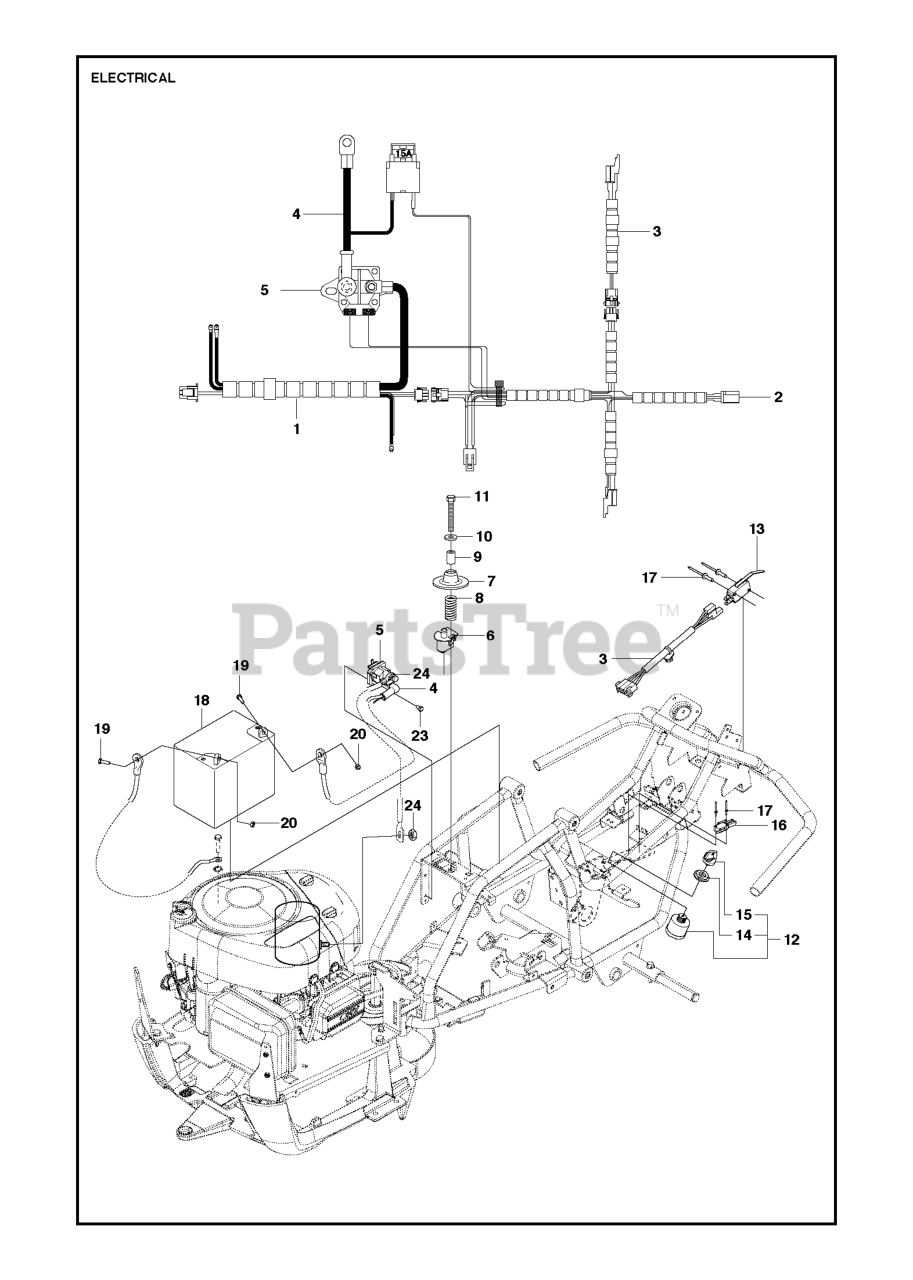

R 112 C 5 (967178502) - Husqvarna Swedish Riding Mower (2021-01) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title

6

Husqvarna 506909601

SWITCH

$31.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522622101

SCREW EHHM

$

$

Not available

10

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 506909902

SPACER TUBE

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574397201

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544442101

IGNITION SWITCH

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580355001

WIRING

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544439801

RELAY

$22.99

$

In Stock, only 2 left!

0

15

Husqvarna 544442401

IGNITION KEY

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574269801

CABLE

$

$

Not available

11

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

24

Husqvarna 506899801

NUT

$

$

Not available

3

Husqvarna 574269601

WIRING

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544442301

NUT

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506909701

WASHER

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522624301

NUT

$

$

Not available

16

Husqvarna 574316101

MICRO SWITCH

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 544415901

SWITCH

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581972401

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 544441201

SPRING

$

$

Not available
