R 115 C (967252701) - Husqvarna Swedish Riding Mower (2014) CHASSIS REAR Parts Diagram

Swedish Riding Mower

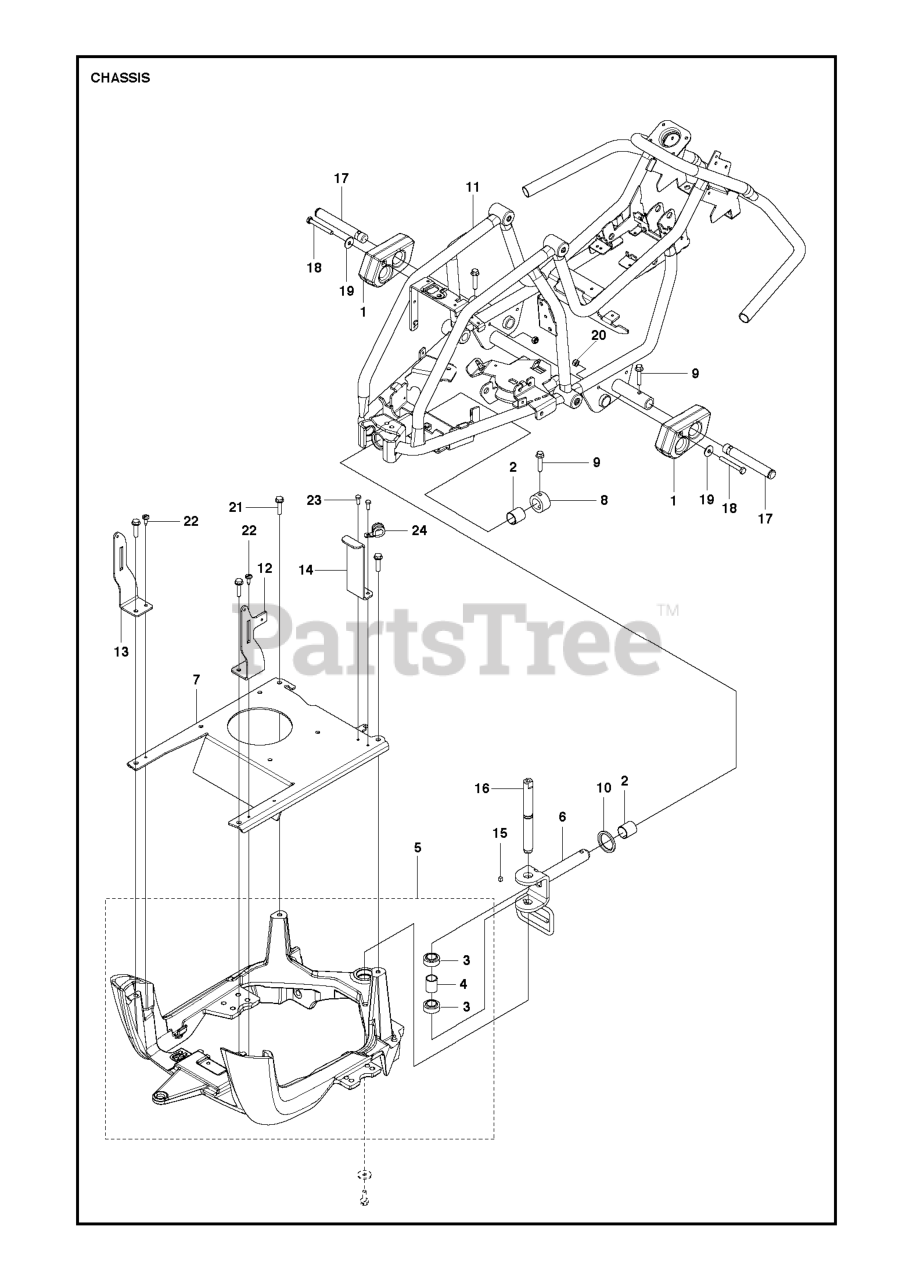

CHASSIS REAR Parts Diagram

  • Title

16

Husqvarna 579720401

SHAFT

$20.99

$

Usually ships in 3-10 days

0

18

Husqvarna 725246451

SCREW

$1.49

$

Usually ships in 3-10 days

0

1

Husqvarna 580464201

COUNTERWEIGHT

$

$

Not available

21

Husqvarna 506570106

SCREW EHHFM

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

6

Husqvarna 580267401

SWING AXLE

$

$

Not available

8

Husqvarna 522425201

STOP SLEEVE

$

$

Not available

24

Husqvarna 574531203

HOSE CLAMP

$

$

Not available

4

Husqvarna 522424501

SLEEVE

$

$

Not available

15

Husqvarna 577708901

KEY

$

$

Not available

14

Husqvarna 580682401

BRACKET

$

$

Not available

17

Husqvarna 535470802

WHEEL AXLE

$45.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580682301

BRACKET

$

$

Not available

5

Husqvarna 590268401

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 574368501

BEARING

$102.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506986101

BUSHING
(Superseded to 506986102)

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544400401

SCREW

$

$

Not available

7

Husqvarna 579597801

BRACKET

$

$

Not available

9

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

10

Husqvarna 522425301

SPACER

$

$

Not available

19

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 725236861

SCREW
(Superseded to 535475212)

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 581274101

FRAME FRONT ASSY

$

$

Not available

12

Husqvarna 580682101

BRACKET

$

$

Not available
