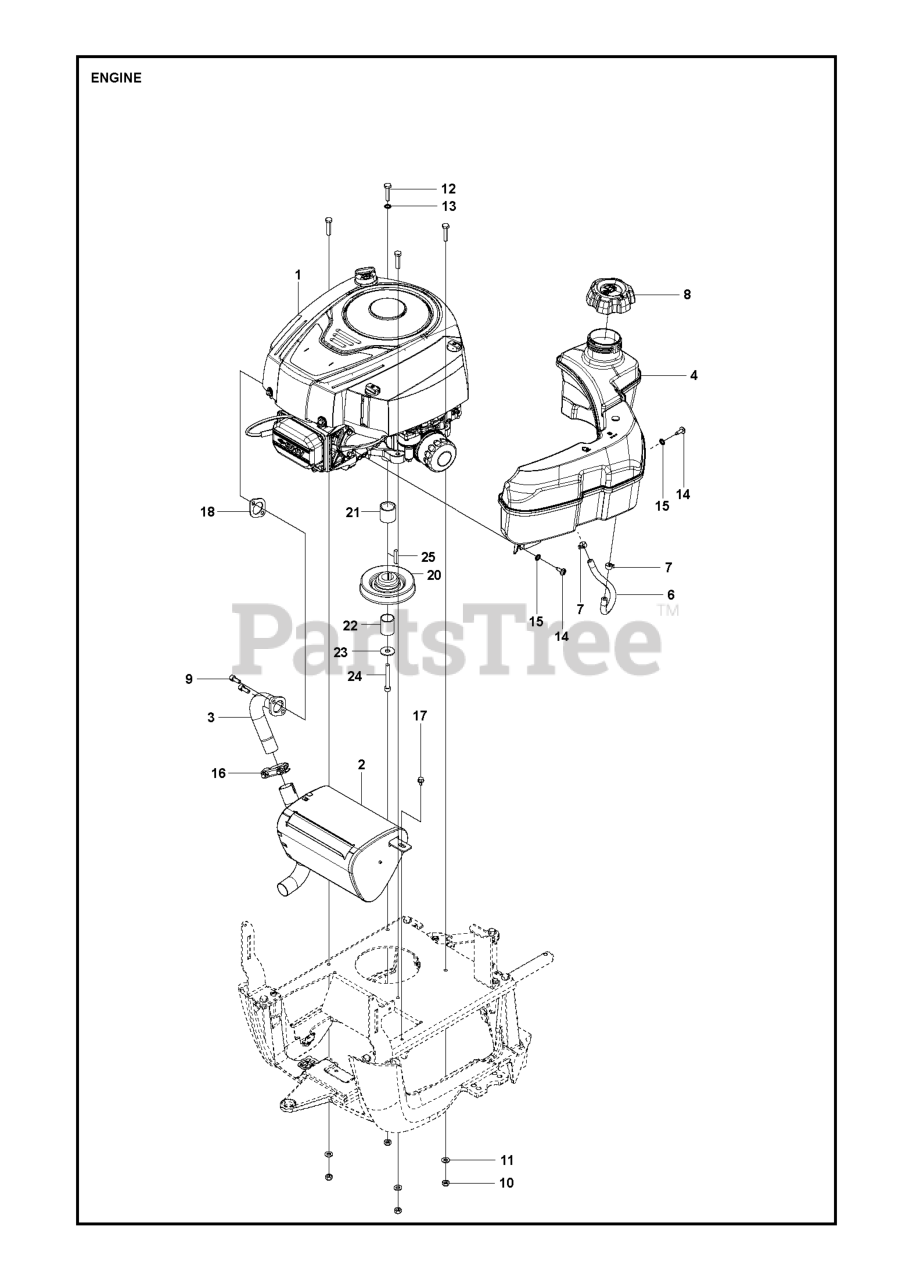

R 115 C (967252701) - Husqvarna Swedish Riding Mower (2019-01) ENGINE Parts Diagram

Swedish Riding Mower

ENGINE Parts Diagram

  • Title

6

Husqvarna 504800013

FUEL HOSE

$

$

Not available

25

Husqvarna 506555902

WEDGE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544400401

SCREW

$

$

Not available

17

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574412002

TUBE

$

$

Not available

4

Husqvarna 580541102

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 580375001

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

16

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

20

Husqvarna 522827601

PULLEY

$

$

Not available

24

Husqvarna 506556002

SCREW

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 735216400

Washer

$

$

Not available

9

Husqvarna 506556301

BOLT

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 535469701

CLAMP

$

$

Not available

3

Husqvarna 580376601

MANIFOLD

$

$

Not available

2

Husqvarna 580735501

MUFFLER ASSY

$

$

Not available

15

Husqvarna 735216400

Washer

$

$

Not available

8

Husqvarna 532439645

CAP.FL.R.3'N/CARB.H.CROWN.498
(Superseded to 584248702)

$12.99

$

In Stock, only 1 left!

0

21

Husqvarna 506509202

SPACING SLEEVE

$

$

Not available

12

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

18

Husqvarna 506914501

FLANGE

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 506597501

WASHER

$

$

Not available
