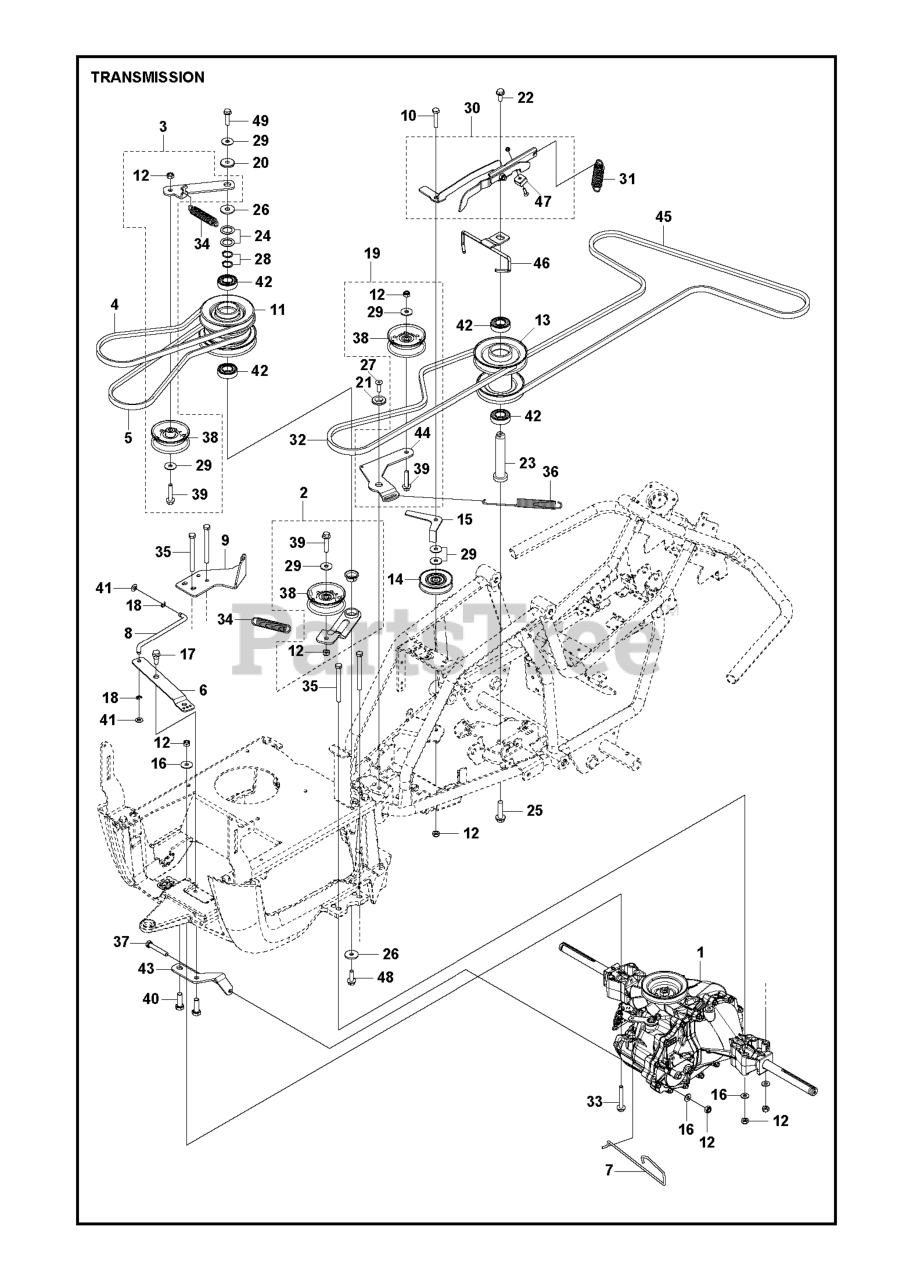

R 115 C (967252702) - Husqvarna Swedish Riding Mower (2020-01) TRANSMISSION Parts Diagram

Swedish Riding Mower

TRANSMISSION Parts Diagram

  • Title

12

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

21

Husqvarna 581765201

WASHER

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 589561701

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 581740201

PULLEY

$

$

Not available

46

Husqvarna 585295702

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 575567202

SPRING

$10.99

$

In Stock, only 3 left!

0

20

Husqvarna 584288604

Washers

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 589563101

BELT

$31.99

$

In Stock, only 2 left!

0

30

Husqvarna 587977901

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 725645301

SCREW

$6.99

$

In Stock, only 1 left!

0

47

Husqvarna 506833601

BRAKE PAD

$56.99

$

Usually ships in 3-10 days

0

44

Husqvarna 522602901

BELT TENSIONER

$

$

Not available

43

Husqvarna 597984301

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

35

Husqvarna 725246951

Screw

$

$

Not available

3

Husqvarna 580278701

BELT TENSIONER ASSY

$50.99

$

In Stock, only 1 left!

0

48

Husqvarna 577216501

SCREW

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

49

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$9.49

$

In Stock, only 1 left!

0

41

Husqvarna 735585201

WASHER

$

$

Not available

7

Husqvarna 580374902

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 725249571

SCREW

$7.99

$

In Stock, Qty 12

0

34

Husqvarna 574506101

SPRING

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 735311020

C-WASHER

$3.99

$

In Stock, Qty 9

0

8

Husqvarna 580291101

ROD

$

$

Not available

9

Husqvarna 580291202

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 589533101

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 506946901

PULLEY

$50.99

$

In Stock, only 1 left!

0

31

Husqvarna 575928901

SPRING

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574259801

SHAFT

$26.99

$

In Stock, only 1 left!

0

11

Husqvarna 581738502

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 597625301

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 580279001

BELT TENSIONER ASSY

$45.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 581759901

BELT INTERMEDIATE 42 SD

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506504805

WASHER

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 506570107

SCREW EHHFM

$

$

Not available

37

Husqvarna 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

1

Husqvarna 597598301

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

42

Husqvarna 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

26

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

17

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 577418501

BRACKET

$

$

Not available

39

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

38

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 7

0

19

Husqvarna 522603301

BELT TENSIONER

$

$

Not available
