R 115 C - Husqvarna Swedish Riding Mower (Original) WHEELS & TIRES Parts Diagram

Swedish Riding Mower

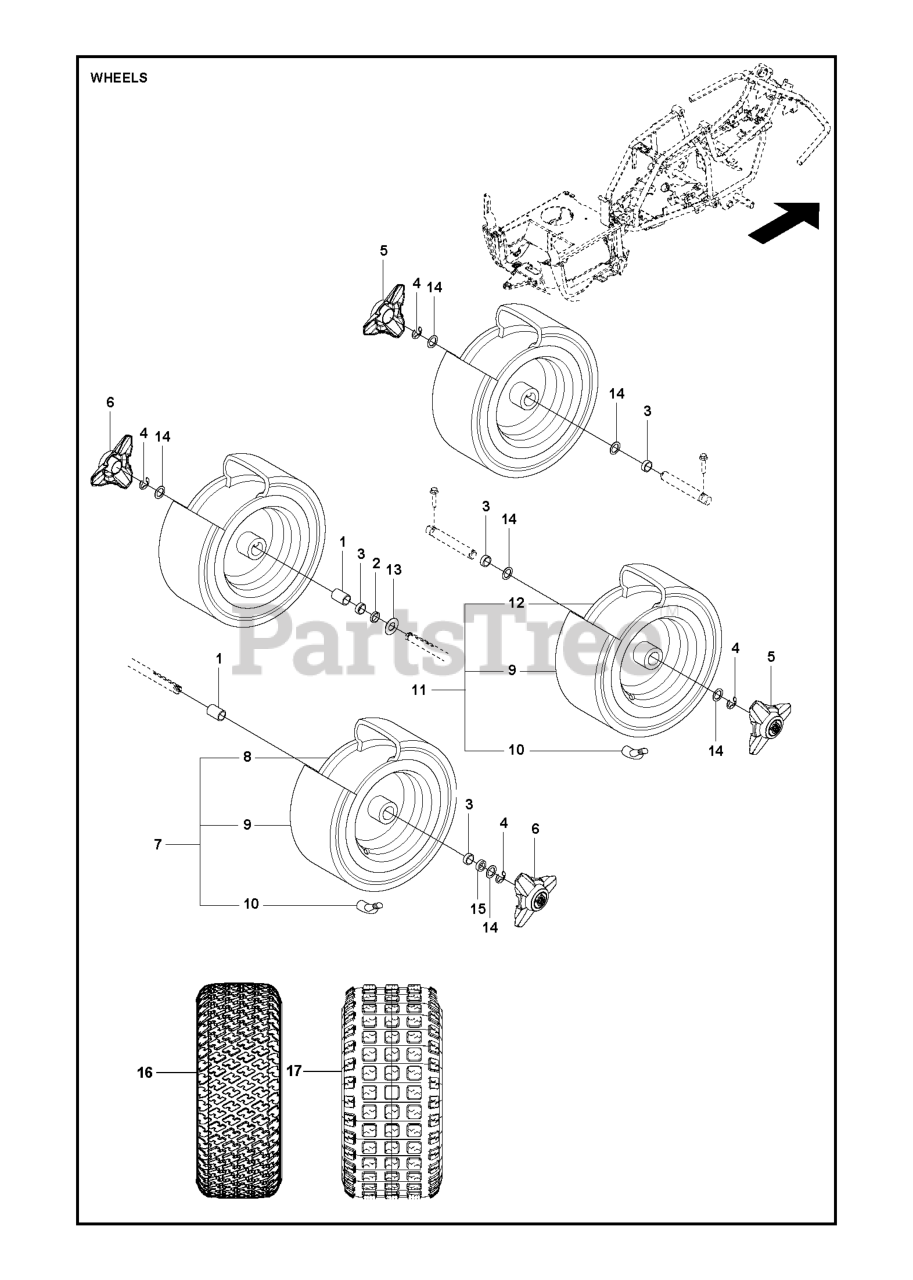

WHEELS & TIRES Parts Diagram

  • Title

12

Husqvarna 523034501

RIM

Note: FRONT

$

$

Not available

6

Husqvarna 544353501

HUB CAP

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575292701

NEEDS DESCRIPTION

$

$

Not available

13

Husqvarna 506504803

WASHER

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 523034801

RIM

Note: REAR

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 523012602

WHEEL

Note: Tyre tracks according to pos. 16

$206.99

$

Usually ships in 3-10 days

0

16

Husqvarna 523034602

TIRE
(Superseded to 535460001)

$113.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506899001

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 523012201

NEEDS DESCRIPTION

Note: Tyre tracks according to pos. 17

$

$

Not available

17

Husqvarna 523034601

NEEDS DESCRIPTION

$

$

Not available

7

Husqvarna 523012601

NEEDS DESCRIPTION

Note: Tyre tracks according to pos. 17

$

$

Not available

2

Husqvarna 585358404

NEEDS DESCRIPTION

Note: For 967252701

$

$

Currently unavailable

10

Husqvarna 506574301

VALVE

$

$

Not available

1

Husqvarna 585358410

NEEDS DESCRIPTION

Note: For 967252701

$

$

Currently unavailable

3

Husqvarna 585358402

NEEDS DESCRIPTION

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585358408

NEEDS DESCRIPTION

Note: For 967252702

$

$

Currently unavailable

11

Husqvarna 523012202

WHEEL

Note: Tyre tracks according to pos. 16

$169.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506504805

WASHER

$7.99

$

In Stock, only 1 left!

0

1

Husqvarna 585358409

NEEDS DESCRIPTION

Note: For 967252702

$

$

Currently unavailable

9

Husqvarna 535460001

TIRE

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544353502

HUB CAP

$14.99

$

Usually ships in 3-10 days

0
