R 1200 - Husqvarna Swedish Riding Mower (1996-08) Cutter Deck Assembly (R1000) Parts Diagram

Swedish Riding Mower

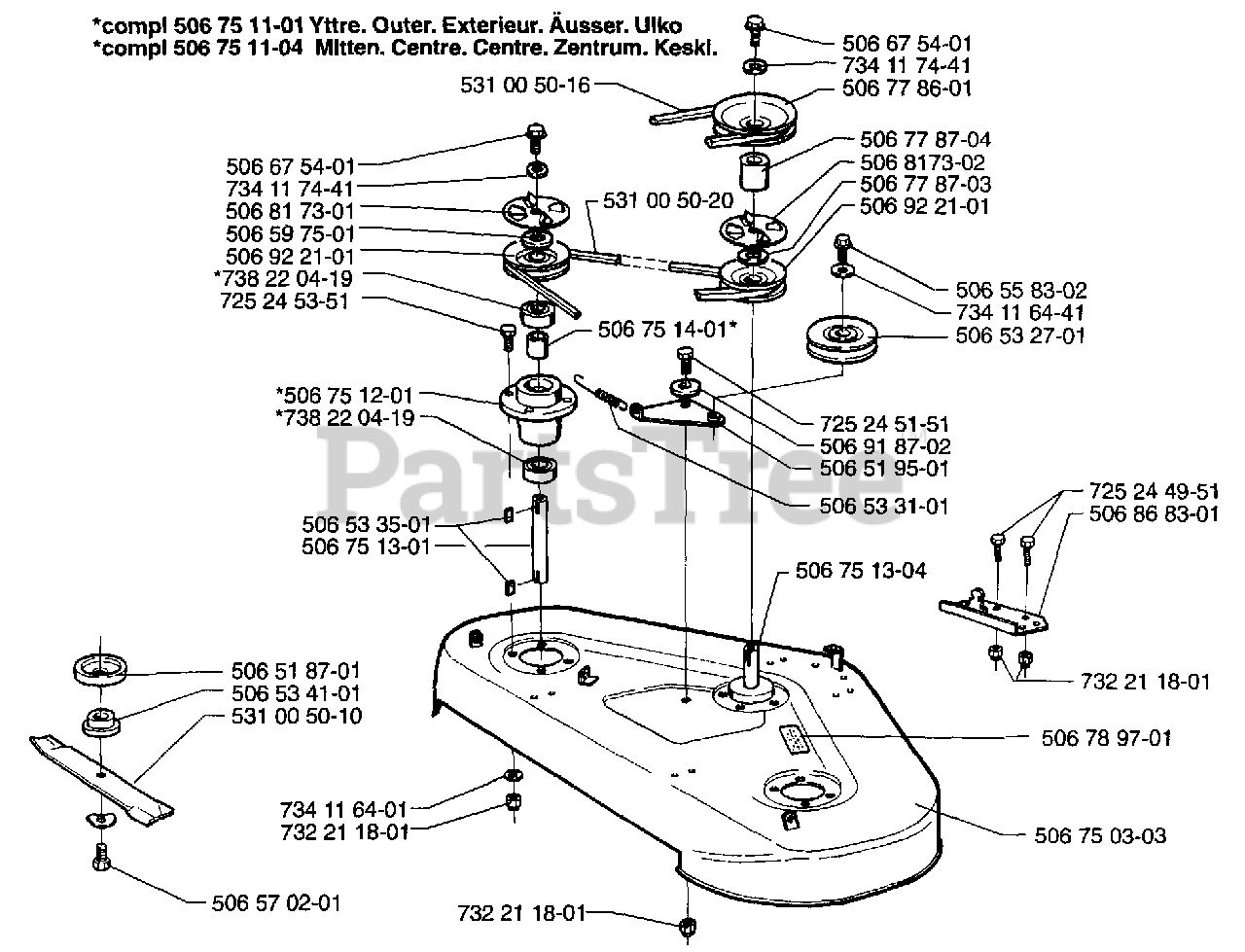

Cutter Deck Assembly (R1000) Parts Diagram

  • Title

506751101

Husqvarna 506751101

CPL BLADEHOUSING MFG SKF, 48

$

$

Not available

506751104

Husqvarna 506751104

SPINDLE

$

$

Not available

506675401

Husqvarna 506675401

BOLT

$7.99

$

In Stock, only 1 left!

0

734117441

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

506817301

Husqvarna 506817301

FAN

$

$

Not available

506597501

Husqvarna 506597501

WASHER

$

$

Not available

506922101

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

738220419

Husqvarna 738220419

BALL-BEARING 6204-2RS

$26.99

$

In Stock, Qty 11

0

725245351

Husqvarna 725245351

SCREW M6S 8X25
(Superseded to 725245371)

$5.99

$

Usually ships in 3-10 days

0

506751201

Husqvarna 506751201

BEARING HOUSING
(Superseded to 535413401)

$

$

Not available

738220419

Husqvarna 738220419

BALL-BEARING 6204-2RS

$26.99

$

In Stock, Qty 11

0

506533501

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

506751301

Husqvarna 506751301

SHAFT

$74.99

$

Usually ships in 3-10 days

0

506518701

Husqvarna 506518701

BEARING COVER

$

$

Not available

506534101

Husqvarna 506534101

BLADE BOSS

$

$

Not available

531005010

Husqvarna 531005010

RP RIDER BLADE 14 PRO/16
(Superseded to 535420310)

$

$

Not available

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506570201

Husqvarna 506570201

REPL BY 506 67 54-01
(Superseded to 506675401)

$7.99

$

In Stock, only 1 left!

0

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506750303

Husqvarna 506750303

$

$

Currently unavailable

506789701

Husqvarna 506789701

DECAL

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506751304

Husqvarna 506751304

SHAFT

$

$

Not available

506533101

Husqvarna 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

506519501

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

506918702

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

725545151

Husqvarna 725545151

$

$

Currently unavailable

734116441

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

506532701

Husqvarna 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0

725544951

Husqvarna 725544951

$

$

Currently unavailable

506868301

Husqvarna 506868301

BRACKET

$

$

Not available

506558302

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

506922101

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

506778703

Husqvarna 506778703

SPACER

$

$

Not available

506817302

Husqvarna 506817302

FAN

$

$

Not available

506778704

Husqvarna 506778704

$

$

Currently unavailable

506778601

Husqvarna 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

506675401

Husqvarna 506675401

BOLT

$7.99

$

In Stock, only 1 left!

0

734117441

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

531005016

Husqvarna 531005016

BELT
(Superseded to 589531601)

$68.99

$

Usually ships in 3-10 days

0

531005020

Husqvarna 531005020

BELT
(Superseded to 589534001)

$

$

Not available

506751401

Husqvarna 506751401

SPACER

$

$

Not available
