R 13 AWD (965094601) - Husqvarna Swedish Riding Mower (2007-01) MOWER DECK / CUTTING DECK Parts Diagram

Swedish Riding Mower

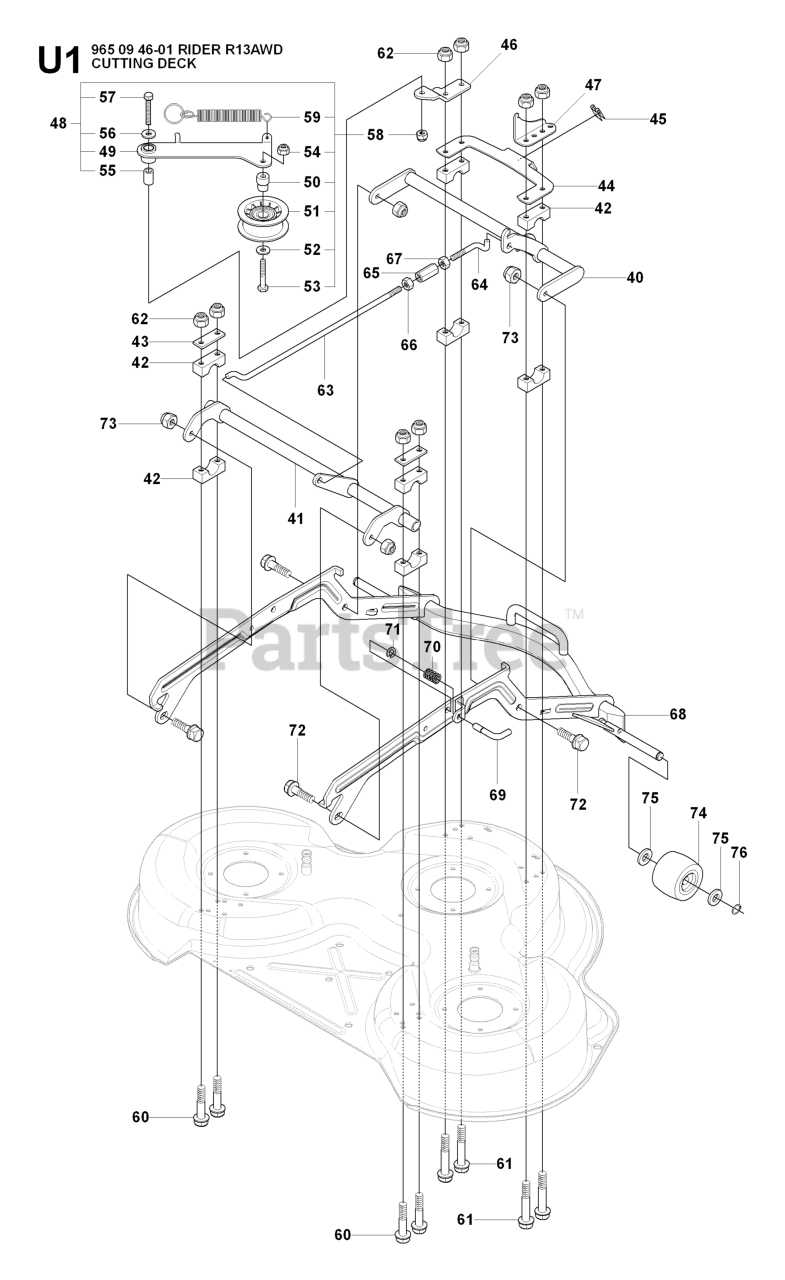

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

45

Husqvarna 506963701

BRACKET

$

$

Not available

46

Husqvarna 544405101

NEEDS DESCRIPTION

$

$

Not available

48

Husqvarna 544835601

NEEDS DESCRIPTION

$

$

Not available

66

Husqvarna 506897601

NUT

$

$

Not available

72

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

51

Husqvarna 506793202

PULLEY
(Superseded to 586104302)

$27.99

$

Usually ships in 3-10 days

0

42

Husqvarna 506869601

BEARING

$

$

Not available

59

Husqvarna 506976801

SPRING

$22.99

$

Usually ships in 3-10 days

0

70

Husqvarna 544214101

SPRING

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

50

Husqvarna 506976402

NEEDS DESCRIPTION

$

$

Not available

57

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

73

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

62

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

74

Husqvarna 506963001

DECK ROLLER, FRONT

$87.99

$

In Stock, Qty 19

0

40

Husqvarna 544220701

$

$

Currently unavailable

63

Husqvarna 544226901

$

$

Not available

76

Husqvarna 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0

49

Husqvarna 544836601

NEEDS DESCRIPTION

$

$

Not available

65

Husqvarna 544451501

$

$

Not available

47

Husqvarna 544405201

NEEDS DESCRIPTION

$

$

Not available

53

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

69

Husqvarna 544213901

$

$

Not available

60

Husqvarna 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

52

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

54

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

55

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

56

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

75

Husqvarna 535464101

WASHER

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 544213301

NEEDS DESCRIPTION

$

$

Currently unavailable

43

Husqvarna 506813801

PLATE

$9.49

$

Usually ships in 3-10 days

0

71

Husqvarna 735311320

E-RING

$4.99

$

In Stock, Qty 13

0

44

Husqvarna 544379101

NEEDS DESCRIPTION

$

$

Not available

61

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0

64

Husqvarna 544451401

$

$

Not available

67

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

41

Husqvarna 544225901

NEEDS DESCRIPTION

$

$

Currently unavailable
