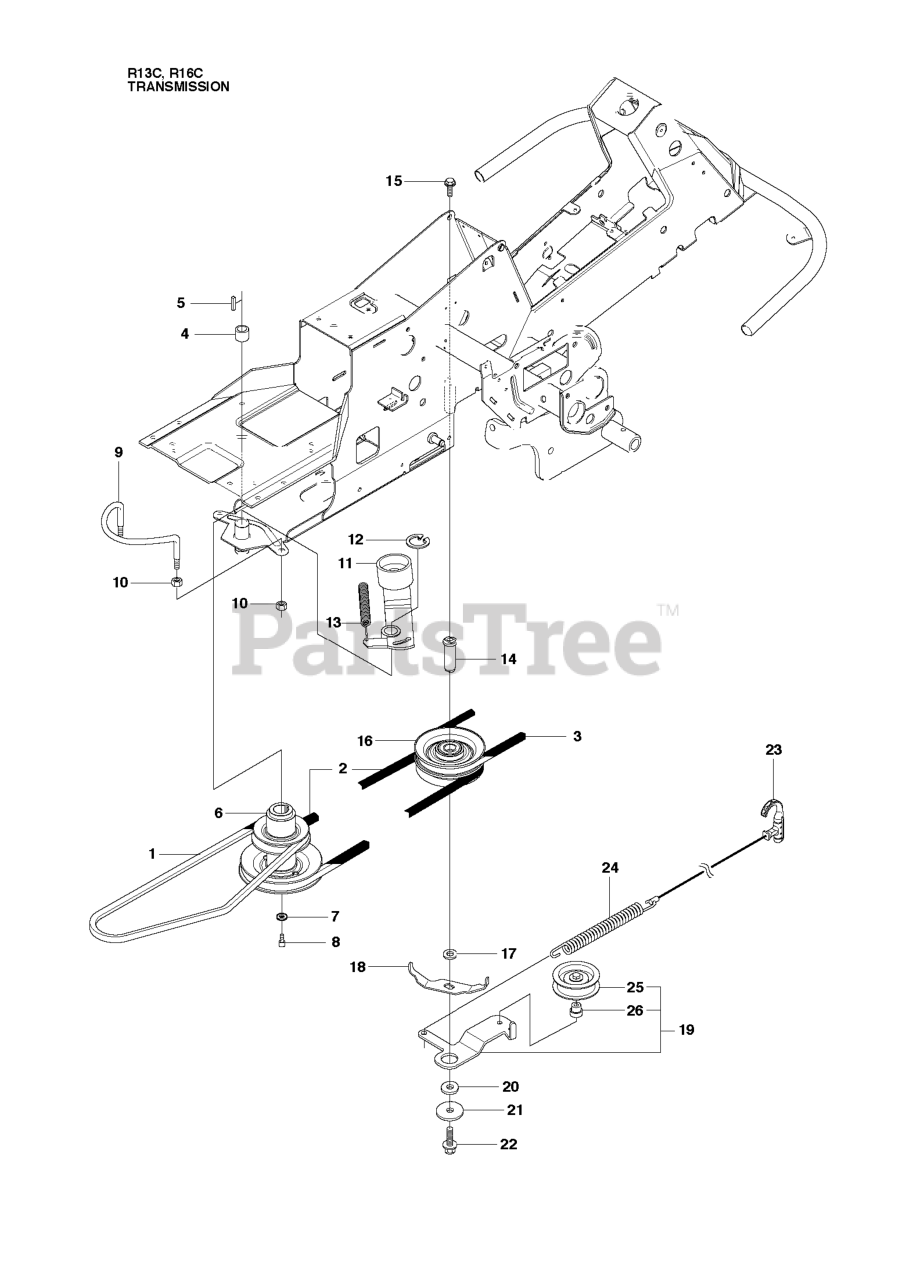

R 13 C (965094301) - Husqvarna Swedish Riding Mower (2010-07) TRANSMISSION Parts Diagram

Swedish Riding Mower

TRANSMISSION Parts Diagram

  • Title

26

Husqvarna 506976401

BUSHING

$

$

Not available

7

Husqvarna 506597501

WASHER

$

$

Not available

8

Husqvarna 506556002

SCREW

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 589531201

BELT

$34.99

$

In Stock, Qty 5

0

21

Husqvarna 506982501

Washer

$

$

Not available

19

Husqvarna 544228101

BELT TENSIONER ASSY

$62.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506509201

SPACER

$12.99

$

In Stock, only 1 left!

0

2

Husqvarna 589530401

BELT

$48.99

$

Usually ships in 3-10 days

0

10

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

23

Husqvarna 544239501

NEEDS DESCRIPTION

$

$

Not available

5

Husqvarna 506555901

KEY

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 506665601

SPRING

$

$

Not available

18

Husqvarna 544405301

BELT GUIDE

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 544238801

SPRING

$

$

Not available

15

Husqvarna 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

16

Husqvarna 535482201

PULLEY

$112.99

$

In Stock, only 1 left!

0

20

Husqvarna 506597501

WASHER

$

$

Not available

22

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$9.49

$

In Stock, only 1 left!

0

17

Husqvarna 506775701

WASHER

$7.99

$

In Stock, only 1 left!

0

11

Husqvarna 535484401

TENSIONER

$75.99

$

In Stock, only 1 left!

0

3

Husqvarna 589530001

BELT

$

$

Not available

25

Husqvarna 506793202

PULLEY
(Superseded to 586104302)

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535482401

PULLEY

$102.99

$

Usually ships in 3-10 days

0

12

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, Qty 5

0

14

Husqvarna 544426101

SHAFT
(Superseded to 581916401)

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0
