R 13 - Husqvarna Swedish Riding Mower (2001-01) TRANSMISSION Parts Diagram

Swedish Riding Mower

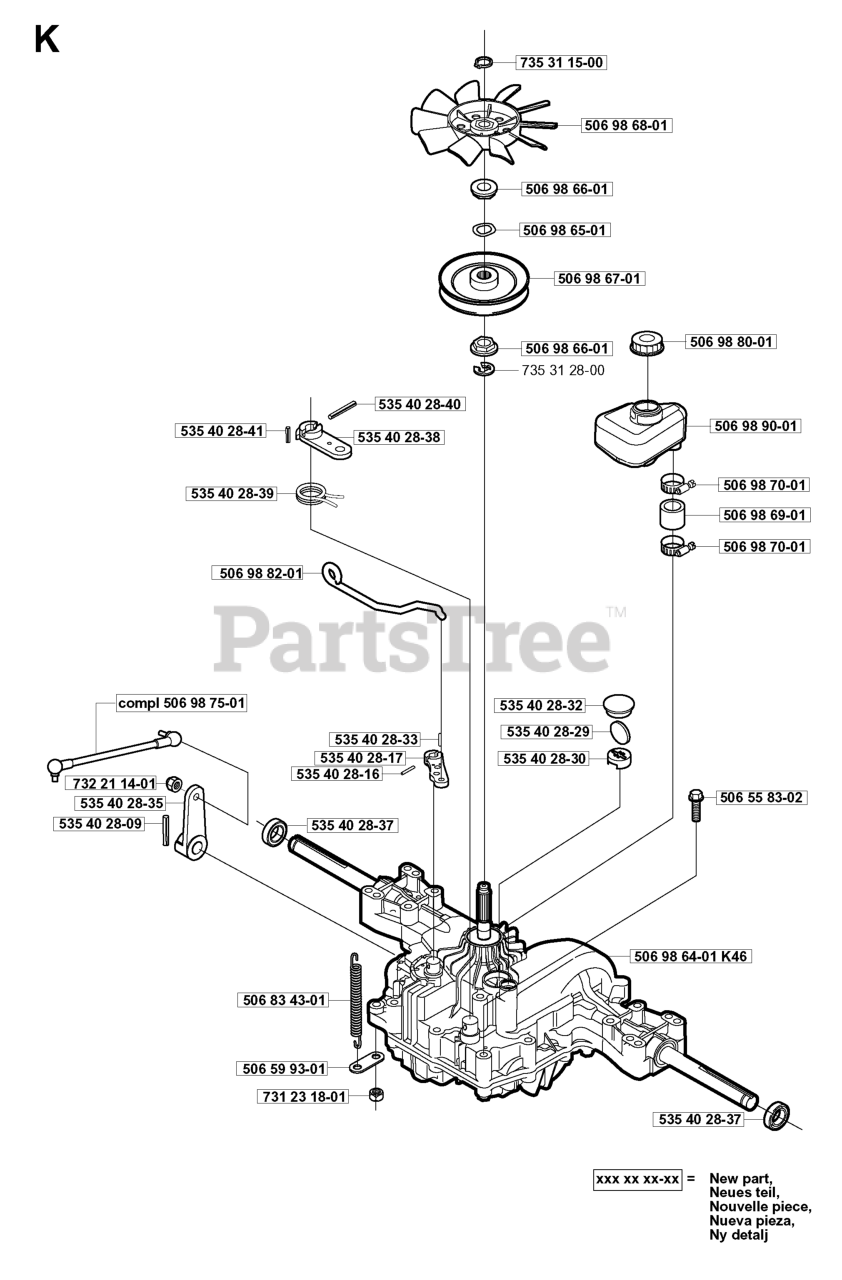

TRANSMISSION Parts Diagram

  • Title

535 40 28-33

Husqvarna 535402833

PIN

$3.49

$

Usually ships in 3-10 days

0

506 98 66-01

Husqvarna 506986601

SLEEVE

$10.99

$

Usually ships in 3-10 days

0

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

535 40 28-40

Husqvarna 535402840

PIN

$4.99

$

Usually ships in 3-10 days

0

506 98 82-01

Husqvarna 506988201

Rod

$

$

Not available

535 40 28-29

Husqvarna 535402829

MAGNET

$

$

Not available

506 98 70-01

Husqvarna 506987001

CLAMP
(Superseded to 505131102)

$7.99

$

In Stock, only 1 left!

0

535 40 28-38

Husqvarna 535402838

ARM

$20.99

$

Usually ships in 3-10 days

0

506 98 75-01

Husqvarna 506987501

ROD

$79.99

$

Usually ships in 3-10 days

0

506 98 67-01

Husqvarna 506986701

PULLEY - 3 1/2"
(Superseded to 502451901)

$48.99

$

In Stock, only 1 left!

0

506 98 64-01

Husqvarna 506986401

REPL BY 506 98 63 01
(Superseded to 506986301)

Note: K46

$

$

Not available

506 55 83-02

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

535 40 28-16

Husqvarna 535402816

PIN

$3.49

$

Usually ships in 3-10 days

0

535 40 28-41

Husqvarna 535402841

PIN

$3.49

$

Usually ships in 3-10 days

0

535 40 28-32

Husqvarna 535402832

PLUG

$23.99

$

Usually ships in 3-10 days

0

735 31 15-00

Husqvarna 735311500

RETAINING RING **

$5.99

$

In Stock, Qty 10

0

506 98 80-01

Husqvarna 506988001

TANK CAP

$31.99

$

Usually ships in 3-10 days

0

506 98 69-01

Husqvarna 506986901

PIPE
(Superseded to 502451601)

$22.99

$

Usually ships in 3-10 days

0

535 40 28-30

Husqvarna 535402830

HOLDER

$

$

Not available

506 83 43-01

Husqvarna 506834301

SPRING

$5.99

$

Usually ships in 3-10 days

0

506 98 68-01

Husqvarna 506986801

FAN.BLACK.1A646083070
(Superseded to 583350101)

$53.99

$

In Stock, Qty 6

0

506 98 90-01

Husqvarna 506989001

TANK

$37.99

$

Usually ships in 3-10 days

0

506 98 65-01

Husqvarna 506986501

WASHER **

$5.99

$

Usually ships in 3-10 days

0

535 40 28-37

Husqvarna 535402837

RP SEAL.19, 19216334280
(Superseded to 583349301)

$37.99

$

In Stock, Qty 6

0

535 40 28-39

Husqvarna 535402839

RETURN SPRING

$

$

Not available

535 40 28-17

Husqvarna 535402817

ARM

$39.99

$

Usually ships in 3-10 days

0

506 59 93-01

Husqvarna 506599301

CONNECTOR

$

$

Not available

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

535 40 28-35

Husqvarna 535402835

LEVER

$

$

Not available

735 31 28-00

Husqvarna 735312800

Retaining Ring

$

$

Not available

535 40 28-09

Husqvarna 535402809

PIN

$

$

Not available
