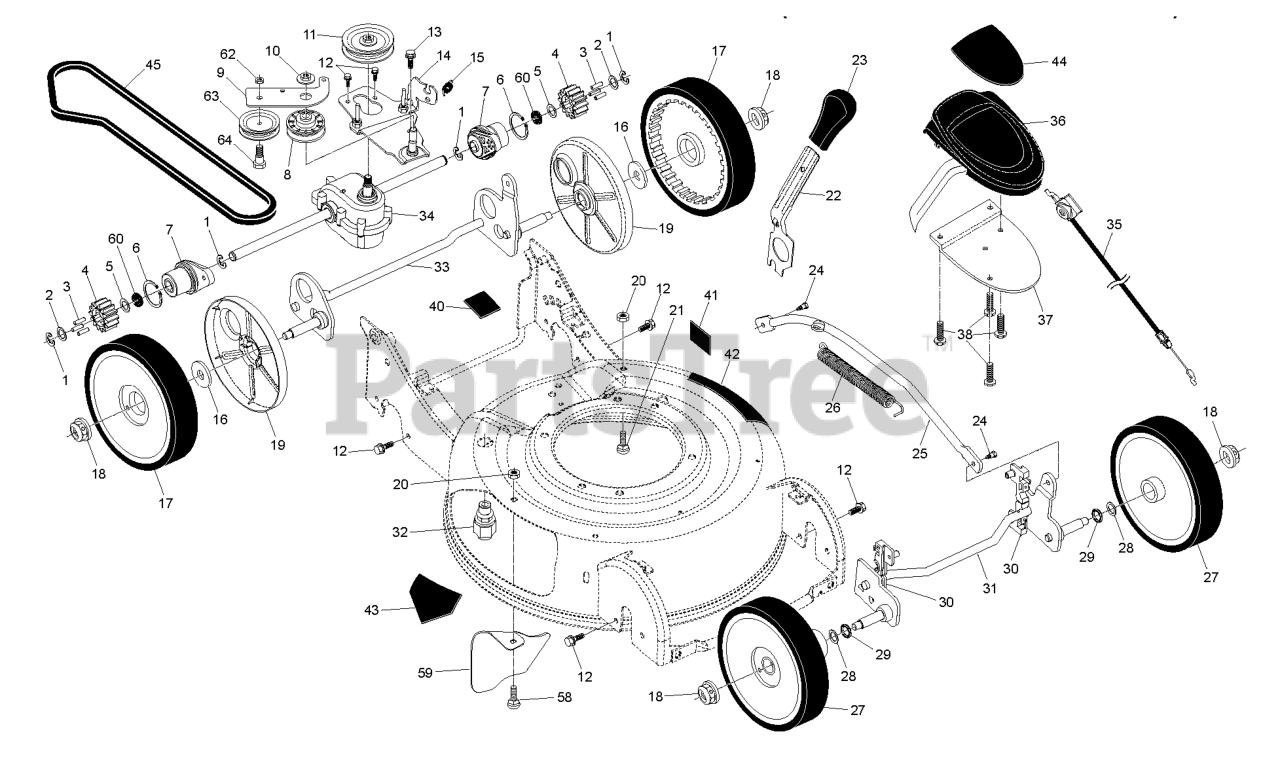

R 145 SV (961410131-03) - Husqvarna Walk-Behind Mower (2009-01) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

43

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532167653

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 532194124

SPRING.RETURN

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 17

0

24

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532199731

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 532413519

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 532401553

NEEDS DESCRIPTION

$

$

Currently unavailable

32

Husqvarna 532400094

NEEDS DESCRIPTION

$102.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532199912

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

In Stock, Qty 6

0

7

Husqvarna 532400134

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 17

0

1

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 12

0

21

Husqvarna 872110407

BOLT.CARRIAGE.1/4-20 X 7/8

$

$

Not available

41

Husqvarna 532159736

DECAL

$

$

Not available

8

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

9

Husqvarna 532166043

IDLER PULLEY

$34.99

$

In Stock, only 2 left!

0

4

Husqvarna 532166450

PINION.DRIVE.WALK

$9.49

$

In Stock, only 1 left!

0

33

Husqvarna 532414073

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 532199225

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, only 3 left!

0

38

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

3

Husqvarna 532170011

PAWL.DRIVE.ETCHED

$

$

Not available

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

30

Husqvarna 532413520

BUSHING.FRONT.TORQUE.S
(Superseded to 584465001)

$

$

Not available

34

Husqvarna 532199231

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 532401551

CONTROL.DR.HV.RGD.GRY/BLU.45CM
(Superseded to 583270901)

$

$

Not available

44

Husqvarna 532424245

Decal, Drive Control

$

$

Currently unavailable

20

Husqvarna 532400100

NUT, HEX
(Superseded to 596041001)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 10

0

11

Husqvarna 532193443

PULLEY.1.PIECE

$17.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532088118

WASHER

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532163409

SCREW

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532414071

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

14

Husqvarna 532401113

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532409616

SPRING EXTENSION

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 532407142

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$31.99

$

In Stock, only 2 left!

0

2

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 20+

0

37

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available
