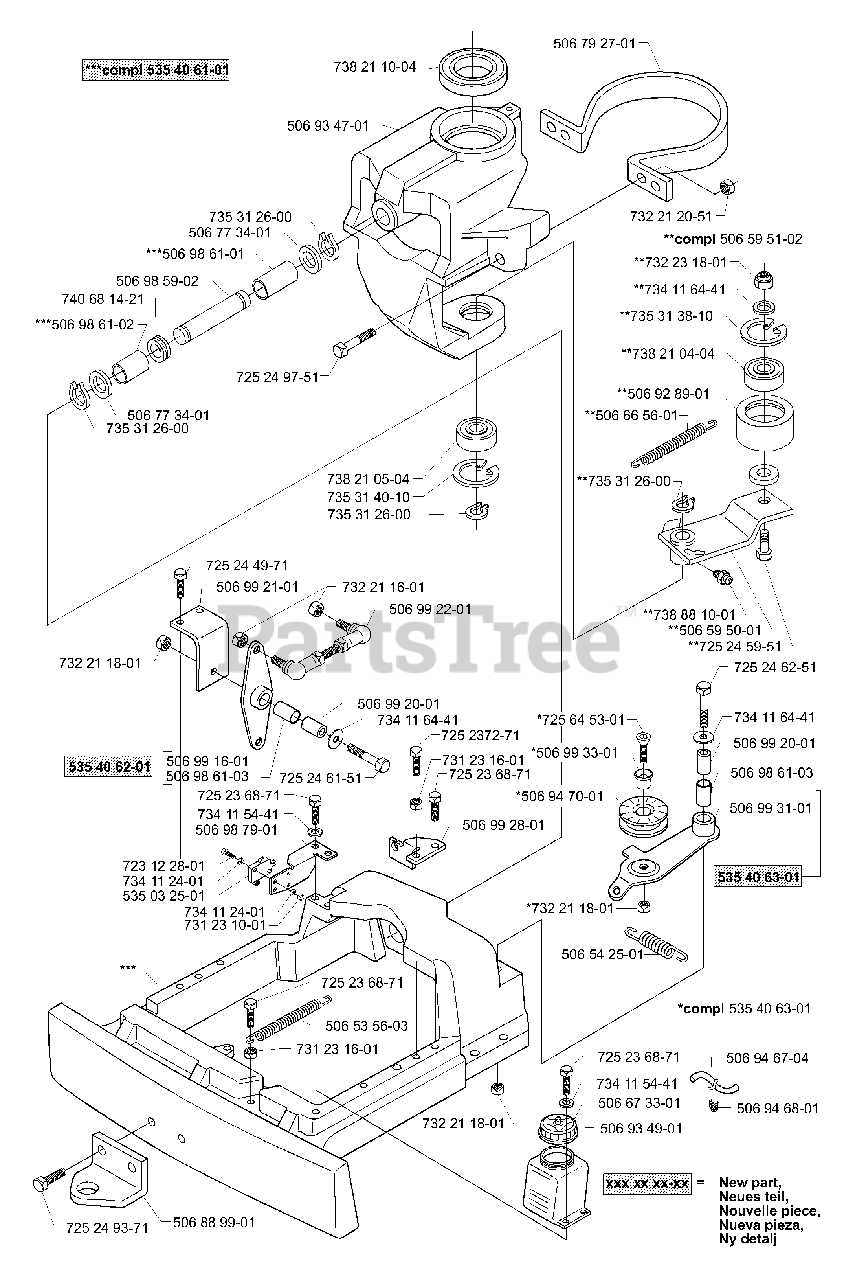

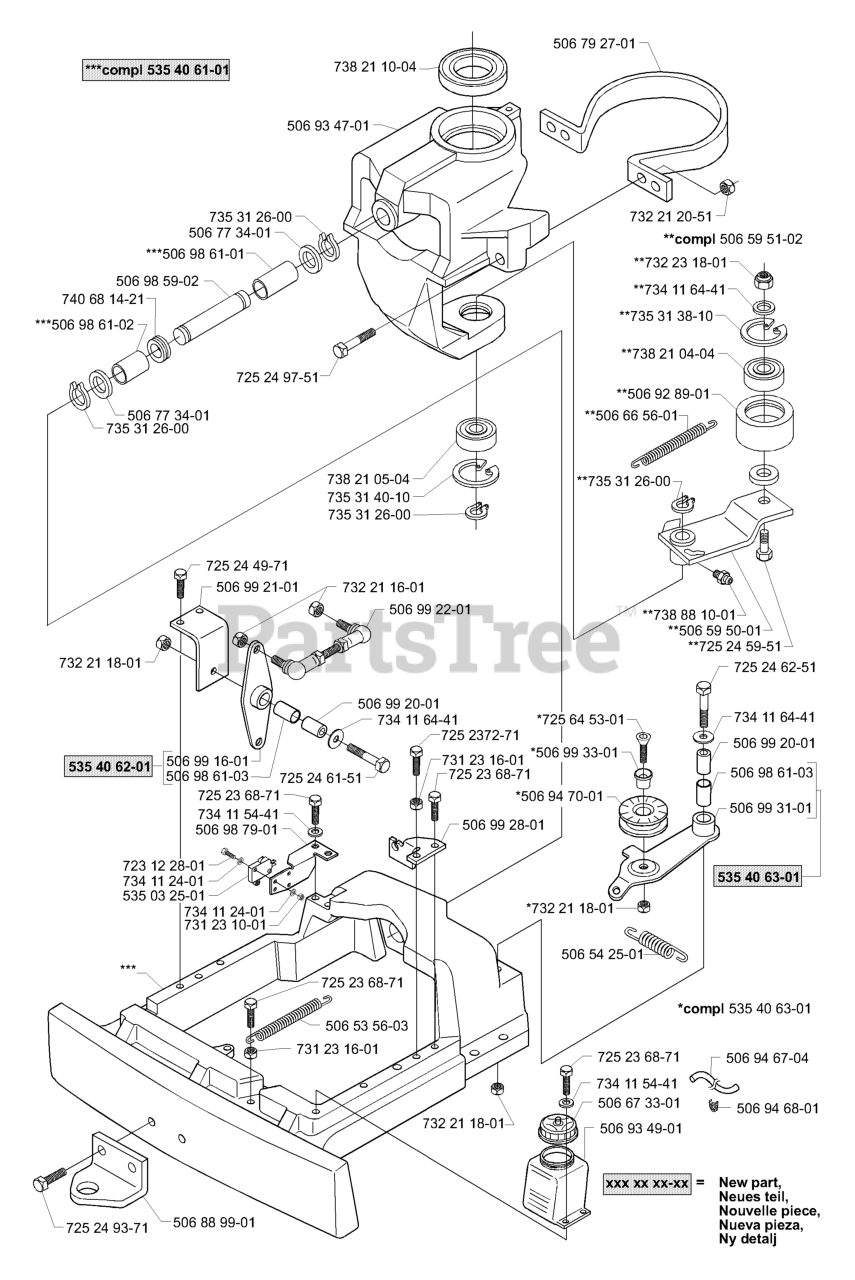

R 15 Pro - Husqvarna Swedish Riding Mower (2001-02) Rear Section Parts Diagram

Swedish Riding Mower

Rear Section Parts Diagram

  • Title

535406101

Husqvarna 535406101

BRACKET

$

$

Not available

735312600

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, only 3 left!

0

506773401

Husqvarna 506773401

WASHER

$6.99

$

In Stock, only 2 left!

0

506986101

Husqvarna 506986101

BUSHING
(Superseded to 506986102)

$26.99

$

Usually ships in 3-10 days

0

506985902

Husqvarna 506985902

SHAFT
(Superseded to 535463001)

$

$

Not available

740681421

Husqvarna 740681421

V-RING

$6.99

$

Usually ships in 3-10 days

0

506986102

Husqvarna 506986102

BUSHING

$26.99

$

Usually ships in 3-10 days

0

725249751

Husqvarna 725249751

SCREW

$7.99

$

Usually ships in 3-10 days

0

506773401

Husqvarna 506773401

WASHER

$6.99

$

In Stock, only 2 left!

0

735312600

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, only 3 left!

0

725244971

Husqvarna 725244971

REPL BY 725 24 49-51
(Superseded to 725244951)

$4.99

$

In Stock, only 2 left!

0

506992101

Husqvarna 506992101

BRACKET

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

535406201

Husqvarna 535406201

ARM

$

$

Not available

506991601

Husqvarna 506991601

ARM
(Superseded to 535406201)

$

$

Not available

506986103

Husqvarna 506986103

BEARING

$

$

Not available

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

734115441

Husqvarna 734115441

Washer, M6
(Superseded to 531003379)

$4.99

$

In Stock, Qty 13

0

506987901

Husqvarna 506987901

BRACKET

$

$

Not available

723122801

Husqvarna 723122801

SCREW

$

$

Not available

734112401

Husqvarna 734112401

WASHER BRB 3.2X7

$

$

Not available

535032501

Husqvarna 535032501

SWITCH
(Superseded to 535469201)

$20.99

$

Usually ships in 3-10 days

0

734112401

Husqvarna 734112401

WASHER BRB 3.2X7

$

$

Not available

731231001

Husqvarna 731231001

NUT M6M M3

$3.99

$

In Stock, only 1 left!

0

725249371

Husqvarna 725249371

Screw, M10 X 25

$

$

Not available

506889901

Husqvarna 506889901

DRAW RING

$31.99

$

Usually ships in 3-10 days

0

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

731231601

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

506535603

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

506992801

Husqvarna 506992801

BRACKET

$

$

Not available

506947001

Husqvarna 506947001

PULLEY

$34.99

$

Usually ships in 3-10 days

0

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

731231601

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

725246151

Husqvarna 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

725237271

Husqvarna 725237271

SCREW

$4.99

$

In Stock, only 3 left!

0

734116441

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

506992001

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

506992201

Husqvarna 506992201

ROD

$

$

Not available

732211601

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

735312600

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, only 3 left!

0

735314010

Husqvarna 735314010

CIRCLIP SGH 47

$7.99

$

In Stock, only 1 left!

0

738210504

Husqvarna 738210504

Ball Bearing

$33.45

$

Usually ships in 3-10 days

0

506934701

Husqvarna 506934701

SPINDLE

$

$

Not available

738211004

Husqvarna 738211004

BALL BEARING 6010 2RS1

$113.99

$

Usually ships in 3-10 days

0

506792701

Husqvarna 506792701

GUIDE PLATE

$

$

Not available

732212051

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

506595102

Husqvarna 506595102

TENSIONER
(Superseded to 535484402)

$74.99

$

Usually ships in 3-10 days

0

732231801

Husqvarna 732231801

LOCKNUT M8
(Superseded to 732211801)

$5.99

$

In Stock, Qty 13

0

734116441

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

735313810

Husqvarna 735313810

RETAINING RING

$5.99

$

In Stock, only 1 left!

0

738210404

Husqvarna 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

506928901

Husqvarna 506928901

%PULLEY
(Superseded to 505153901)

$82.99

$

In Stock, only 1 left!

0

506665601

Husqvarna 506665601

SPRING

$

$

Not available

735312600

Husqvarna 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, only 3 left!

0

738881001

Husqvarna 738881001

GREASE NIPPLE

$10.99

$

Usually ships in 3-10 days

0

506595001

Husqvarna 506595001

LEVER

$

$

Not available

725245951

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

725246251

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0

734116441

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

506992001

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

506986103

Husqvarna 506986103

BEARING

$

$

Not available

506993101

Husqvarna 506993101

TENSIONER
(Superseded to 506993001)

$148.99

$

Usually ships in 3-10 days

0

725645301

Husqvarna 725645301

SCREW

$6.99

$

In Stock, only 1 left!

0

506993301

Husqvarna 506993301

SLEEVE

$9.49

$

In Stock, only 2 left!

0

535406301

Husqvarna 535406301

IDLER ARM

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506542501

Husqvarna 506542501

SPRING

$

$

Not available

535406301

Husqvarna 535406301

IDLER ARM

$

$

Not available

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

734115441

Husqvarna 734115441

Washer, M6
(Superseded to 531003379)

$4.99

$

In Stock, Qty 13

0

506673301

Husqvarna 506673301

FUEL CAP

$45.99

$

In Stock, only 1 left!

0

506946704

Husqvarna 506946704

HOSE

$

$

Not available

506946801

Husqvarna 506946801

CLIP

$

$

Not available

506934901

Husqvarna 506934901

TANK

$

$

Not available
