R 15 Ts AWD - Husqvarna Swedish Riding Mower (2010-07) CHASSIS / FRAME Parts Diagram

Swedish Riding Mower

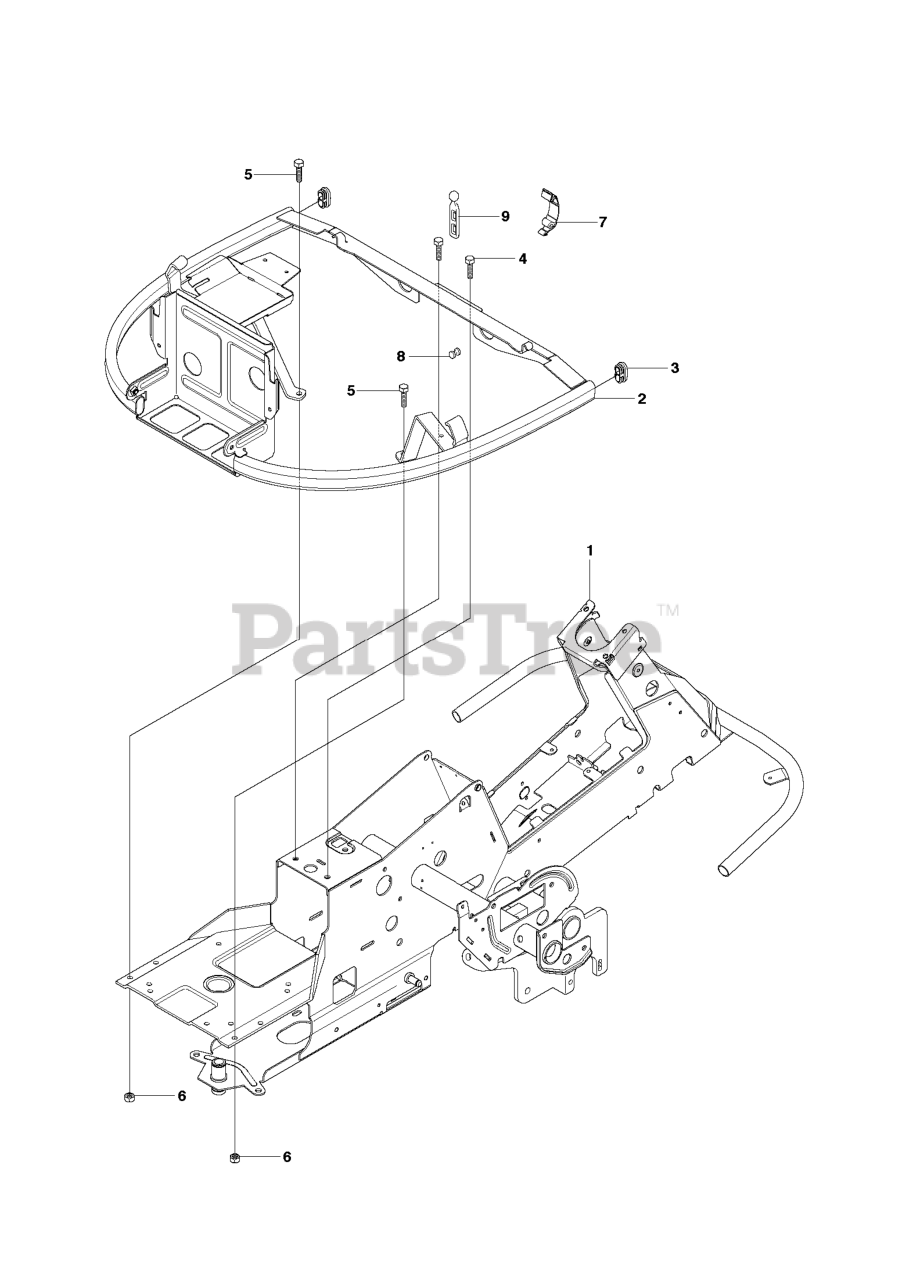

CHASSIS / FRAME Parts Diagram

  • Title

3

Husqvarna 544244401

PLUG

$

$

Not available

4

Husqvarna 506570103

BOLT

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

1

Husqvarna 502655601

$

$

Currently unavailable

7

Husqvarna 503894703

CLIP GRAY

$11.99

$

In Stock, Qty 14

0

5

Husqvarna 725245171

SCREW

$2.49

$

In Stock, Qty 5

0

2

Husqvarna 544244203

$

$

Currently unavailable

9

Husqvarna 506599601

Support Strap

$

$

Not available

8

Husqvarna 506599501

Button

$

$

Not available
