R 15 Ts AWD - Husqvarna Swedish Riding Mower (2010-07) ENGINE 2 Parts Diagram

Swedish Riding Mower

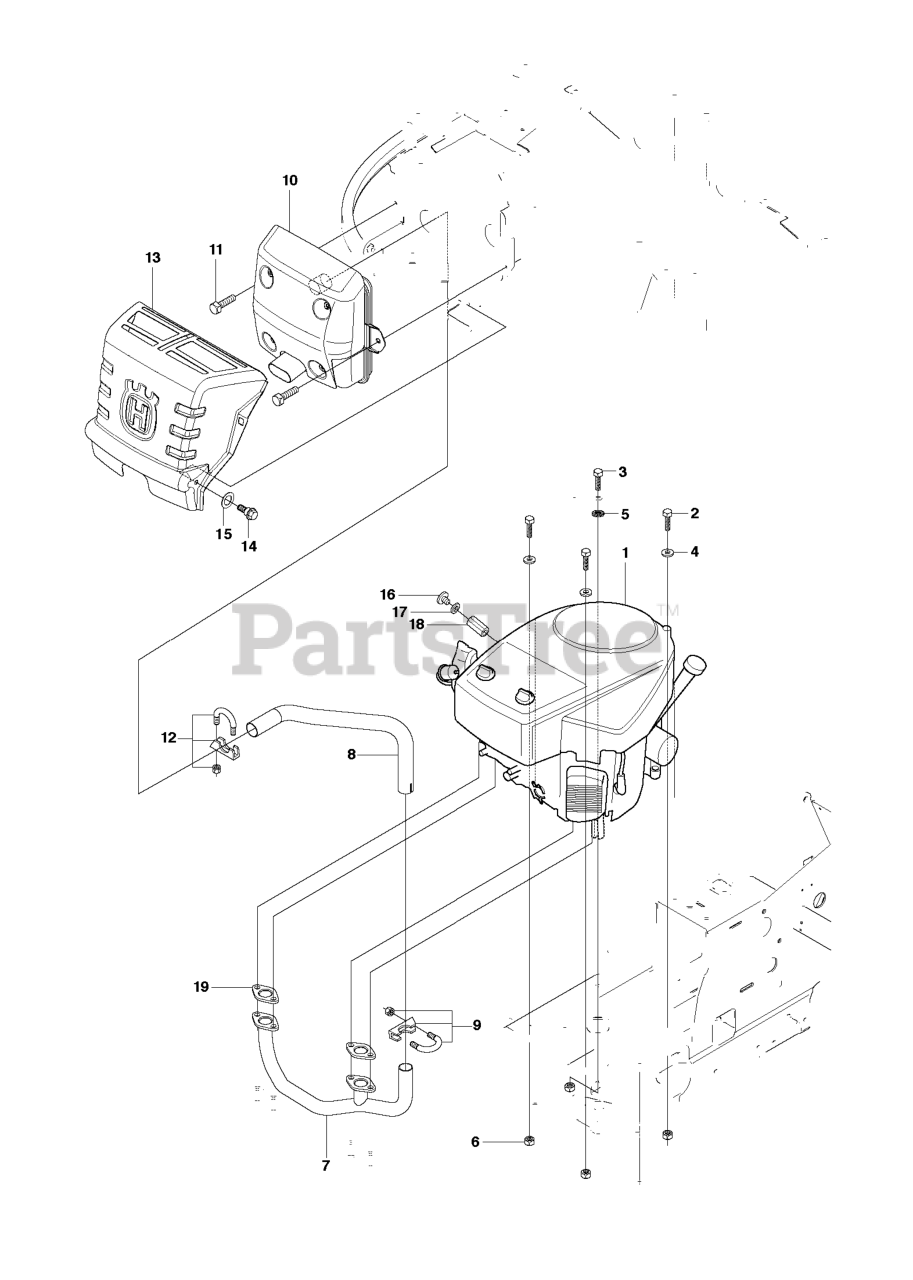

ENGINE 2 Parts Diagram

  • Title

5

Husqvarna 735216400

Washer

$

$

Not available

16

Husqvarna 535414460

PLUG

$

$

Not available

17

Husqvarna 531001190

O-RING

$

$

Not available

19

Husqvarna 535414236

GASKET

$

$

Not available

2

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 725245951

SCREW

$7.99

$

In Stock, only 1 left!

0

6

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

4

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

11

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510131401

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 544335702

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 535414416

JOINT

$

$

Not available

15

Husqvarna 506839401

SPRINGWASHER

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544013301

PIPE KAWASAKI

$

$

Not available

13

Husqvarna 544248301

HEAT PROTECTOR

$

$

Not available

1

Husqvarna 535451901

MOTOR

$

$

Not available
