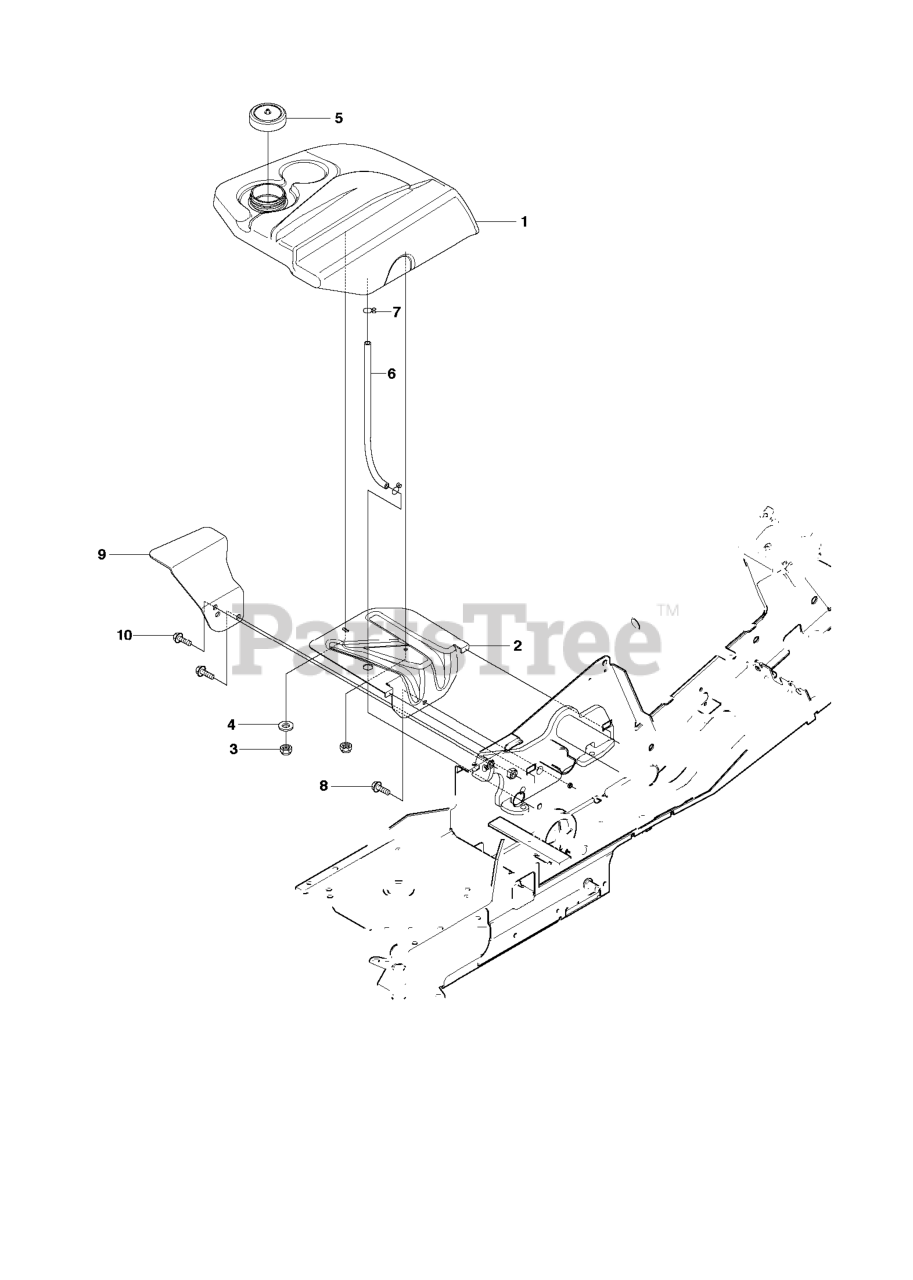

R 15 Ts AWD - Husqvarna Swedish Riding Mower (2010-07) FUEL SYSTEM Parts Diagram

Swedish Riding Mower

FUEL SYSTEM Parts Diagram

  • Title

4

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

2

Husqvarna 544329301

BRACKET

$

$

Not available

6

Husqvarna 504800003

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 725249371

Screw M10x25

$

$

Not available

8

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506673301

FUEL CAP

$45.99

$

In Stock, only 1 left!

0

7

Husqvarna 535469701

CLAMP

$

$

Not available

3

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 535501301

FUEL TANK

$

$

Not available

9

Husqvarna 501020301

SUPPORT

$

$

Not available
