R 152 (954170217-02) - Husqvarna Walk-Behind Mower (2005-02) GEAR CASE Parts Diagram

Walk-Behind Mower

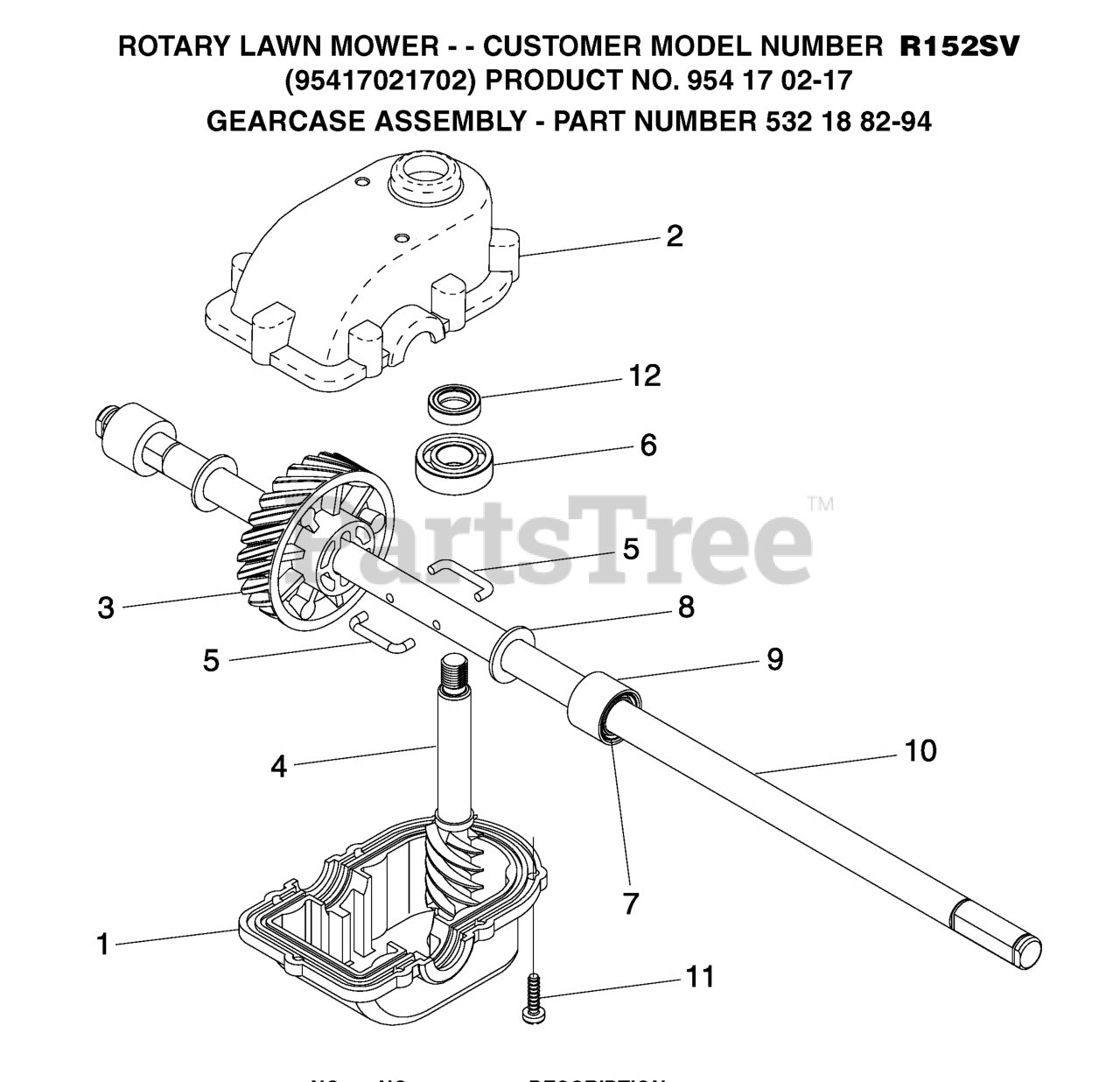

GEAR CASE Parts Diagram

  • Title

5

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 532183511

BUSHING

$

$

Not available

10

Husqvarna 532191247

SHAFT OUTPUT

$85.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532191245

GEARCASE.HOUSING

$

$

Not available

- -

Husqvarna 532750369

GREASE
(Superseded to 585517301)

$

$

Not available

12

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 1 left!

0

11

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532191246

WORM GEAR

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

GEAR.24.TOOTH.WALK.MOWER

$

$

Not available

8

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532187530

CASE, LOWER

$

$

Not available

7

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0

6

Husqvarna 532183506

BEARING

$6.99

$

In Stock, only 1 left!

0
