R 152 (961410063-03) - Husqvarna Walk-Behind Mower (2008-02) GEAR CASE Parts Diagram

Walk-Behind Mower

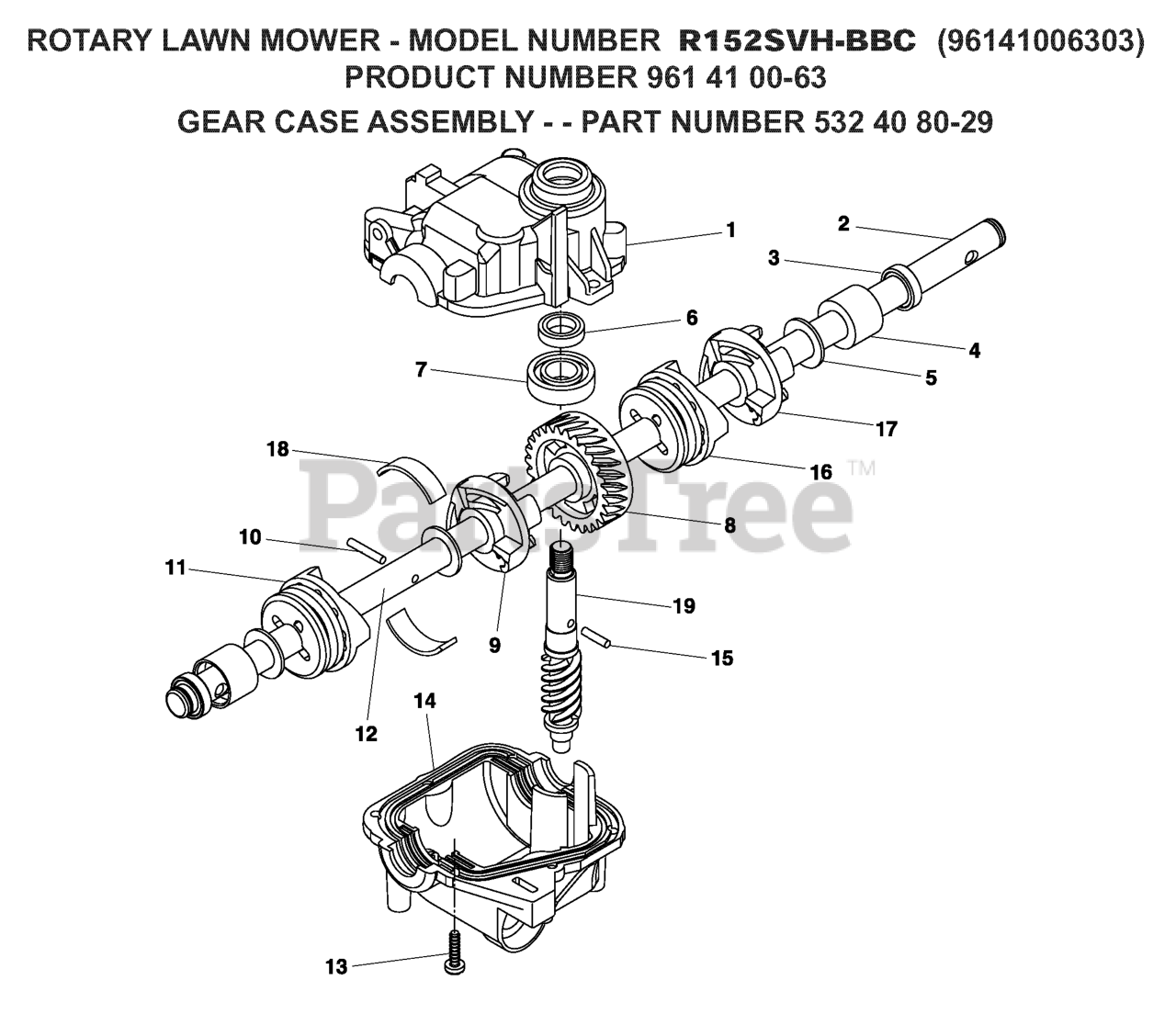

GEAR CASE Parts Diagram

  • Title

10

Husqvarna 532412746

PIN 3.50.337 - 33733

$

$

Not available

6

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

13

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532410731

SPRING LEAF

$8.49

$

In Stock, Qty 8

0

17

Husqvarna 532412743

DOG.MOVEABLE.RH.32006

$

$

Not available

14

Husqvarna 532412747

CASE, LOWER

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532413269

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 532412742

GEAR 28 TEETH

$

$

Not available

12

Husqvarna 532413268

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 532412744

DOG.FIXED.RH.32004

$

$

Not available

1

Husqvarna 532412736

CASE UPPER

$23.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532413267

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532183511

BUSHING

$

$

Not available

15

Husqvarna 532412741

PIN 7 33732

$10.99

$

In Stock, only 4 left!

0

9

Husqvarna 532412739

DOG.FIXED.LH.32003

$

$

Not available

11

Husqvarna 532412740

DOG.MOVEABLE.LH.32005

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$9.99

$

In Stock, Qty 7

0

7

Husqvarna 532183506

BEARING

$

$

Not available
