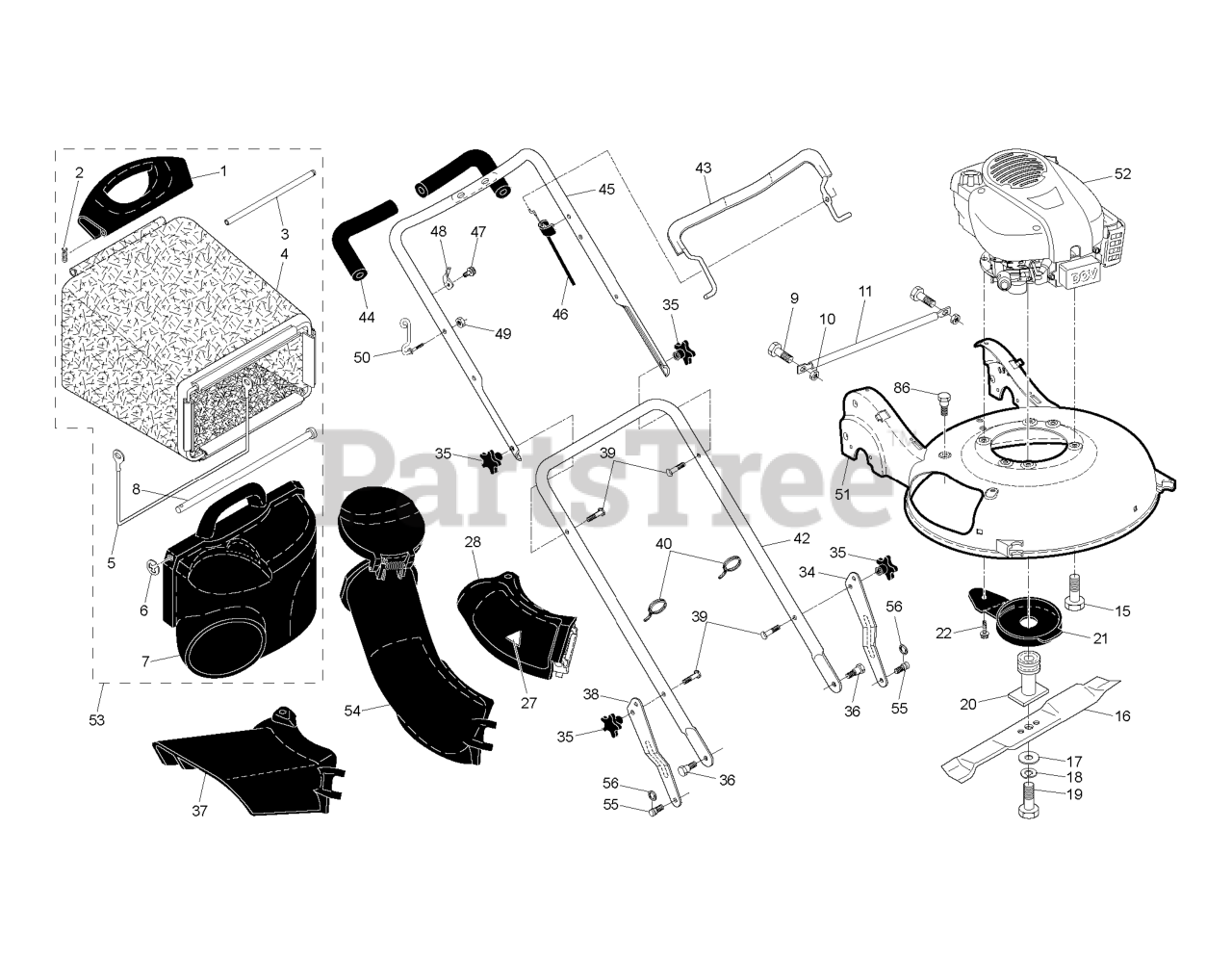

R 152 (961410064-06) - Husqvarna Walk-Behind Mower (2010-02) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

51

Husqvarna 532433429

NEEDS DESCRIPTION

$

$

Currently unavailable

48

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

$62.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532190619

ADJUSTMENT BRACKET, LOWER LH
(Superseded to 532187063)

$

$

Not available

39

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

52

NEEDS DESCRIPTION

Note: Engine, Briggs & Stratton, Model Number 100602- 2980-B8 (Order parts from Engine Manufacturer)

$

$

Not available

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817600406

SCREW 1/4X20

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 872140405

BOLT T

$3.99

$

In Stock, Qty 7

0

8

Husqvarna 532183479

ROD, PIVOT

$17.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$39.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532186766

ADAPTER.BLADE

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532401896

Grassbag Assembly, Complete

$

$

Currently unavailable

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

$

$

Not available

56

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 12

0

54

Husqvarna 532433359

$

$

Currently unavailable

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532190692

TUBE, REAR SKIRT
(Superseded to 532188359)

$

$

Not available

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$5.99

$

In Stock, only 1 left!

0

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

$

$

Not available

55

Husqvarna 532194192

STUD.SHOULDER.T45.BZP

$5.99

$

In Stock, only 2 left!

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

$

$

Not available

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 2 left!

0

86

Husqvarna 532432234

$

$

Currently unavailable

19

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.99

$

In Stock, only 1 left!

0

46

Husqvarna 532408885

CABLE.MZR.SNAP-IN
(Superseded to 583314001)

$13.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

16

Husqvarna 532415076

Blade, 21"

$

$

Currently unavailable

43

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

5

Husqvarna 532188506

FRAME, GRASSBAG

$28.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-RING

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 532433368

NEEDS DESCRIPTION

$

$

Currently unavailable

47

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 4 left!

0

4

Husqvarna 532401898

Grassbag

$

$

Currently unavailable

38

Husqvarna 532190621

BRACKET.ADJ.LOWER.HDL.RT.GREY

$

$

Not available

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$

$

Not available

49

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532194187

SCREW.5/16X.680.TRIM.H

$

$

Not available

21

Husqvarna 532190516

DEBRIS SHEILD
(Superseded to 532188510)

$

$

Not available

37

Husqvarna 532433420

$

$

Currently unavailable

35

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$6.99

$

In Stock, Qty 19

0
