R 152 SV (961410134-02) - Husqvarna Walk-Behind Mower (2008-02) GEAR CASE Parts Diagram

Walk-Behind Mower

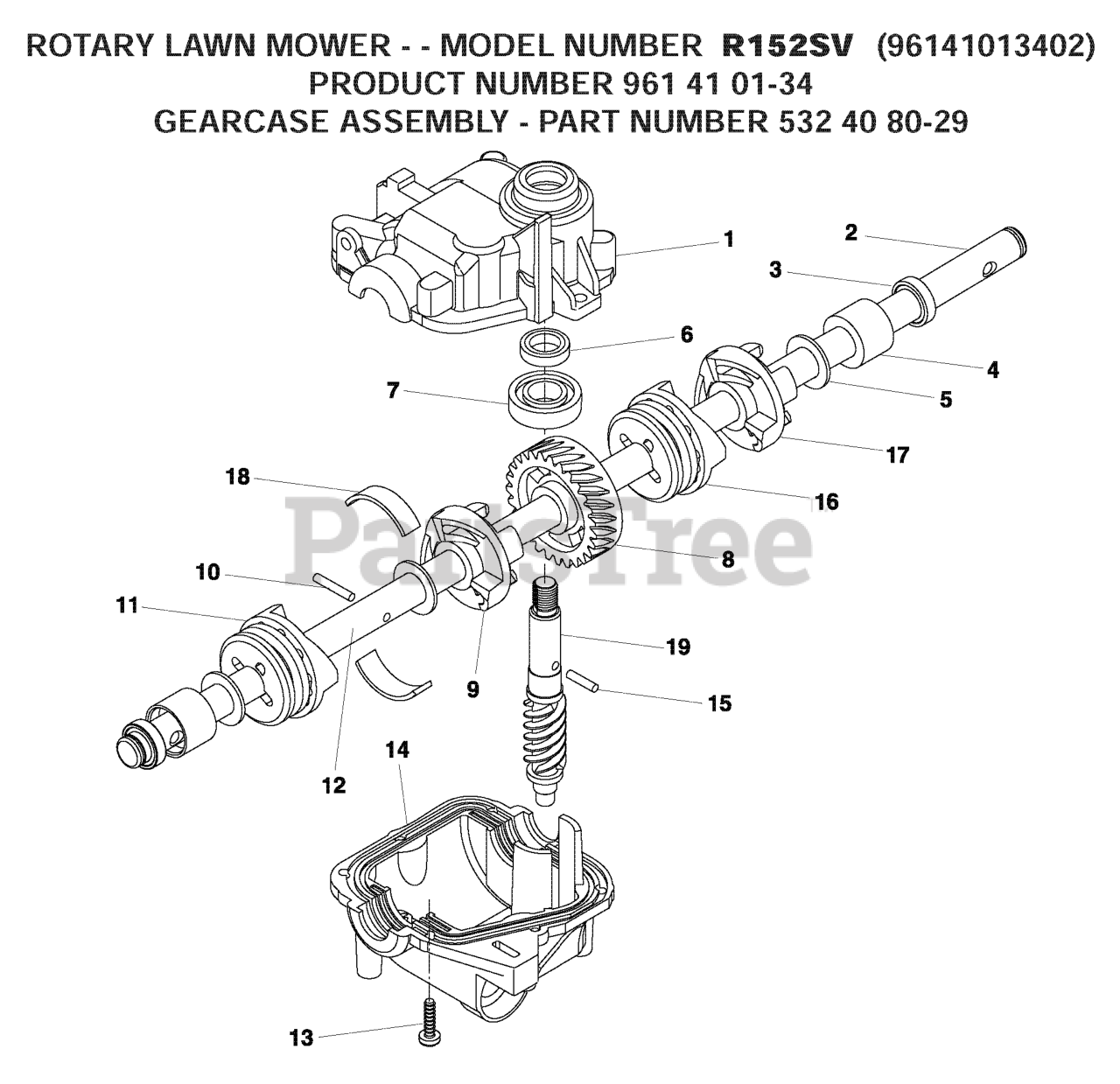

GEAR CASE Parts Diagram

  • Title

9

Husqvarna 532412740

DOG.MOVEABLE.LH.32005

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532413268

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532412744

DOG.FIXED.RH.32004

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532412736

CASE UPPER

$15.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532412742

GEAR 28 TEETH

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532412746

PIN 3.50.337 - 33733

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532412741

PIN 7 33732

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532412743

DOG.MOVEABLE.RH.32006

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532412747

CASE, LOWER

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532413269

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 532410731

SPRING LEAF

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532413267

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 532412739

DOG.FIXED.LH.32003

$4.99

$

Usually ships in 3-10 days

0
