R 155 (965178601) - Husqvarna Swedish Riding Mower (2007-03) ENGINE Parts Diagram

Swedish Riding Mower

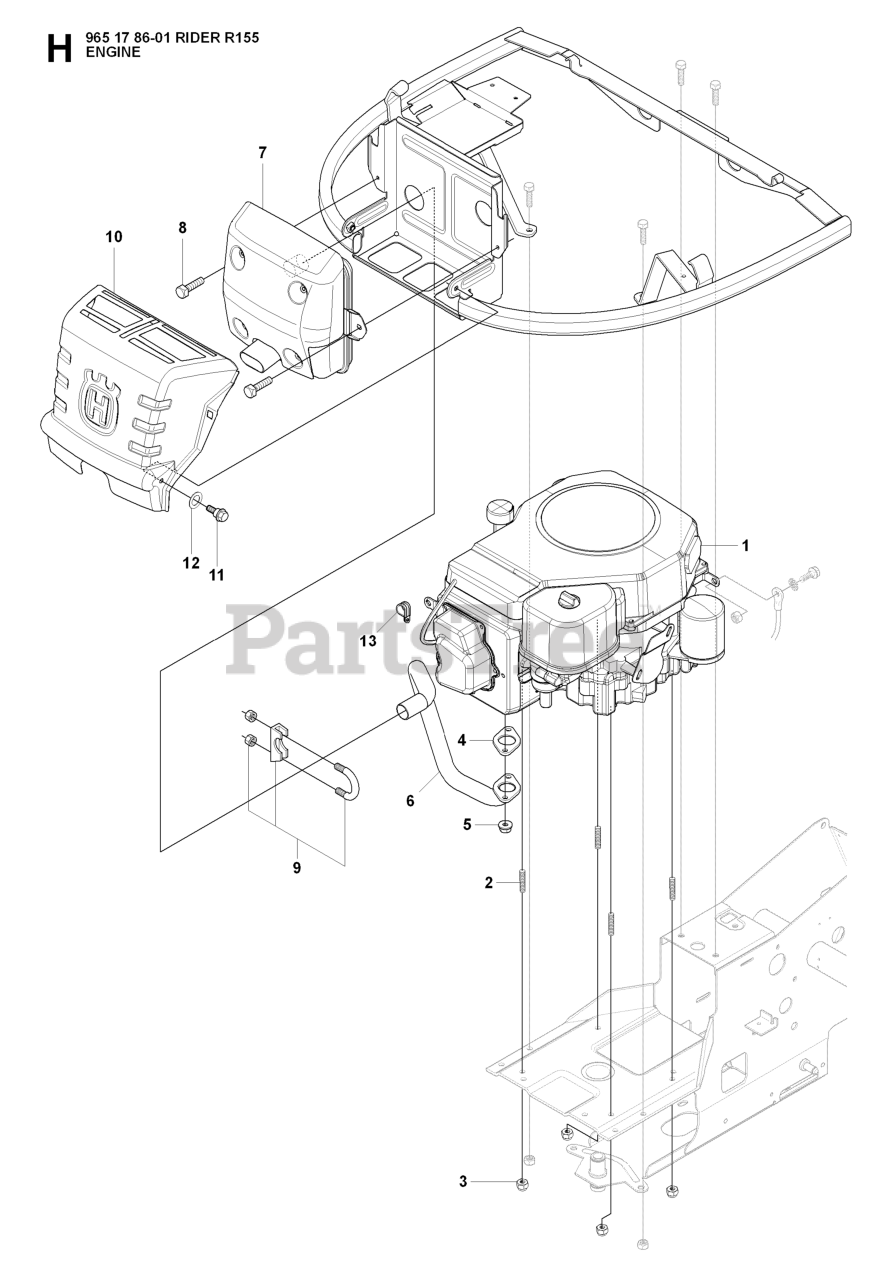

ENGINE Parts Diagram

  • Title

13

Husqvarna 502494501

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 506839401

SPRINGWASHER

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 535415104

NUT

$2.49

$

In Stock, Qty 15

0

10

Husqvarna 544248301

HEAT PROTECTOR

$

$

Not available

6

Husqvarna 544013401

EXHAUST PIPE ASSY

$

$

Not available

1

Husqvarna 535490001

$

$

Currently unavailable

2

Husqvarna 535461801

STUD

$5.99

$

In Stock, Qty 6

0

11

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 2 left!

0

4

Husqvarna 535415103

EXHAUST GASKET

$7.49

$

In Stock, Qty 8

0

3

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

7

Husqvarna 544335701

MUFFLER ASSY

$

$

Not available

8

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0
