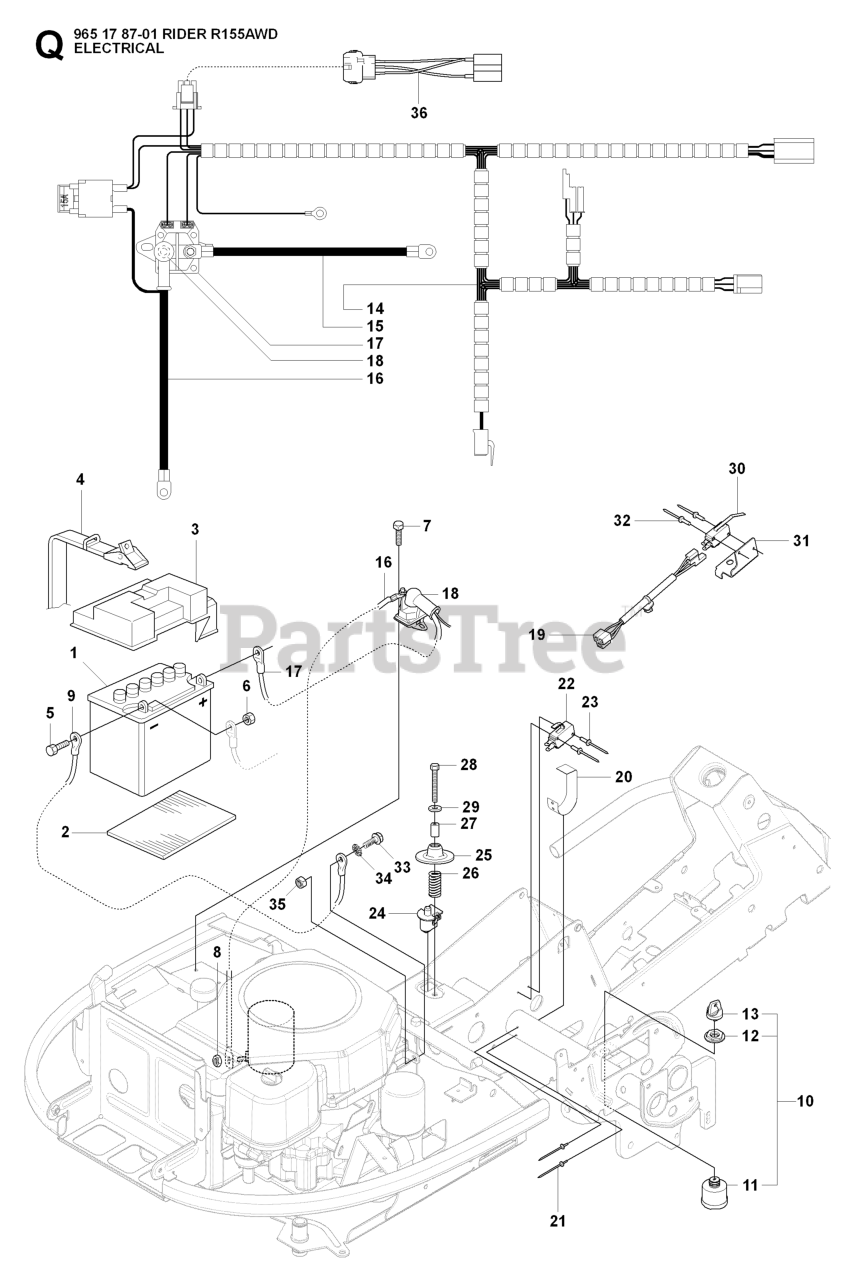

R 155 AWD (965178701) - Husqvarna Swedish Riding Mower (2007-03) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title

23

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506570103

BOLT

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 535469101

%BRAKER
(Superseded to 574316001)

$17.99

$

In Stock, only 1 left!

0

26

Husqvarna 544441201

SPRING

$

$

Not available

25

Husqvarna 506909701

WASHER

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 544415501

RP MICRO SWITCH
(Superseded to 574316101)

$17.99

$

In Stock, only 1 left!

0

35

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

4

Husqvarna 506836802

BELT

$20.99

$

Usually ships in 3-10 days

0

21

Husqvarna 722783902

Rivet

$

$

Not available

15

Husqvarna 544928601

CABLE

$

$

Not available

18

Husqvarna 506899801

NUT

$

$

Not available

5

Husqvarna 725237071

SCREW

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 544926301

WIRING

$

$

Not available

28

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

1

Husqvarna 506788801

BATTERY - DRY
(Superseded to 531031071)

$

$

Not available

12

Husqvarna 544442301

NUT

$3.49

$

In Stock, only 1 left!

0

36

Husqvarna 535453502

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 506899801

NUT

$

$

Not available

17

Husqvarna 544439801

RELAY

$22.99

$

In Stock, only 2 left!

0

24

Husqvarna 506909601

SWITCH

$31.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 506550810

CABLE

$

$

Not available

32

Husqvarna 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544442201

IGNITION SWITCH

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544442401

IGNITION KEY

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506909301

SPRING

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

7

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544926101

RP CABLE

$

$

Not available

19

Husqvarna 544892201

WIRING

$22.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506809901

Cover

$

$

Not available

2

Husqvarna 535441101

MAT

$

$

Not available

10

Husqvarna 544442101

IGNITION SWITCH

$31.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506909902

SPACER TUBE

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 544415701

BRACKET

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 735216400

Washer

$

$

Not available
