R 16 C AWD (966830301) - Husqvarna Swedish Riding Mower (2009-04) MOWER LIFT / DECK LIFT Parts Diagram

Swedish Riding Mower

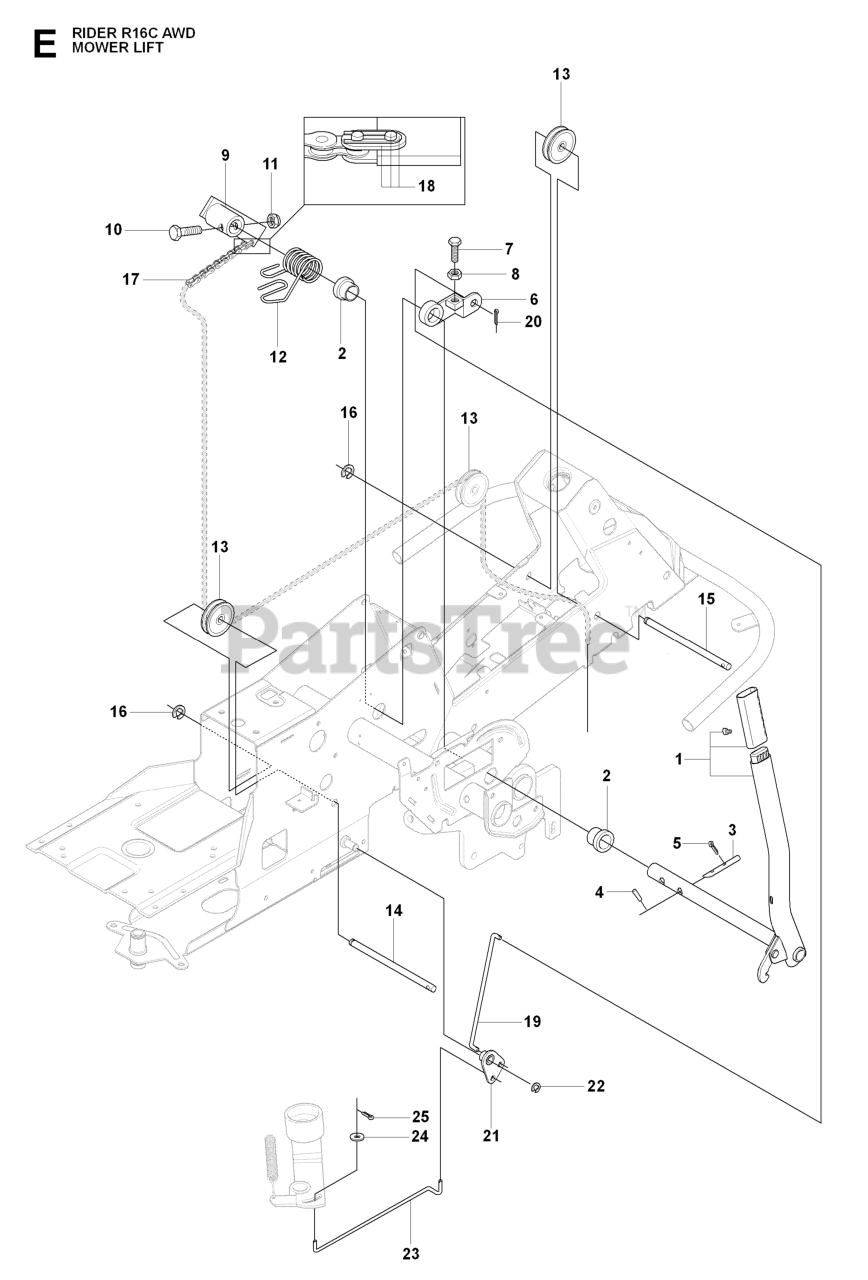

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

12

Husqvarna 506916801

SPRING

$13.99

$

In Stock, only 1 left!

0

18

Husqvarna 506554701

LINK

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732252201

Nut

$1.49

$

In Stock, Qty 5

0

5

Husqvarna 721618301

Split Pin

$

$

Not available

21

Husqvarna 544378601

LINK

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506905702

SHAFT

$

$

Not available

19

Husqvarna 544456901

CONNECTION ROD

$14.99

$

In Stock, only 1 left!

0

6

Husqvarna 506784301

LEVER CLUTCH

$79.99

$

Usually ships in 3-10 days

0

4

Husqvarna 721125930

PIN

$

$

Not available

23

Husqvarna 544448801

CONNECTION ROD

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 721618301

Split Pin

$

$

Not available

7

Husqvarna 725249751

SCREW

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506905301

RP PIN
(Superseded to 525406601)

$12.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501018601

LIFTING LEVER ASSY
(Superseded to 501018602)

$

$

Not available

8

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

2

Husqvarna 506556501

BEARING FLANGE
(Superseded to 584871301)

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506554609

CHAIN

$66.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506905601

PULLEY

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 721618301

Split Pin

$

$

Not available

9

Husqvarna 544433601

LIFTING ARM

$

$

Not available

22

Husqvarna 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 725254251

Screw

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 735311820

Lock Ring

$

$

Not available

14

Husqvarna 506905701

SHAFT

$

$

Not available
