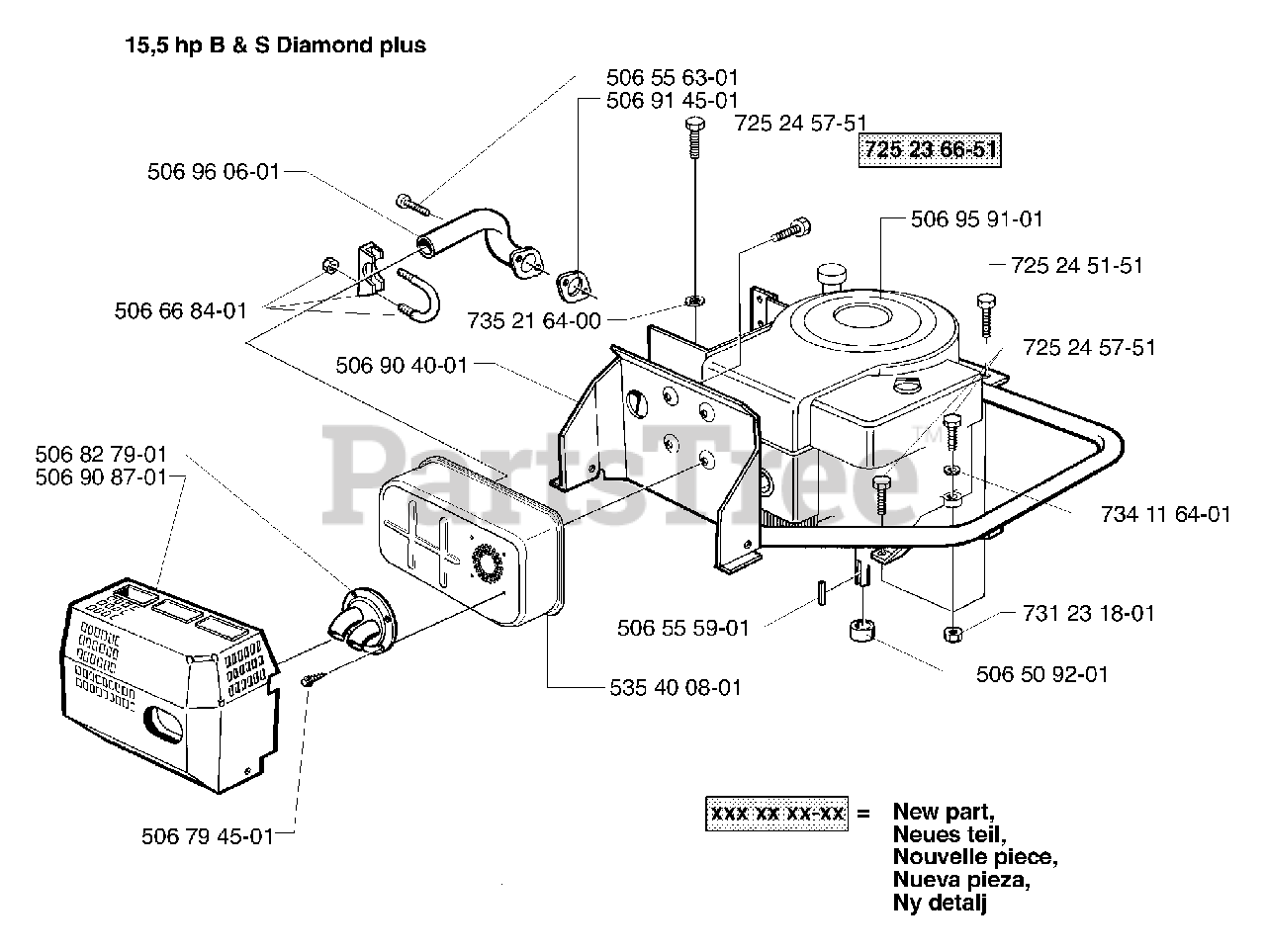

R 16 - Husqvarna Swedish Riding Mower (2002-02) Engine Parts Diagram

Swedish Riding Mower

Engine Parts Diagram

  • Title

506960601

Husqvarna 506960601

Pipe

$

$

Not available

506668401

Husqvarna 506668401

Clamp
(Superseded to 501152201)

$5.99

$

In Stock, only 4 left!

0

506904001

Husqvarna 506904001

Bracket

$

$

Not available

735216400

Husqvarna 735216400

Washer

$

$

Not available

506827901

Husqvarna 506827901

Pipe

$79.99

$

Usually ships in 3-10 days

0

506908701

Husqvarna 506908701

Heat Shield

$

$

Not available

506794501

Husqvarna 506794501

Screw

$4.99

$

In Stock, only 4 left!

0

506555901

Husqvarna 506555901

Key

$6.99

$

In Stock, only 1 left!

0

535400801

Husqvarna 535400801

Muffler
(Superseded to 584617401)

$226.99

$

Usually ships in 3-10 days

0

506509201

Husqvarna 506509201

Spacer

$12.99

$

In Stock, only 1 left!

0

731231801

Husqvarna 731231801

Nut
(Superseded to 695008078)

$

$

Not available

734116401

Husqvarna 734116401

Washer Brb 8.4x17

$6.49

$

In Stock, only 4 left!

0

725245751

Husqvarna 725245751

Screw

$7.99

$

In Stock, only 1 left!

0

725245151

Husqvarna 725245151

Screw 8x20

$5.99

$

In Stock, only 4 left!

0

506959101

Husqvarna 506959101

$

$

Currently unavailable

725236651

Husqvarna 725236651

Screw

$4.99

$

In Stock, only 3 left!

0

725245751

Husqvarna 725245751

Screw

$7.99

$

In Stock, only 1 left!

0

506556301

Husqvarna 506556301

Bolt

$5.99

$

Usually ships in 3-10 days

0

506914501

Husqvarna 506914501

Flange

$7.99

$

Usually ships in 3-10 days

0
