R 175 AWD (965105001) - Husqvarna Swedish Riding Mower (2008-06) MOWER DECK / CUTTING DECK 4 Parts Diagram

Swedish Riding Mower

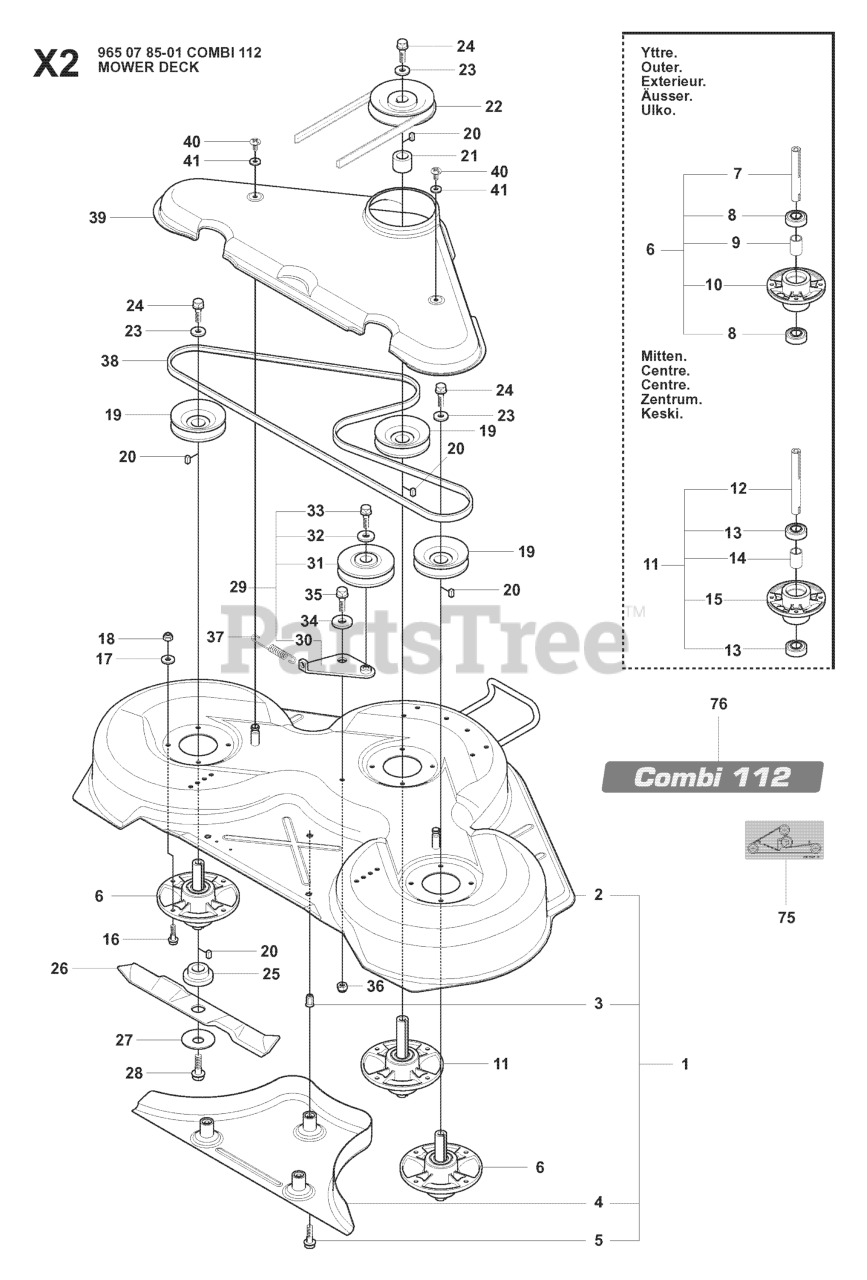

MOWER DECK / CUTTING DECK 4 Parts Diagram

  • Title

13

Husqvarna 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

75

Husqvarna 506789701

Decal

$

$

Not available

37

Husqvarna 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

18

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

38

Husqvarna 535411901

BELT
(Superseded to 594978001)

$84.99

$

In Stock, Qty 7

0

9

Husqvarna 544068001

SPACER

$

$

Not available

8

Husqvarna 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

32

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544068002

SPACER

$14.99

$

In Stock, only 3 left!

0

34

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

5

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

2

Husqvarna 544113101

CUTTING DECK ASSY C112 GREY

$

$

Not available

26

Husqvarna 504188110

BLADE

$36.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

23

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

4

Husqvarna 544449301

PLUG

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$94.99

$

Usually ships in 3-10 days

0

40

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

25

Husqvarna 535504202

ADAPTER

$31.99

$

Usually ships in 3-10 days

0

28

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

22

Husqvarna 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544068001

SPACER

$

$

Not available

33

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

76

Husqvarna 544238105

LABEL

$

$

Not available

39

Husqvarna 544096201

BELT COVER

$62.99

$

Usually ships in 3-10 days

0

24

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

11

Husqvarna 544065902

SPINDLE ASSY
(Superseded to 576384101)

$94.99

$

Usually ships in 3-10 days

0

35

Husqvarna 725245171

SCREW

$2.49

$

In Stock, Qty 5

0

36

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

15

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

7

Husqvarna 544067902

SHAFT

$

$

Not available

16

Husqvarna 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 544067901

SHAFT

$

$

Not available

19

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

20

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 544113003

CUTTING DECK C112 GREY RIDER

$

$

Not available

17

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0
