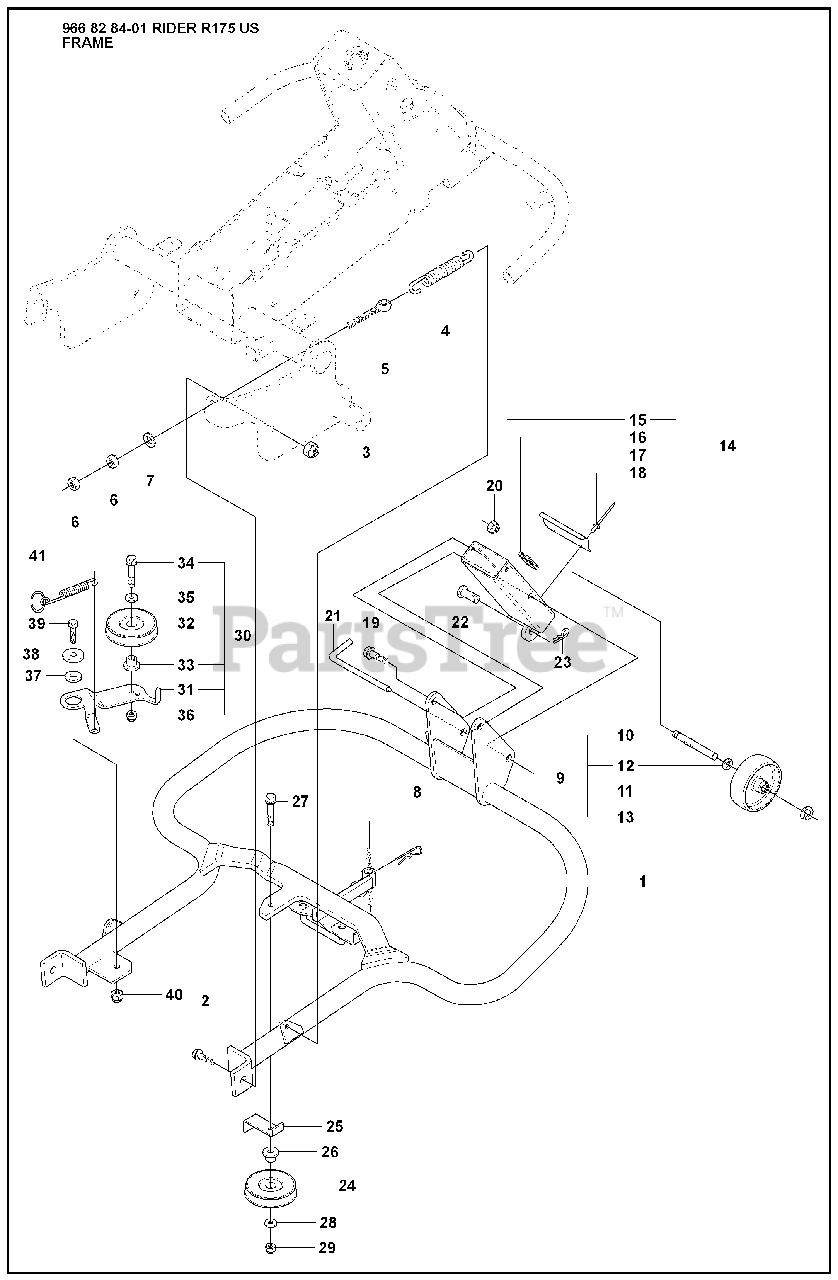

R 175 - Husqvarna Swedish Riding Mower (2008-05) Frame Parts Diagram

Swedish Riding Mower

Frame Parts Diagram

  • Title

1

Husqvarna 535471001

FRAME

$

$

Not available

2

Husqvarna 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$3.49

$

In Stock, Qty 5

0

4

Husqvarna 506837601

SPRING

$50.99

$

In Stock, only 2 left!

0

5

Husqvarna 506837701

SCREW

$14.99

$

In Stock, only 2 left!

0

6

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

7

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 506966601

RETAINER

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506981401

WHEEL ASSY

$

$

Not available

10

Husqvarna 506980001

SHAFT

$

$

Not available

11

Husqvarna 506979601

WHEEL

$

$

Not available

12

Husqvarna 734117771

BUSHING

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506997801

LINK ASSY

$

$

Not available

15

Husqvarna 506997901

LINK

$

$

Not available

16

Husqvarna 506963701

BRACKET

$

$

Not available

17

Husqvarna 506982801

BRACKET

$

$

Not available

18

Husqvarna 722783902

RIVET

$

$

Not available

19

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

21

Husqvarna 506974601

PIN

$22.99

$

In Stock, only 1 left!

0

22

Husqvarna 721861701

BOLT

$

$

Not available

23

Husqvarna 721680251

R-CLIP

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506974801

PULLEY

$82.99

$

In Stock, only 1 left!

0

25

Husqvarna 506975001

GUIDE

$

$

Not available

26

Husqvarna 506826801

BUSHING

$27.99

$

In Stock, only 1 left!

0

27

Husqvarna 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

28

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

30

Husqvarna 506976201

BELT TENSIONER ASSY

$

$

Not available

31

Husqvarna 506976301

ARM

$

$

Not available

32

Husqvarna 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0

33

Husqvarna 506826801

BUSHING

$27.99

$

In Stock, only 1 left!

0

34

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

35

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

37

Husqvarna 506597501

WASHER

$

$

Not available

38

Husqvarna 506982501

WASHER

$

$

Not available

39

Husqvarna 725249571

SCREW

$7.99

$

In Stock, Qty 12

0

40

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

41

Husqvarna 506976801

SPRING

$22.99

$

Usually ships in 3-10 days

0
