R 175 - Husqvarna Swedish Riding Mower (2008-05) Height Adjustment Parts Diagram

Swedish Riding Mower

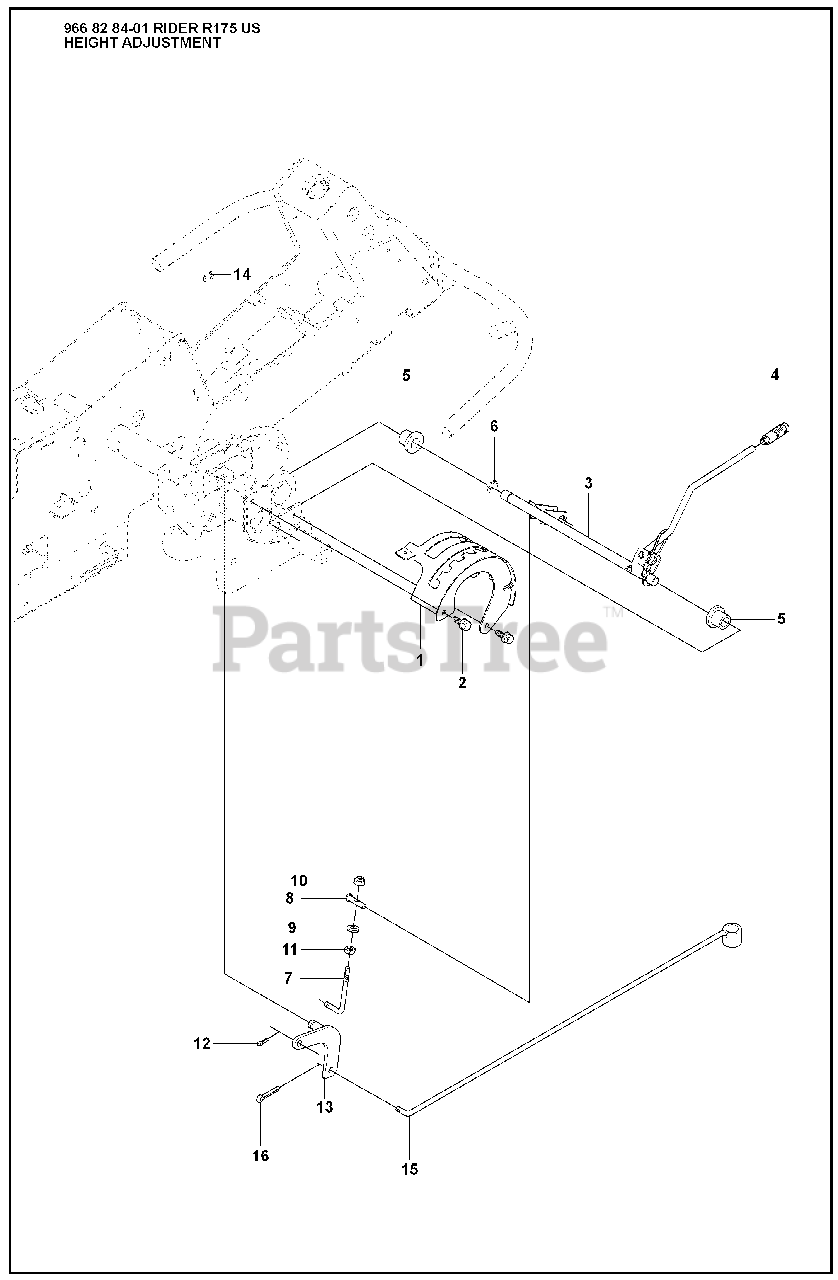

Height Adjustment Parts Diagram

  • Title

1

Husqvarna 535501401

CONTROL PLATE

$

$

Not available

2

Husqvarna 506570103

BOLT

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504734501

HEIGHT ADJUSTER

$145.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506542001

GEAR STICK KNOB

$

$

Not available

5

Husqvarna 506554301

BUSHING
(Superseded to 584871302)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 735312220

CIRCLIP

$

$

Not available

7

Husqvarna 506908201

LINKAGE

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506784601

Pin

$10.99

$

In Stock, only 1 left!

0

9

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

11

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

12

Husqvarna 721618301

SPLIT PIN

$

$

Not available

13

Husqvarna 506998301

BRACKET

$

$

Not available

14

Husqvarna 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506975101

CLUTCH ROD

$33.99

$

In Stock, only 1 left!

0

16

Husqvarna 721618301

SPLIT PIN

$

$

Not available
