R 175 - Husqvarna Swedish Riding Mower (2008-05) Hydrostat K46 EU Parts Diagram

Swedish Riding Mower

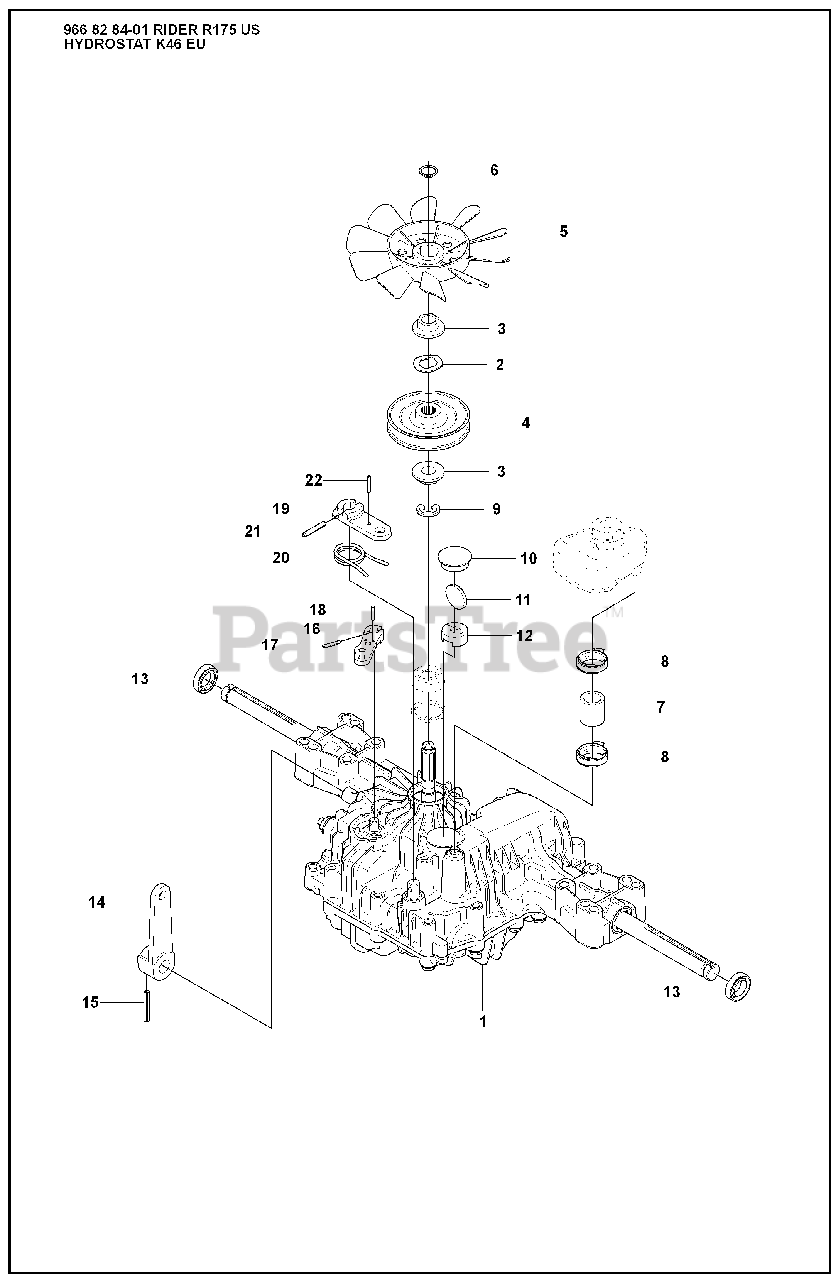

Hydrostat K46 EU Parts Diagram

  • Title

1

Husqvarna 506986301

HYDROSTAT 7A646024070

$1822.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506986501

WASHER **

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506986601

SLEEVE

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 502451901

PULLEY B

$48.99

$

In Stock, only 1 left!

0

5

Husqvarna 506986801

FAN.BLACK.1A646083070
(Superseded to 583350101)

$53.99

$

In Stock, Qty 6

0

6

Husqvarna 735311500

RETAINING RING **

$5.99

$

In Stock, Qty 11

0

7

Husqvarna 502451601

TUBE

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506987001

CLAMP
(Superseded to 505131102)

$7.99

$

In Stock, only 1 left!

0

9

Husqvarna 535402807

Clip

$

$

Not available

10

Husqvarna 535402832

PLUG

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535402829

MAGNET

$

$

Not available

12

Husqvarna 502452001

MAGNET HOLDER

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 535402837

RP SEAL.19, 19216334280
(Superseded to 583349301)

$37.99

$

In Stock, Qty 6

0

14

Husqvarna 502453201

CONTROL LEVER

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535402809

PIN

$

$

Not available

16

Husqvarna 535402817

ARM

$39.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535402816

PIN

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 535402833

PIN

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 535402838

ARM

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 535402839

RETURN SPRING

$

$

Not available

21

Husqvarna 535402840

PIN

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 535402841

PIN

$3.49

$

Usually ships in 3-10 days

0
