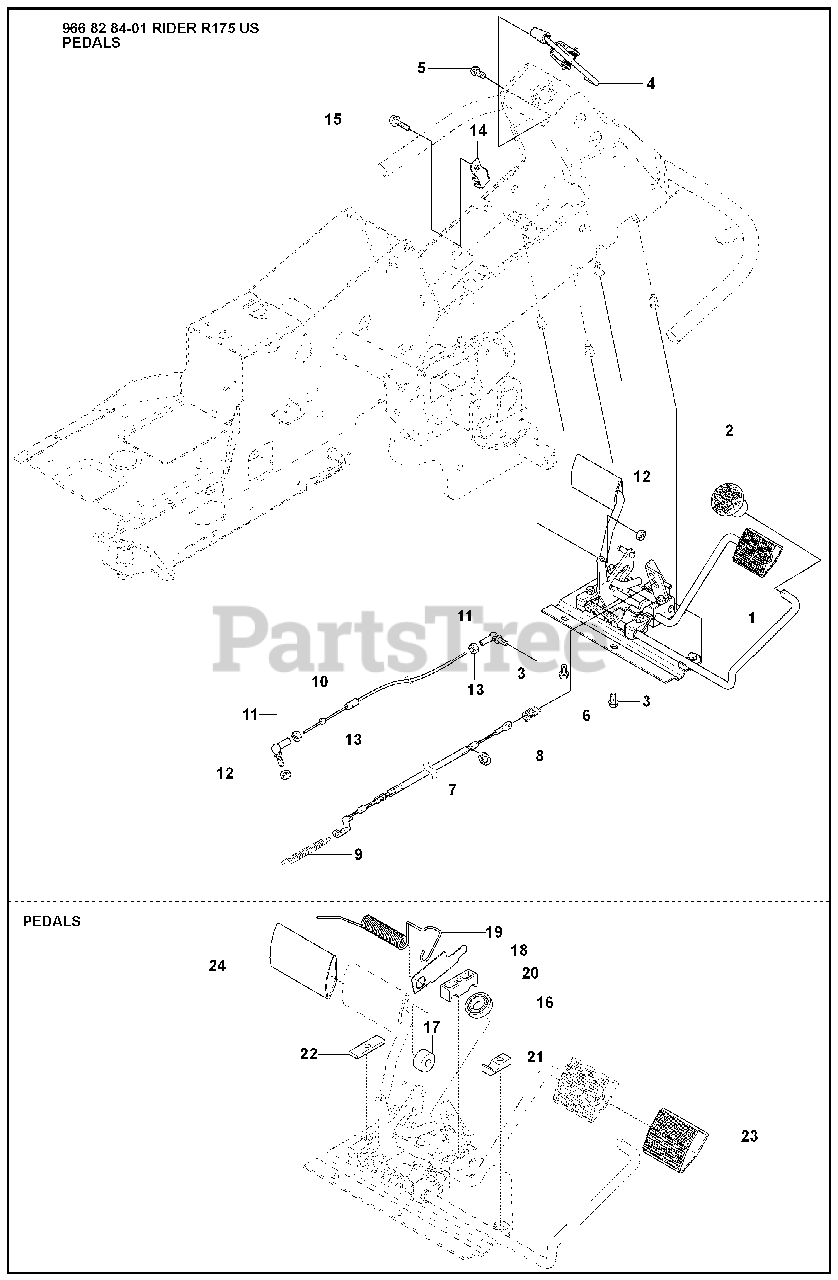

R 175 - Husqvarna Swedish Riding Mower (2008-05) Pedals Parts Diagram

Swedish Riding Mower

Pedals Parts Diagram

  • Title

1

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$226.99

$

Usually ships in 3-10 days

0

2

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$15.99

$

In Stock, only 1 left!

0

3

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

5

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506946301

SPRING

$13.99

$

In Stock, only 1 left!

0

7

Husqvarna 506992701

BRAKE WIRE

$53.99

$

In Stock, only 1 left!

0

8

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

9

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506827202

%WIRE
(Superseded to 582152001)

$120.99

$

In Stock, only 4 left!

0

11

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 1 left!

0

12

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 544341701

BRACKET
(Superseded to 522430801)

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

18

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

19

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 535478801

PEDAL RUBBER
(Superseded to 586966401)

$29.99

$

In Stock, only 4 left!

0

24

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$25.99

$

In Stock, Qty 5

0
