R 18 AWD (966414101) - Husqvarna Swedish Riding Mower (2010-07) PEDALS Parts Diagram

Swedish Riding Mower

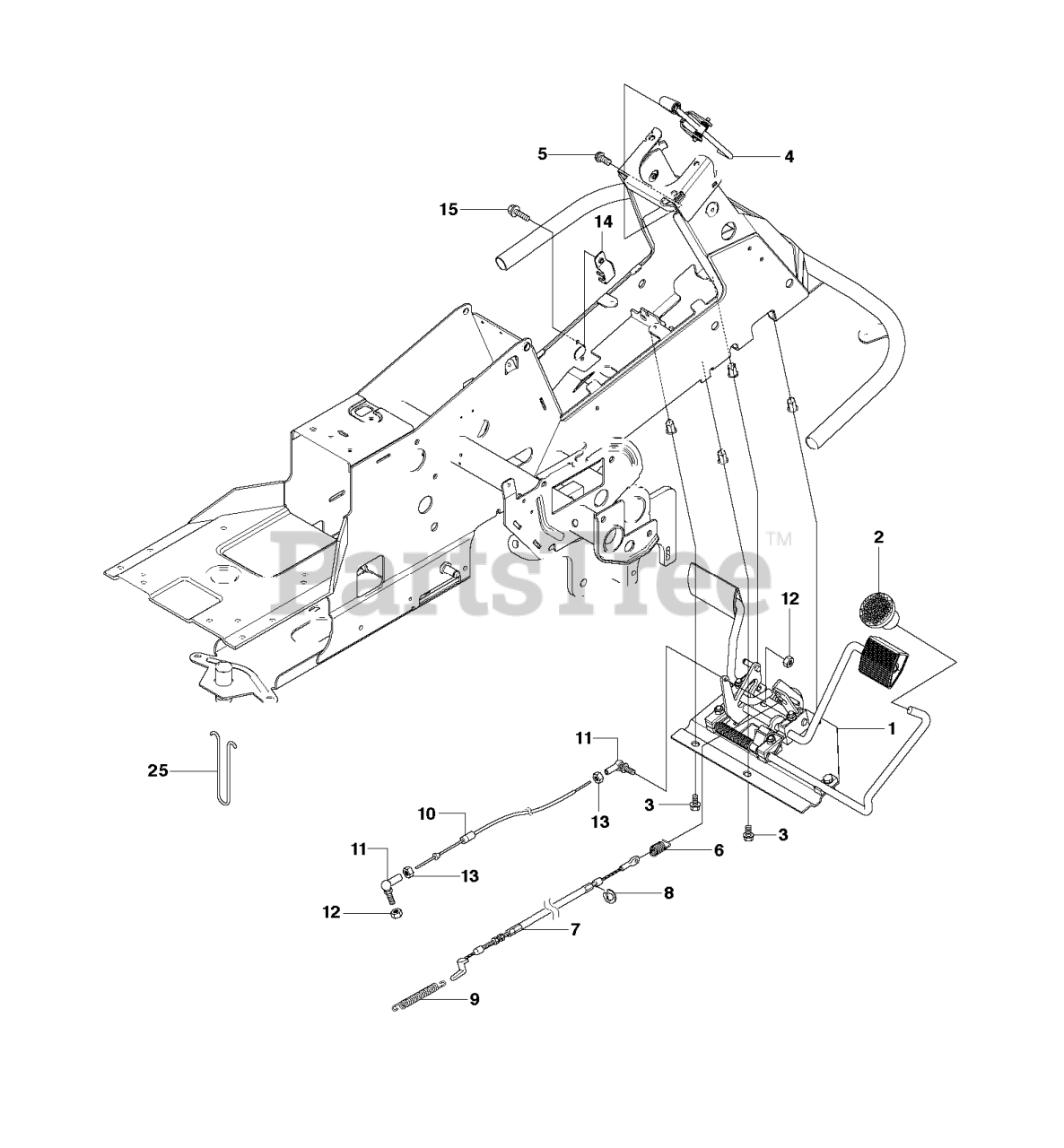

PEDALS Parts Diagram

  • Title

4

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

15

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

1

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$226.99

$

Usually ships in 3-10 days

0

12

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

2

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$15.99

$

In Stock, only 1 left!

0

3

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

14

Husqvarna 522430801

BRACKET

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506576402

CABLE HOLDER

$

$

Not available

5

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574411202

CONTROL CABLE

$102.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506946301

SPRING

$13.99

$

In Stock, only 1 left!

0

8

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

9

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 535489601

RP WIRE
(Superseded to 576712101)

$50.99

$

In Stock, only 1 left!

0
