R 18 Pro (953521901) - Husqvarna Swedish Riding Mower (2007-03) 103CM CUTTING DECK 4 Parts Diagram

Swedish Riding Mower

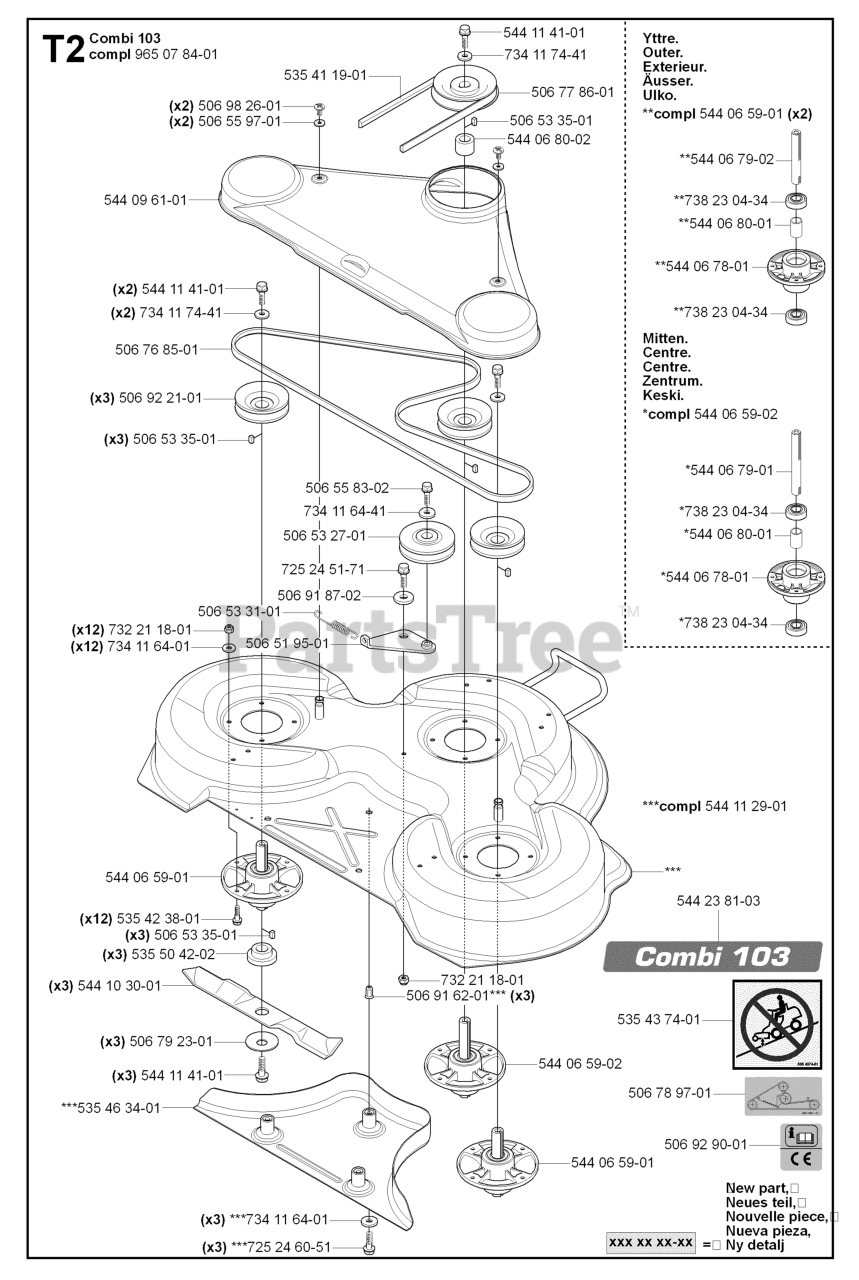

103CM CUTTING DECK 4 Parts Diagram

  • Title

506 55 97-01

Husqvarna 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

506 92 90-01

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

506 53 35-01

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 78 97-01

Husqvarna 506789701

Decal

$

$

Not available

544 10 30-01

Husqvarna 544103001

BLADE
(Superseded to 504188210)

$34.99

$

In Stock, Qty 5

0

535 41 19-01

Husqvarna 535411901

BELT
(Superseded to 594978001)

$84.99

$

In Stock, Qty 7

0

506 53 35-01

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

738 23 04-34

Husqvarna 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

535 42 38-01

Husqvarna 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

506 79 23-01

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$10.99

$

Usually ships in 3-10 days

0

725 24 51-71

Husqvarna 725245171

SCREW

$2.49

$

In Stock, Qty 5

0

544 11 41-01

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

506 98 26-01

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

506 91 62-01

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

734 11 74-41

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

544 06 59-02

Husqvarna 544065902

SPINDLE ASSY
(Superseded to 576384101)

$94.99

$

Usually ships in 3-10 days

0

544 06 80-01

Husqvarna 544068001

SPACER

$

$

Not available

544 11 29-01

Husqvarna 544112901

HOUSING

$

$

Not available

544 06 59-01

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$94.99

$

Usually ships in 3-10 days

0

506 77 86-01

Husqvarna 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

544 11 41-01

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 53 31-01

Husqvarna 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

535 50 42-02

Husqvarna 535504202

ADAPTER

$31.99

$

Usually ships in 3-10 days

0

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

544 06 79-02

Husqvarna 544067902

SHAFT

$

$

Not available

506 51 95-01

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

544 06 78-01

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

544 06 59-01

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$94.99

$

Usually ships in 3-10 days

0

506 91 87-02

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

506 55 83-02

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

544 06 79-01

Husqvarna 544067901

SHAFT

$

$

Not available

535 43 74-01

Husqvarna 535437401

DECAL

$

$

Not available

506 76 85-01

Husqvarna 506768501

BELT
(Superseded to 589530601)

$66.99

$

In Stock, Qty 11

0

734 11 74-41

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

965 07 84-01

Husqvarna 965078401

DECK COMBI 103
(Superseded to 965078601)

$

$

Not available

535 46 34-01

Husqvarna 535463401

PLUG
(Superseded to 544449201)

$74.99

$

In Stock, only 1 left!

0

725 24 60-51

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

544 23 81-03

Husqvarna 544238103

DECAL

$

$

Not available

506 92 21-01

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

544 11 41-01

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

544 06 80-02

Husqvarna 544068002

SPACER

$14.99

$

In Stock, only 3 left!

0

506 53 27-01

Husqvarna 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0

544 09 61-01

Husqvarna 544096101

COVER

$62.99

$

Usually ships in 3-10 days

0

734 11 64-41

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0
