R 204513E (84327) - Snapper 20" Walk-Behind Mower, 4.5hp Wheels, Guards & Axles Parts Diagram

20" Walk-Behind Mower, 4.5hp

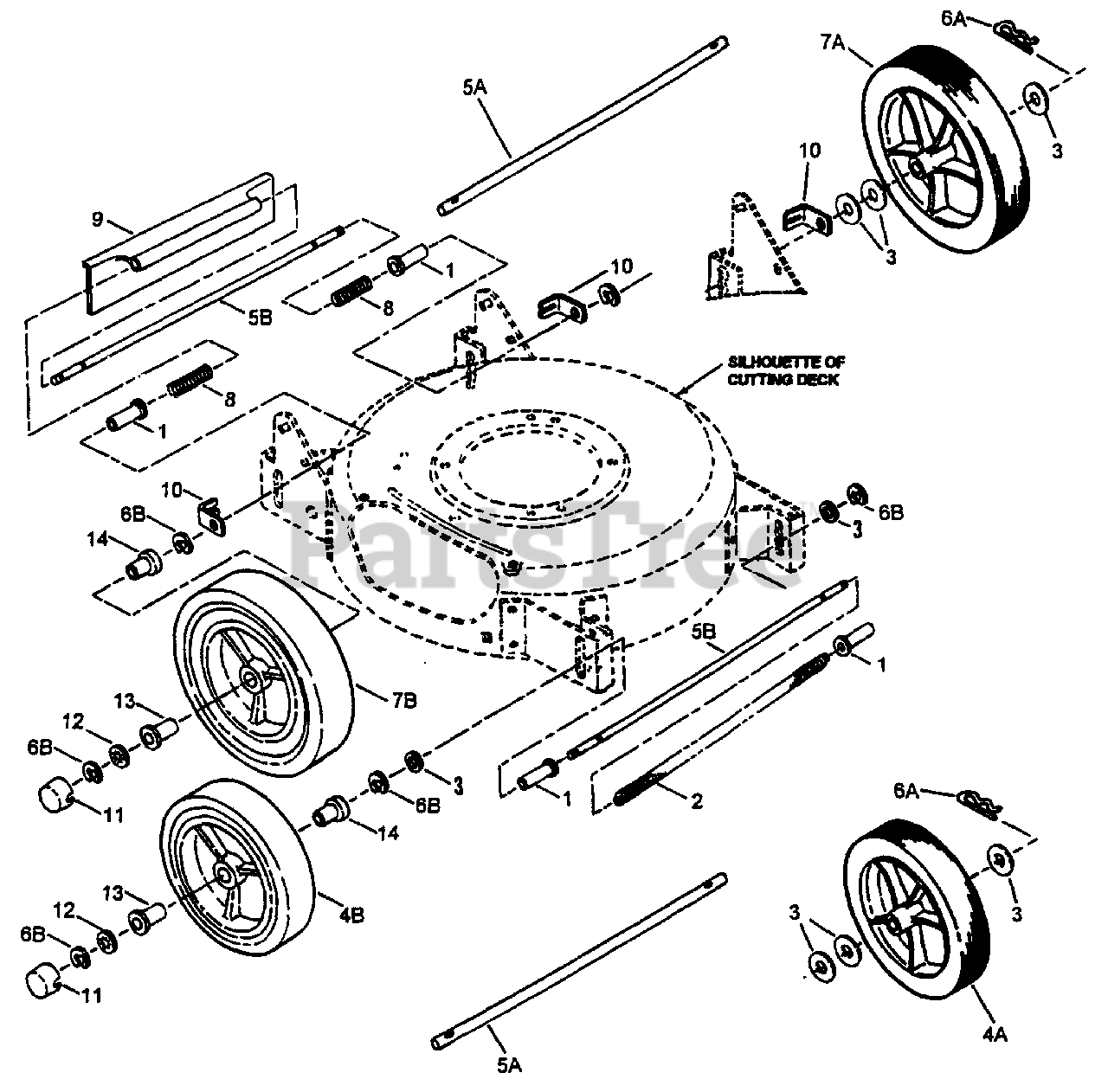

Wheels, Guards & Axles Parts Diagram

  • Title

1

Snapper 7013320

BUSHING, Height Adj.
(Superseded to 7013320YP)

$14.99

$

Usually ships in 2-12 days

0

2

Snapper 7013307

SPRING, Front Axle
(Superseded to 7013307YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4A

Snapper 7026160

WHEEL, Front, 7 x 1.50"
(Superseded to 760714MA)

$24.99

$

Usually ships in 2-12 days

0

4B

Snapper 7029473

WHEEL, Fr., 7 x 1.75" Ball Brg.
(Superseded to 7029473YP)

Note: USED ON R204513E MODEL ONLY.

$20.99

$

Usually ships in 2-12 days

0

5A

Snapper 7034357

AXLE, 3/8 x 19-5/8
(Superseded to 7034357YP)

$15.99

$

Usually ships in 2-12 days

0

5B

Snapper 7035326

AXLE, 3/8" x 19-3/8"
(Superseded to 7035326YP)

$13.99

$

Usually ships in 2-12 days

0

6A

Snapper 7091193

PIN, 1/16" x 15/16 Hair
(Superseded to 7091193YP)

Note: USED ON R204513E MODEL ONLY.

$5.99

$

Usually ships in 2-12 days

0

6B

Snapper 7090870

RING, 3/8 Retaining

$

$

Not available

7A

Snapper 7029399

WHEEL, Rear 8 x 1.75"

$

$

Not available

7B

Snapper 7029472

WHEEL, Rear 8 x 2.00 Ball Brg.
(Superseded to 7500540YP)

Note: USED ON R204513E MODEL ONLY.

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 7013027

SPRING, Rear Guard
(Superseded to 7013027YP)

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7018444

GUARD, Rear Foot
(Superseded to 7018444YP)

$23.99

$

In Stock, only 1 left!

0

10

Snapper 7032118

CLIP, Rear Guard
(Superseded to 7032118YP)

$6.49

$

In Stock, only 2 left!

0

11

Snapper 7012323

HUB-CAP
(Superseded to 7012323YP)

Note: USED ON R204513E MODEL ONLY.

$3.49

$

In Stock, Qty 6

0

12

Snapper 7013946

RETAINER, Push-On
(Superseded to 7013946YP)

Note: USED ON R204513E MODEL ONLY.

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7035360

BUSHING, Wheel
(Superseded to 7035360YP)

Note: USED ON R204513E MODEL ONLY.

$74.99

$

Usually ships in 2-12 days

0

14

Snapper 7035331

BUSHING, Wheel
(Superseded to 7035331YP)

Note: USED ON R204513E MODEL ONLY.

$3.49

$

Usually ships in 2-12 days

0
