R 213 C - Husqvarna Swedish Riding Mower (Original) CHASSIS REAR Parts Diagram

Swedish Riding Mower

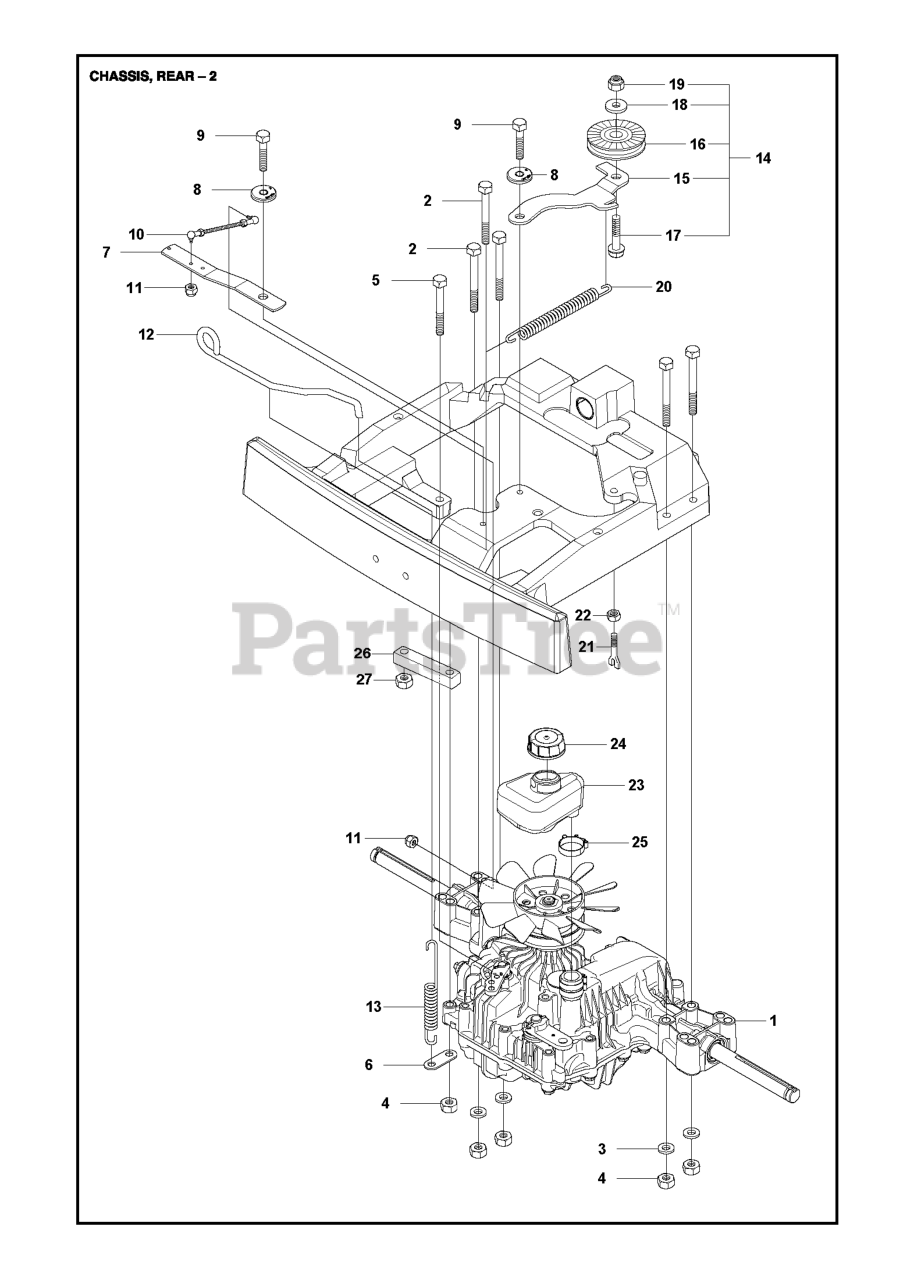

CHASSIS REAR Parts Diagram

  • Title

27

Husqvarna 731231801

NUT
(Superseded to 695008078)

Note: For 967150401, 966756901

$

$

Not available

6

Husqvarna 506599301

CONNECTOR

$

$

Not available

23

Husqvarna 506989001

TANK

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506918702

WASHER
(Superseded to 584288604)

Note: For 967150401, 966756901

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 506987201

BRACKET

Note: For 967150401, 966756901

$

$

Not available

13

Husqvarna 506834301

SPRING

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 584288604

Washers

Note: For 967846601, 967291002, 967291001

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 506988001

TANK CAP
(Superseded to 590324701)

Note: For 967150401, 966756901

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506987501

ROD

$43.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732211401

LOCKNUT M5

$3.49

$

In Stock, only 3 left!

0

3

Husqvarna 734116401

WASHER BRB 8.4X17

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 725245171

SCREW

Note: For 967150401, 966756901

$1.99

$

In Stock, only 4 left!

0

25

Husqvarna 505131102

HOSE CLAMP 20-32

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 506988201

Rod

$

$

Not available

17

Husqvarna 725245551

SCREW
(Superseded to 725245571)

Note: For 967291002, 967291001, 967150401, 966756901

$5.49

$

In Stock, Qty 9

0

15

Husqvarna 506988501

TENSIONER
(Superseded to 588740401)

Note: For 967150401, 966756901

$20.99

$

Usually ships in 3-10 days

0

19

Husqvarna 732211801

LOCKNUT M8

$3.49

$

In Stock, Qty 6

0

7

Husqvarna 579596801

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 731232001

Nut

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

16

Husqvarna 506946901

PULLEY

$43.99

$

In Stock, only 2 left!

0

20

Husqvarna 506988601

SPRING
(Superseded to 594924101)

$4.99

$

In Stock, Qty 6

0

1

Husqvarna 506986301

HYDROSTAT 7A646024070

$1481.99

$

Usually ships in 3-10 days

0

2

Husqvarna 725246751

Hex Bolt

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 734116441

SPACER

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 590324701

TANK CAP ASSY

Note: For 967846601, 967291002, 967291001

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 725245571

SCREW

Note: For 967846601, 967291002, 967291001

$5.49

$

In Stock, Qty 9

0

5

Husqvarna 725246251

SCREW

Note: For 967846601, 967291002, 967291001

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506988401

TENSIONER

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725245171

SCREW

Note: For 967846601, 967291002, 967291001

$1.99

$

In Stock, only 4 left!

0

15

Husqvarna 588740401

BELT TENSIONER ARM

Note: For 967846601, 967291002, 967291001

$20.99

$

Usually ships in 3-10 days

0

21

Husqvarna 506988801

SCREW

$

$

Not available

5

Husqvarna 725245951

SCREW

Note: For 967150401, 966756901

$6.99

$

In Stock, only 4 left!

0
