R 216 AWD (967291202) - Husqvarna Swedish Riding Mower (2018) TRANSMISSION 2 Parts Diagram

Swedish Riding Mower

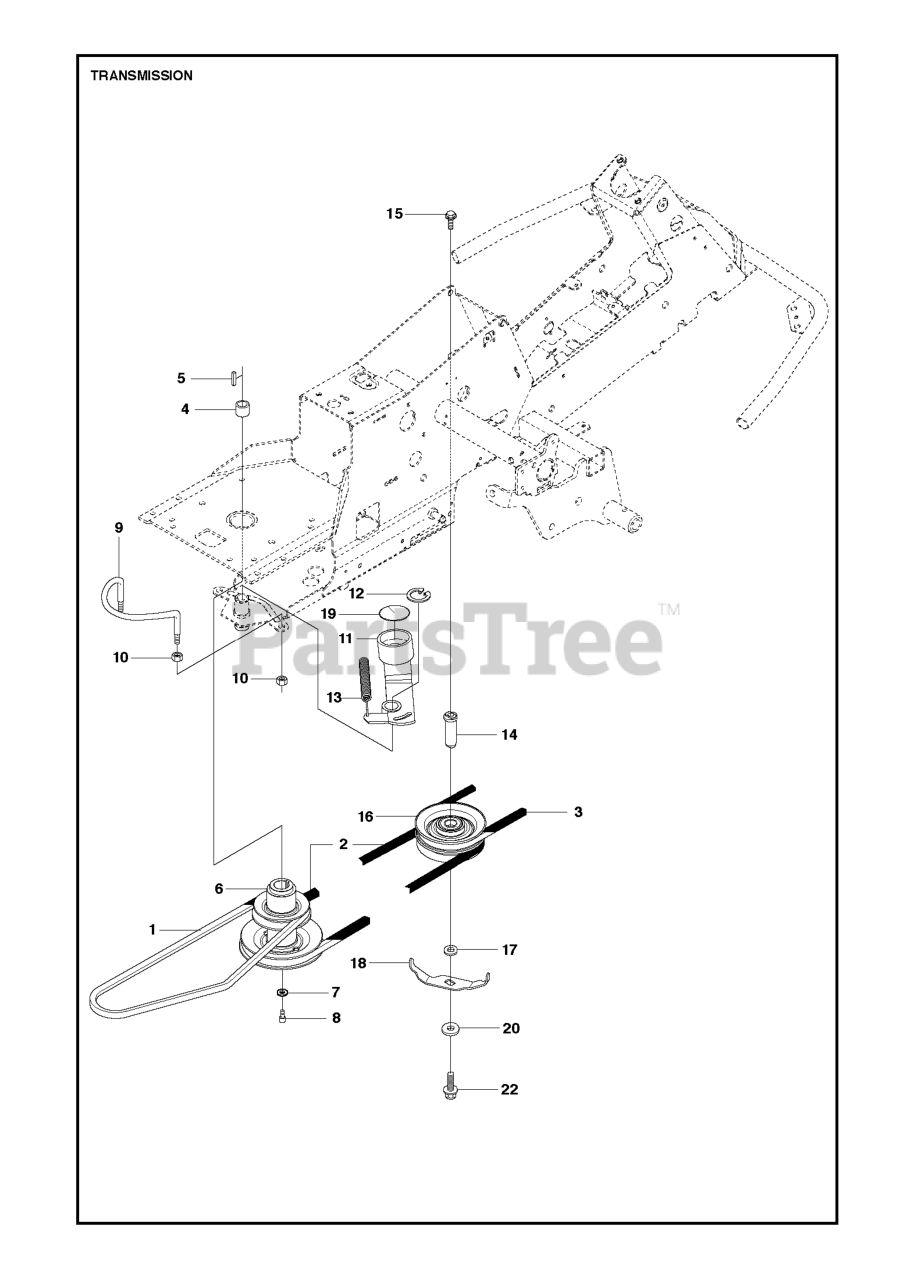

TRANSMISSION 2 Parts Diagram

  • Title

10

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535482401

PULLEY

$83.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587425201

$

$

Currently unavailable

12

Husqvarna 735312600

RETAINING RING SGA 25

$3.99

$

In Stock, Qty 10

0

14

Husqvarna 581916401

SHAFT

$27.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586320201

$

$

Currently unavailable

17

Husqvarna 725249371

Screw M10x25

$1.99

$

In Stock, only 1 left!

0

15

Husqvarna 506675402

BOLT

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 535484401

TENSIONER

$71.99

$

In Stock, only 2 left!

0

22

Husqvarna 586320401

$

$

Currently unavailable

8

Husqvarna 506556002

SCREW

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 589530401

BELT

$

$

Not available

19

Husqvarna 535485001

Seals

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506665601

SPRING

$47.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506509201

SPACER

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506555901

KEY

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544405301

BELT GUIDE

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589530001

BELT
(Superseded to 594977801)

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589531201

BELT

$33.99

$

In Stock, Qty 5

0

16

Husqvarna 535482201

PULLEY

$74.99

$

In Stock, only 2 left!

0

7

Husqvarna 506597501

WASHER

$

$

Not available
