R 216 T AWD - Husqvarna Swedish Riding Mower (Original) TRANSMISSION 2 Parts Diagram

Swedish Riding Mower

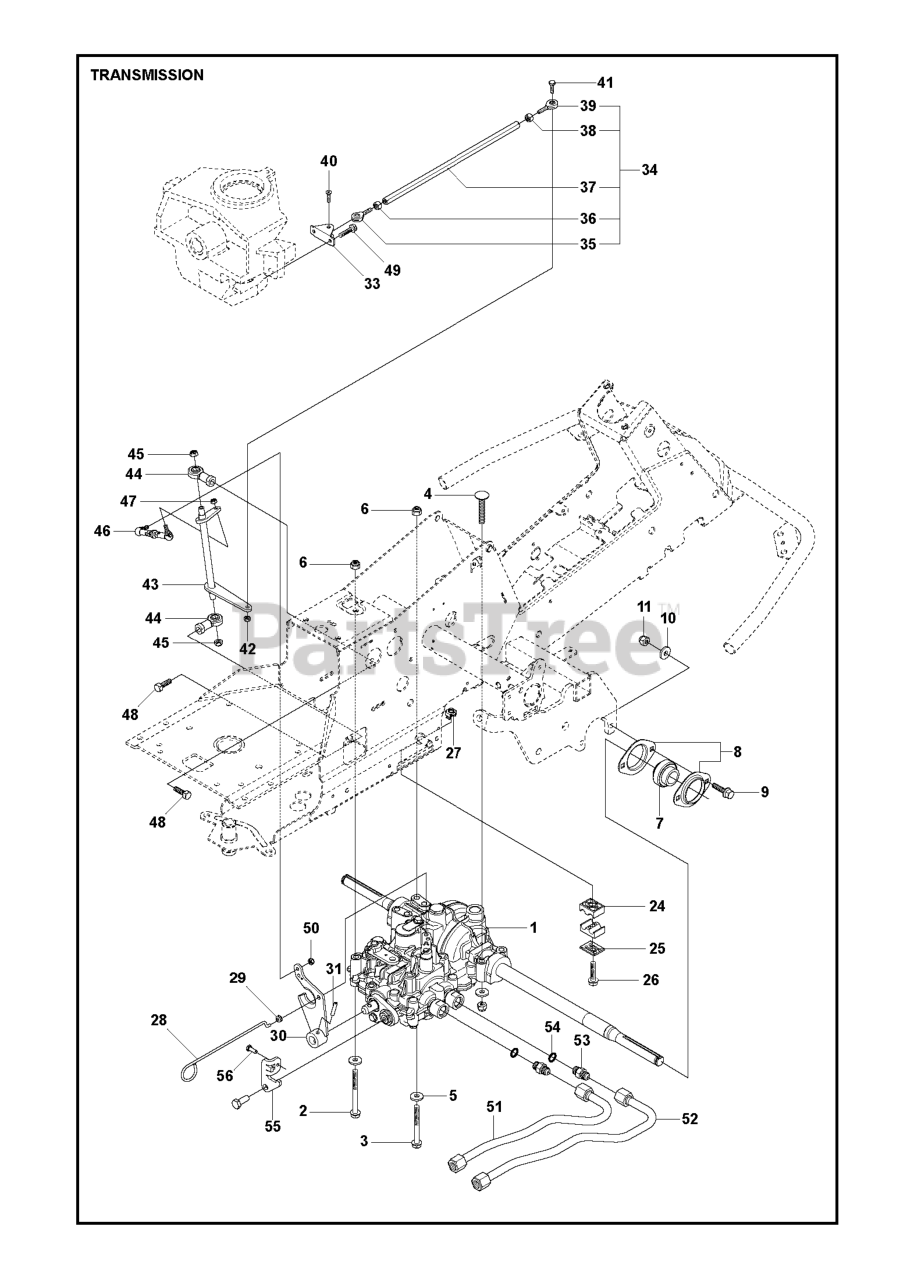

TRANSMISSION 2 Parts Diagram

  • Title

26

Husqvarna 506570107

SCREW EHHFM

$

$

Not available

33

Husqvarna 535492802

BRACKET

$

$

Not available

44

Husqvarna 506951701

LINK

$102.99

$

Usually ships in 3-10 days

0

45

Husqvarna 732211801

LOCKNUT M8

Note: For 967847101

$5.99

$

In Stock, Qty 13

0

4

Husqvarna 535423803

SCREW

$

$

Not available

9

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 544441901

ADJUSTING ROD

$22.99

$

In Stock, only 1 left!

0

34

Husqvarna 544456703

ROD

$102.99

$

Usually ships in 3-10 days

0

47

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$4.99

$

In Stock, Qty 12

0

35

Husqvarna 535486602

LINK

$

$

Not available

28

Husqvarna 535499701

ARM

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 725246451

SCREW

$1.49

$

Usually ships in 3-10 days

0

40

Husqvarna 544841701

SCREW

$

$

Not available

56

Husqvarna 725236861

SCREW
(Superseded to 535475212)

$5.99

$

In Stock, only 1 left!

0

36

Husqvarna 503221018

NUT

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

39

Husqvarna 535486601

LINK

$

$

Not available

2

Husqvarna 725246751

Hex Bolt

$1.49

$

Usually ships in 3-10 days

0

6

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

41

Husqvarna 725237071

SCREW

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 544807901

HYDRAULIC PIPE

$62.99

$

Usually ships in 3-10 days

0

53

Husqvarna 535426806

PIPE FITTING

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 721434701

PIN

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 544008902

BEARING

$

$

Not available

42

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

38

Husqvarna 731231601

NUT

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 578291901

LEVER

$

$

Not available

25

Husqvarna 544373802

COVER PLATE

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 725249371

Screw M10x25

$1.49

$

Usually ships in 3-10 days

0

45

Husqvarna 535475212

SCREW EHHFM

Note: For 967820401

$5.99

$

In Stock, only 1 left!

0

24

Husqvarna 544373302

PIPE CLAMP

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 592954301

NEEDS DESCRIPTION

$

$

Currently unavailable

49

Husqvarna 725236651

SCREW

$4.99

$

In Stock, only 3 left!

0

37

Husqvarna 535486503

ROD

$

$

Not available

29

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

Note: For 967820401

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 544009002

BEARING HOUSING

$

$

Not available

50

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$4.99

$

In Stock, Qty 12

0

51

Husqvarna 544808001

HYDRAULIC PIPE

$62.99

$

Usually ships in 3-10 days

0

55

Husqvarna 578047801

BRACKET

$

$

Not available

1

Husqvarna 575484301

TRANSMISSION SWE

$1252.99

$

Usually ships in 3-10 days

0

27

Husqvarna 544811701

CAGE NUT

$

$

Not available

11

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

43

Husqvarna 592910901

NEEDS DESCRIPTION

$

$

Currently unavailable
