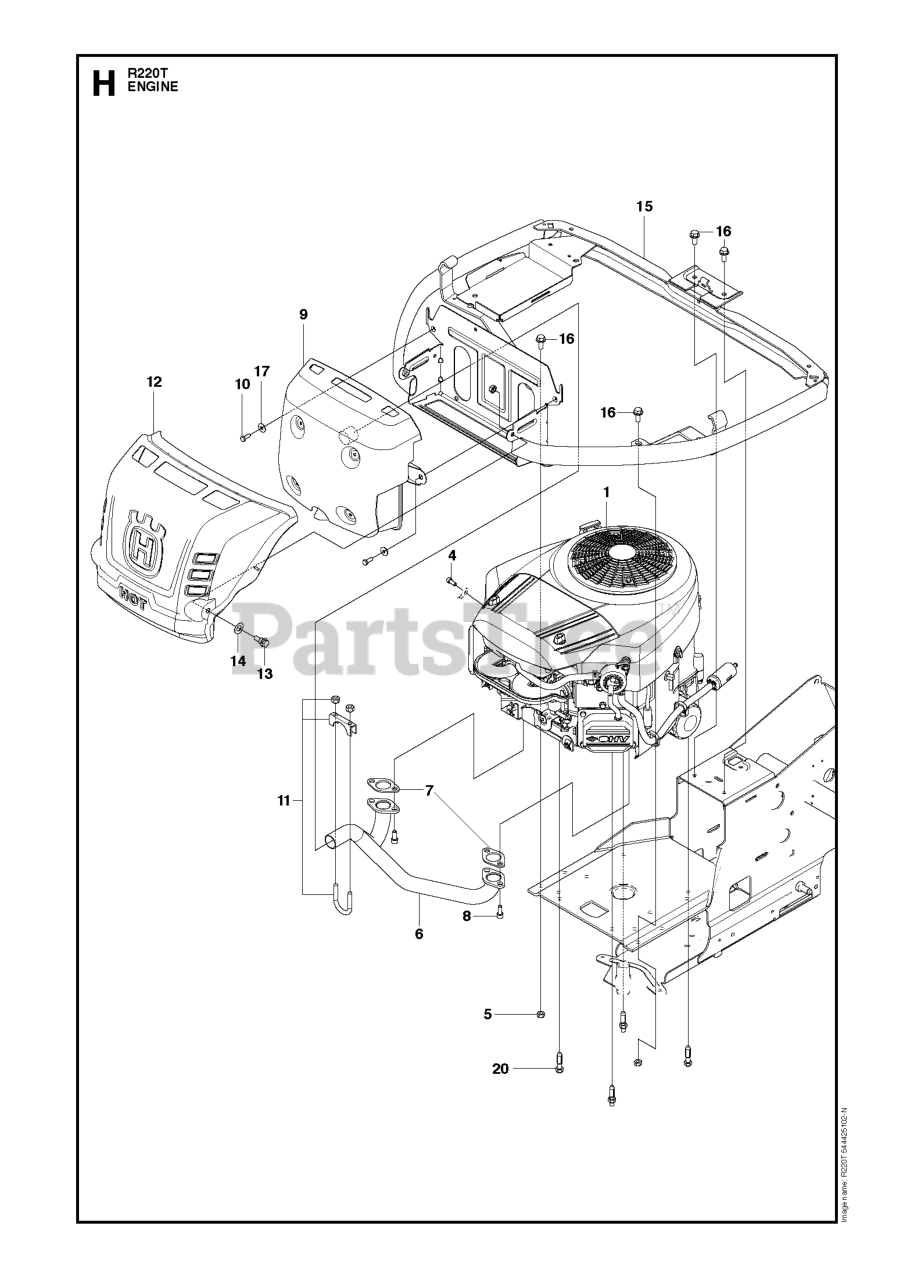

R 220 T (966785701) - Husqvarna Swedish Riding Mower (2012-03) ENGINE Parts Diagram

Swedish Riding Mower

ENGINE Parts Diagram

  • Title

1

Husqvarna 578327401

$

$

Currently unavailable

4

Husqvarna 578878901

SCREW

$

$

Not available

5

Husqvarna 732211801

LOCKNUT M8

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 578058601

MANIFOLD

$65.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506914501

FLANGE

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506556301

BOLT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577813601

MUFFLER

$566.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725236461

SCREW

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 579481601

RP HEAT SHIELD
(Superseded to 580991301)

$155.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506597401

BOLT

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 506839401

SPRINGWASHER

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577849101

ENGINE FRAME

$359.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506570104

BOLT

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 734115441

Washer, M6
(Superseded to 531003379)

$5.99

$

In Stock, Qty 18

0

20

Husqvarna 578207501

STUD SCREW

$

$

Not available
