R-3 (1600399) - Homelite Tiller, 3hp Frame, Handles and Controls Group (3836I03) Parts Diagram

Tiller, 3hp

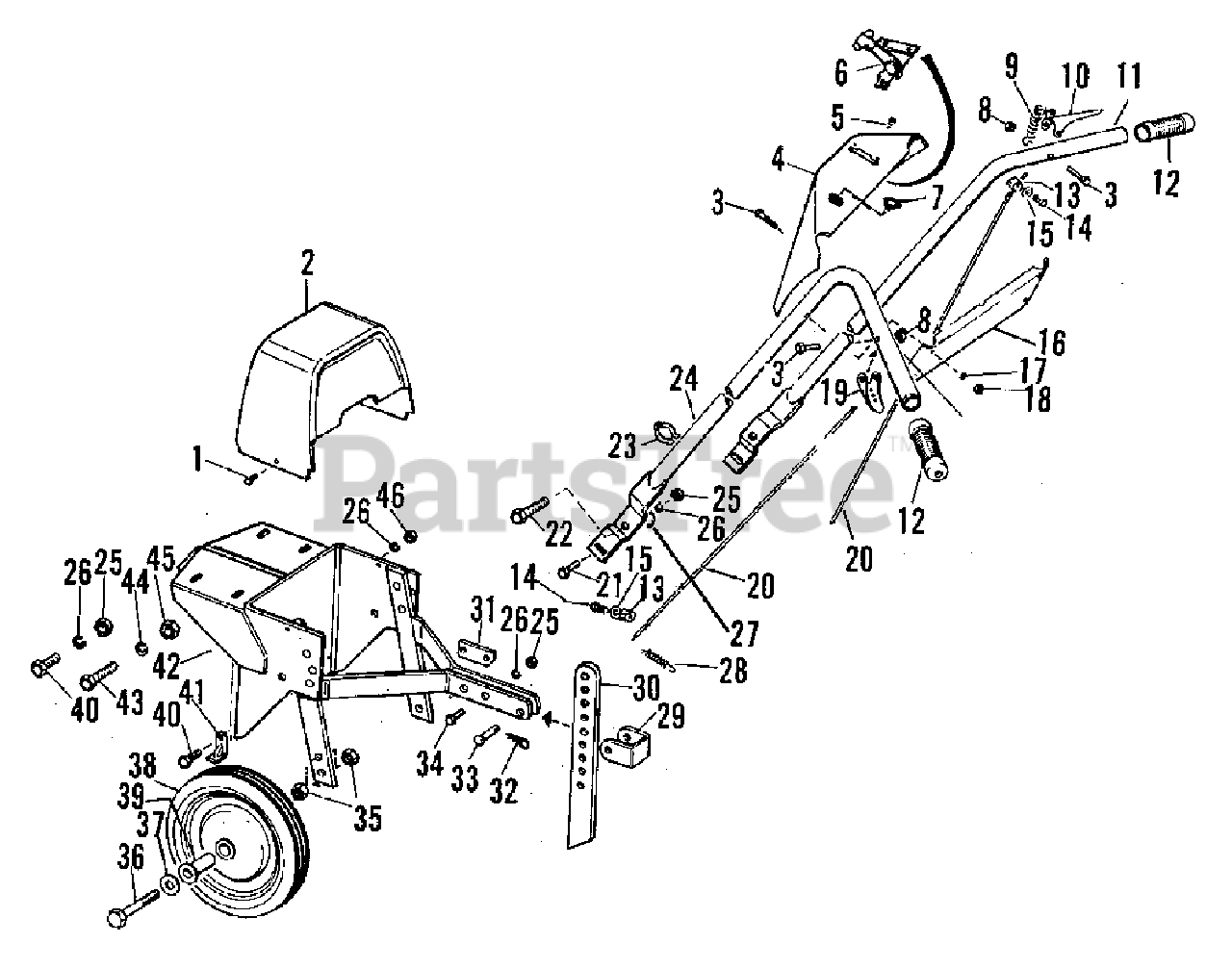

Frame, Handles and Controls Group (3836I03) Parts Diagram

  • Title

1

Simplicity LM-09274-28

SCREW, Hex, 1/4-20 x 3/8

$

$

Not available

2

Simplicity LM-01703-59

COVER

$

$

Not available

3

Simplicity LM-09182-40

SCREW, Hex, Cap, 1/4-20 x 1-1/2

$

$

Not available

4

Simplicity LM-01182-37

HOUSING, Control

$

$

Not available

5

Simplicity LM-09231-88

SCREW, Hex, 1/4-20 x 1/2

$

$

Not available

6

Simplicity LM-01182-35

CONTROL, Throttle

$

$

Not available

7

Simplicity LM-01641-91

PLUG, Button

$

$

Not available

8

Simplicity LM-09233-58

NUT, Hex, 1/4-20

$

$

Not available

9

Simplicity LM-01184-95

SPRING

$

$

Not available

10

Simplicity LM-01184-31

GRIP, Clutch (Forward)

$

$

Not available

11

Simplicity LM-01184-67

HANDLE, R.H.

$

$

Not available

12

Simplicity LM-01065-58

GRIP, Handle Bar

$

$

Not available

13

Simplicity LM-01610-92

CLAMP, Wire

$

$

Not available

14

Simplicity LM-09287-22

SCREW, Set Square, 10-24 x 5/8

$

$

Not available

15

Simplicity LM-09239-06

WASHER, Flat, 3/16

$

$

Not available

16

Simplicity LM-01182-98

COVER, Handle Bar

$

$

Not available

17

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

18

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

19

Simplicity LM-01184-49

GRIP, Clutch (Reverse)

$

$

Not available

20

Simplicity LM-01729-24

CABLE

$

$

Not available

21

Simplicity LM-09287-28

SCREW, Hex, 3/8-16 x 1

$

$

Not available

22

Simplicity LM-09287-27

SCREW, Hex, Cap, 3/8-16 x 1-1/4

$

$

Not available

23

Simplicity LM-80611-08

CLIP, Cable

$

$

Not available

24

Simplicity LM-01184-66

HANDLE, L.H.

$

$

Not available

25

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

26

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

27

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

28

Simplicity LM-01210-37

SPRING

$

$

Not available

29

Simplicity LM-01184-47

CLAMP

$

$

Not available

30

Simplicity LM-01180-81

BAR, Depth

$

$

Not available

31

Simplicity LM-01182-07

PLATE, Stop

$

$

Not available

32

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

33

Simplicity LM-01052-49

PIN, Inner

$

$

Not available

34

Simplicity LM-09193-60

SCREW, Hex, Cap, 3/8-16 x 1-1/2

$

$

Not available

35

Simplicity LM-09137-44

NUT, Hex, 1/2-13

$

$

Not available

36

Simplicity LM-09085-29

SCREW, Hex, Cap, 1/2-13 x 3-1/4

$

$

Not available

37

Simplicity LM-09184-31

WASHER, Flat

$

$

Not available

38

Simplicity LM-01180-30

WHEEL & TIRE

$

$

Not available

39

Simplicity LM-01181-32

BUSHING, Wheel

$

$

Not available

40

Simplicity LM-09081-27

SCREW, Hex, Cap, 3/8-16 x 3/4

$

$

Not available

41

Simplicity LM-01703-60

SCRAPER

$

$

Not available

42

Simplicity LM-01708-79

BODY

$

$

Not available

43

Simplicity LM-09204-88

SCREW, Hex, Cap, 7/16-20 x 1-1/4

$

$

Not available

44

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

45

Simplicity LM-09139-01

NUT, Hex, 7/16-20

$

$

Not available

46

Simplicity LM-09174-21

NUT, Hex, 3/8-16

$

$

Not available
