R 316 Ts AWD - Husqvarna Swedish Riding Mower (Original) CHASSIS REAR 2 Parts Diagram

Swedish Riding Mower

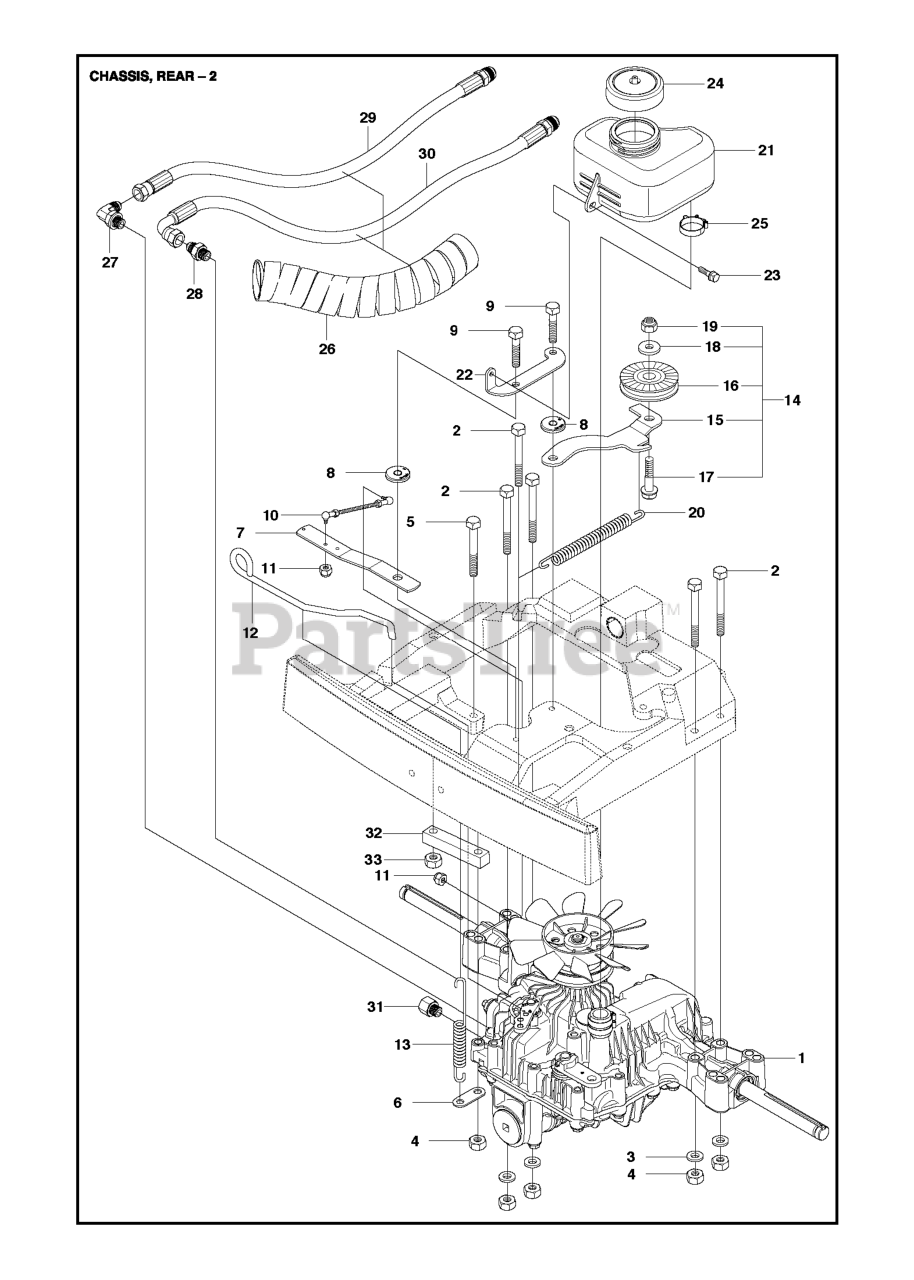

CHASSIS REAR 2 Parts Diagram

  • Title

19

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 502244801

HANDLE HALF (L)

$87.99

$

In Stock, only 1 left!

0

32

Husqvarna 522546201

TUBE

$

$

Not available

17

Husqvarna 503221013

NUT

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 522483001

RP CORD
(Superseded to 505181701)

$6.99

$

In Stock, Qty 9

0

6

Husqvarna 505181501

WASHER

$3.99

$

In Stock, Qty 6

0

1

Husqvarna 522519001

HANDLE ASSY

$120.99

$

In Stock, Qty 14

0

35

Husqvarna 537226201

CONTACT SPRING

$

$

Not available

10

Husqvarna 502246001

RETAINER

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 502245301

HOLDER, HANDLE

$17.99

$

In Stock, Qty 9

0

33

Husqvarna 575993901

WIRING ASSY 130BT

$30.99

$

Usually ships in 3-10 days

0

22

Husqvarna 725234451

SCREW

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 735583501

CLIP

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 537226301

CONTACT SPRING

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 522546101

CABLE

$31.99

$

In Stock, only 1 left!

0

16

Husqvarna 537141203

SHAFT PIVOT

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544275901

HOLDER TH
(Superseded to 511797501)

$

$

Not available

3

Husqvarna 502244901

HANDLE HALF (R)

$47.99

$

Usually ships in 3-10 days

0

8

Husqvarna 502245501

LEVER STOP

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 503216618

SCREW

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 537174201

SPRING

$6.49

$

In Stock, Qty 10

0

9

Husqvarna 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 504800301

KNOB
(Superseded to 502204001)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 537373901

SPRING RUBBER
(Superseded to 591176401)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 502245401

TRIGGER 848L5W34C0

$6.49

$

In Stock, Qty 9

0

13

Husqvarna 505567901

SPRING

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 502641701

PLATE

$3.99

$

In Stock, Qty 6

0
