R 320 AWD (967291501) - Husqvarna Swedish Riding Mower (2015) 44 /112CM CUTTING DECK Parts Diagram

Swedish Riding Mower

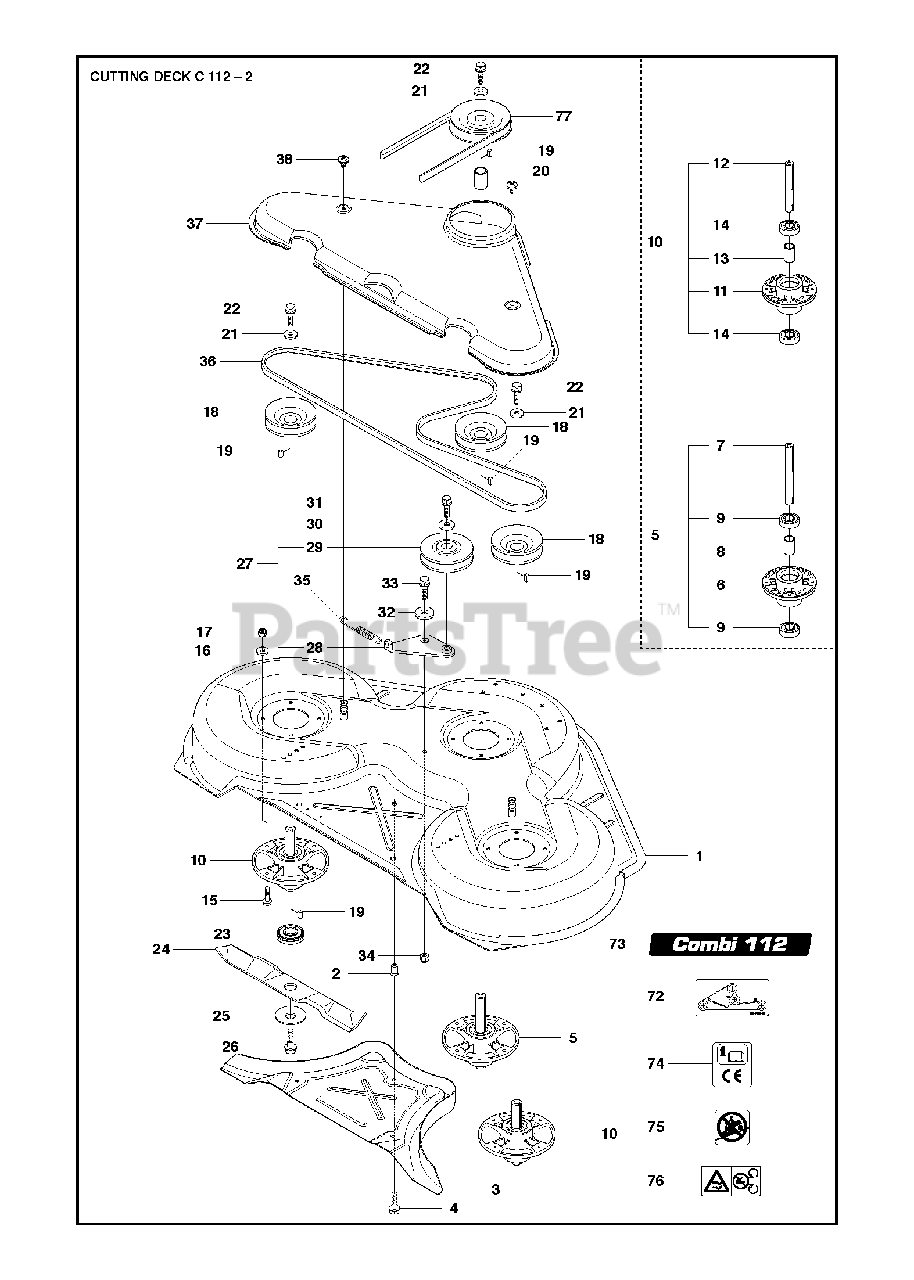

44 /112CM CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 574209501

CUTTING DECK

$

$

Not available

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544449301

PLUG

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 576384101

BLADE HOUSING ASSY

$94.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576384201

BEARING HOUSING

Note: . 5

$

$

Not available

7

Husqvarna 576384301

SHAFT

Note: . 5

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576384401

SPACING SLEEVE

Note: . 5

$

$

Not available

9

Husqvarna 738230434

BEARING

Note: . 5

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 576384102

BLADE HOUSING ASSY

$94.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576384201

BEARING HOUSING

Note: . 10

$

$

Not available

12

Husqvarna 576384302

SHAFT

Note: . 10

$

$

Not available

13

Husqvarna 576384401

SPACING SLEEVE

Note: . 10

$

$

Not available

14

Husqvarna 738230434

BEARING

Note: . 10

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

17

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

18

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

19

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 544068002

Spacer

$14.99

$

In Stock, only 3 left!

0

21

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

22

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

23

Husqvarna 535504202

ADAPTER

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 544102810

$

$

Currently unavailable

25

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

27

Husqvarna 585359801

$

$

Currently unavailable

28

Husqvarna 585359901

Note: . 27

$

$

Currently unavailable

29

Husqvarna 506532701

PULLEY

Note: . 27

$69.99

$

In Stock, only 1 left!

0

30

Husqvarna 734116441

SPACER

Note: . 27

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 586320401

Note: . 27

$

$

Currently unavailable

32

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

33

Husqvarna 725245171

Screw

$2.49

$

In Stock, Qty 5

0

34

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

35

Husqvarna 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

36

Husqvarna 535411901

BELT
(Superseded to 594978001)

$84.99

$

In Stock, Qty 6

0

37

Husqvarna 544096201

BELT COVER

$62.99

$

Usually ships in 3-10 days

0

38

Husqvarna 544400501

SCREW

$5.99

$

In Stock, Qty 8

0

72

Husqvarna 506789701

DECAL

$

$

Not available

73

Husqvarna 544238105

LABEL

$

$

Not available

74

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

75

Husqvarna 535437401

DECAL

$

$

Not available

76

Husqvarna 574510001

DECAL

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0
